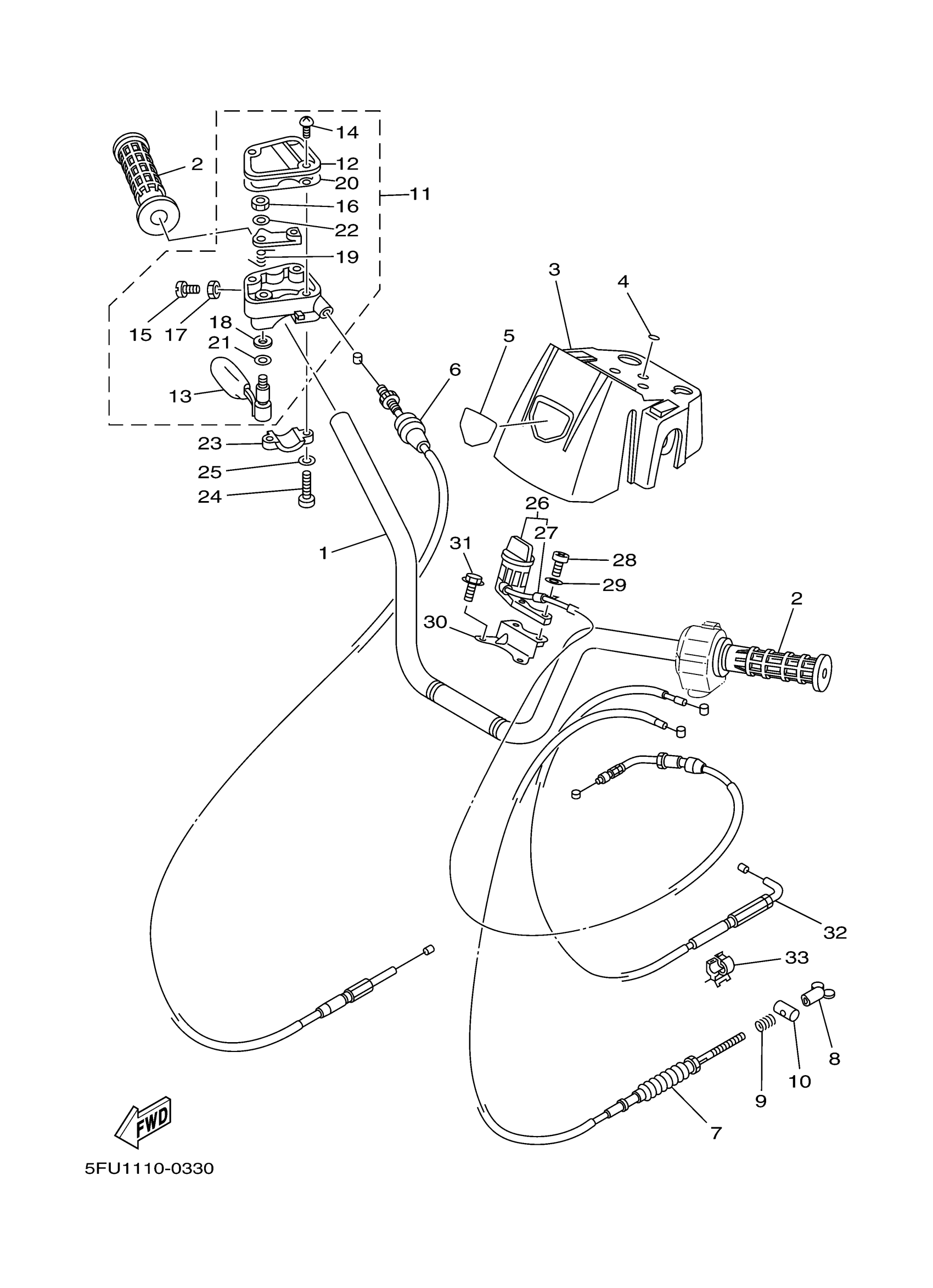

Yamaha YFM400FHM (BIG BEAR BUCKMASTER) 5FU5 2000 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5FU-F6111-12-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$17.77

3

PROTECTOR,HANDLEBAR

5FU-F6124-01-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$13.40

5

EMBLEM 3D

5FU-F6232-00-00

Unavailable

6

CABLE, THROTTLE 1

5FU-26311-01-00

Unavailable

7

CABLE, BRAKE

5FU-26341-00-00

$43.71

8

NUT, AJUSTING

20E-26343-00-00

$20.80

9

SPRING, COMPRESSION (29U)

90501-10782-00

$5.75

10

PIN 1562723700

90249-12008-00

$5.75

11

THROTTLE LEVER ASSY

4KB-26250-12-00

Unavailable

12

. CAP, GEAR

4KB-2628F-00-00

Unavailable

13

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

14

SCREW(3HE)

90149-04278-00

$0.73

15

SCREW, PAN HEAD

98517-05020-00

$1.26

16

NUT, U

95617-05100-00

Unavailable

17

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

18

OIL SEAL (9X15X4-256)

93104-09025-00

Unavailable

19

SPRING

1NV-26304-00-00

Unavailable

20

GASKET

4KB-2628G-00-00

Unavailable

21

WASHER

1NV-26129-00-00

Unavailable

22

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

23

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

24

SCREW, PAN HEAD

98517-05020-00

$1.26

25

WASHER(1RW)

92907-05600-00

Unavailable

26

REV. LEVER ASSY.

4KB-26150-10-00

Unavailable

27

CABLE, CONTROL 1

4KB-2637E-02-00

Unavailable

28

SCREW, PAN HEAD(4MY)

98507-05018-00

Unavailable

29

WASHER(1RW)

92907-05600-00

Unavailable

30

BRACKET

5FU-F612E-00-00

Unavailable

31

BOLT, FLANGE

95817-06012-00

Unavailable

32

CABLE, STARTER 1

5FU-26331-00-00

Unavailable

33

CLAMP

90464-10842-00

Unavailable
