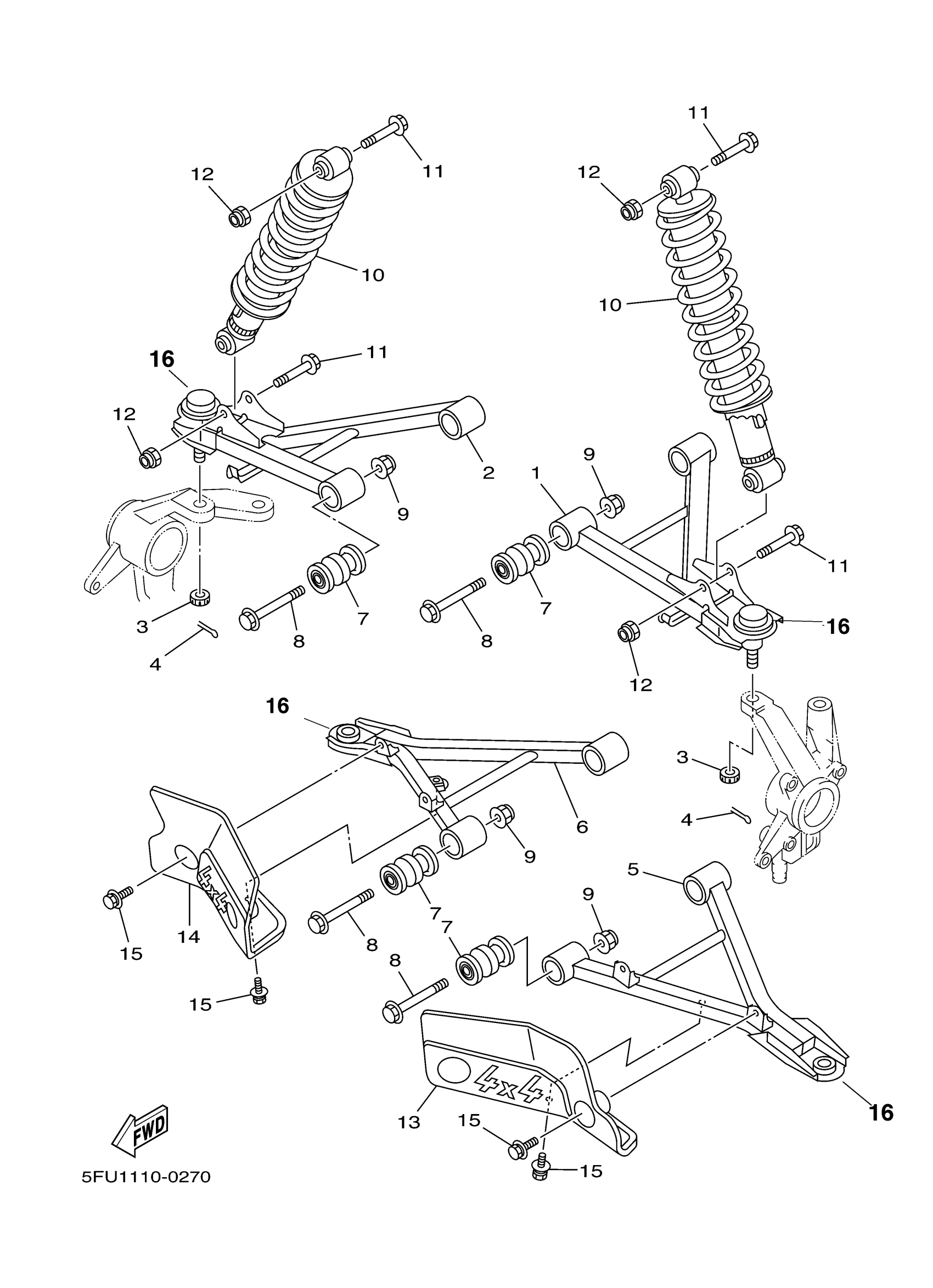

Yamaha YFM400FHM (BIG BEAR BUCKMASTER) 5FU5 2000 FRONT SUSPENSION WHEEL Diagram

FRONT UPPER ARM COMP. (LEFT)

5FU-F3540-00-00

Unavailable

FRONT UPPER ARM COMP. (RIGHT)

5FU-F3550-00-00

Unavailable

NUT, CASTLE

90171-12001-00

$2.66

PIN, COTTER

91490-25020-00

$2.73

ARM, FRONT LOWER LH.

5FU-F357A-00-00

Unavailable

ARM, FRONT LOWER RH.

5FU-F358A-00-00

Unavailable

BUSH

2HR-23526-00-00

$17.03

BOLT, FLANGE

90105-10267-00

$7.23

NUT, SELF-LOCKING

90185-10012-00

$2.78

SHOCK ABSORBER ASSY

5FU-F3350-10-00

Unavailable

BOLT, FLANGE

90105-10841-00

$1.75

NUT, SELF-LOCKING

90185-10012-00

$2.78

COVER, UNDER 1

5FU-F3123-01-00

Unavailable

COVER, LOWER 2

5FU-F3133-01-00

$7.68

BOLT, HEXA W/W

90119-06018-00

$5.75

BALL JOINT 1

37S-23549-01-00

Unavailable
