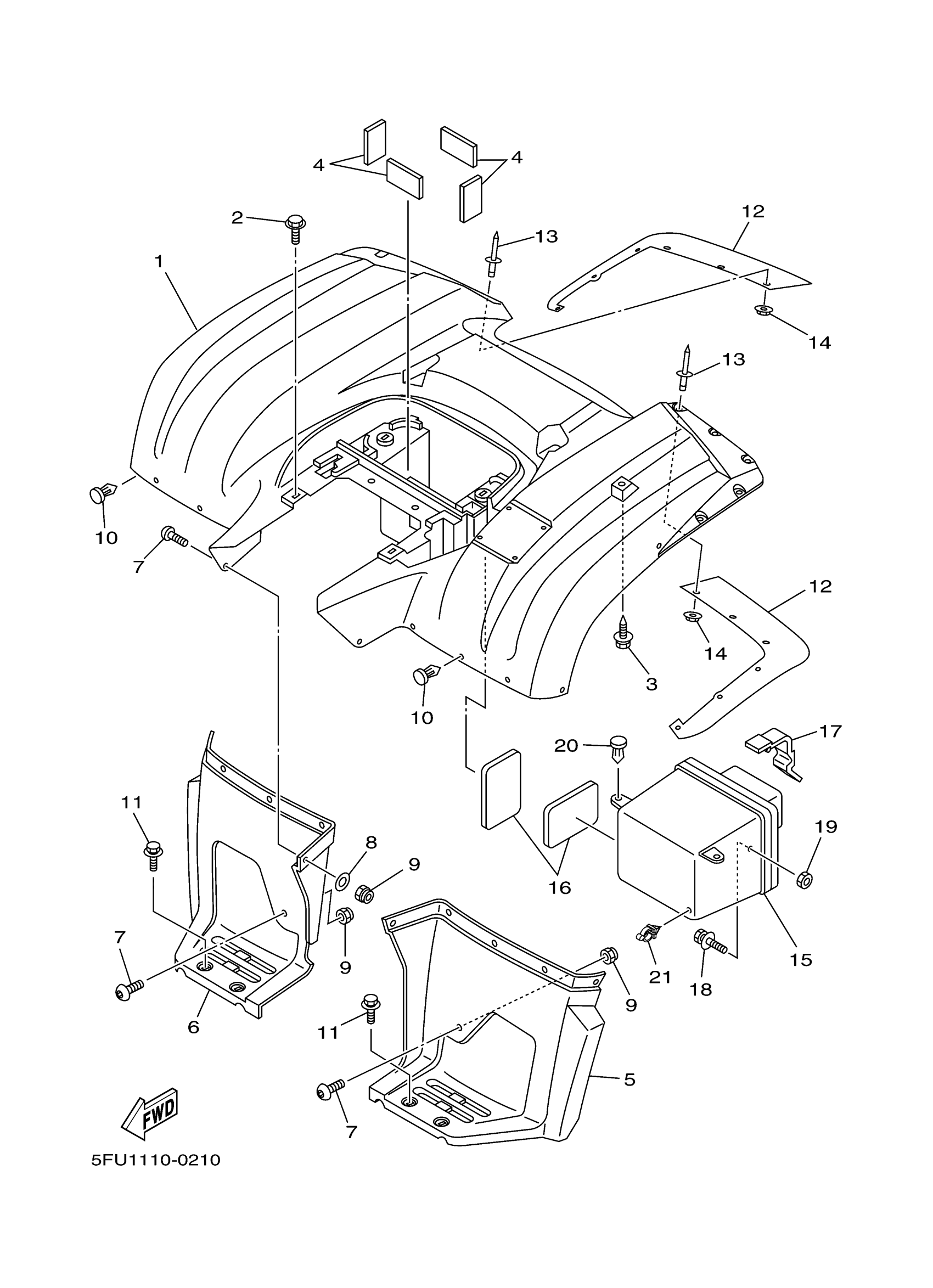

Yamaha YFM400FHM (BIG BEAR BUCKMASTER) 5FU5 2000 REAR FENDER Diagram

#

Description
Price

1

REAR FNDR ASSY (BUCK)

5FU-F1600-A9-00

Unavailable

2

BOLT, WITH WASHER(81H)

90119-06118-00

$8.49

3

BOLT, WITH WASHER

90119-06226-00

$8.49

4

DAMPER, SIDE COVER

4XE-F4145-00-00

Unavailable

5

FLAP

5FU-F1621-00-00

Unavailable

6

FLAP

5FU-F1691-00-00

Unavailable

7

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

8

WASHER,PLATE

90201-068M4-00

$2.13

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

RIVET

90269-08813-00

Unavailable

11

BOLT, WITH WASHER

90119-06152-00

$7.49

12

FLAP 3

5FU-F162H-00-00

Unavailable

13

RIVET, BLIND

90267-60840-00

Unavailable

14

WASHER,PLATE

90201-068M4-00

$2.13

15

BOX COMP.

4XE-F160A-01-00

Unavailable

16

PROTECTOR

5FU-21652-00-00

Unavailable

17

BAND

59V-21646-00-00

Unavailable

18

BOLT, WITH WASHER

90119-06226-00

$8.49

19

NUT, W/ WASHER

95707-06600-00

Unavailable

20

RIVET

90269-08813-00

Unavailable

21

CLAMP

90464-12830-00

Unavailable
