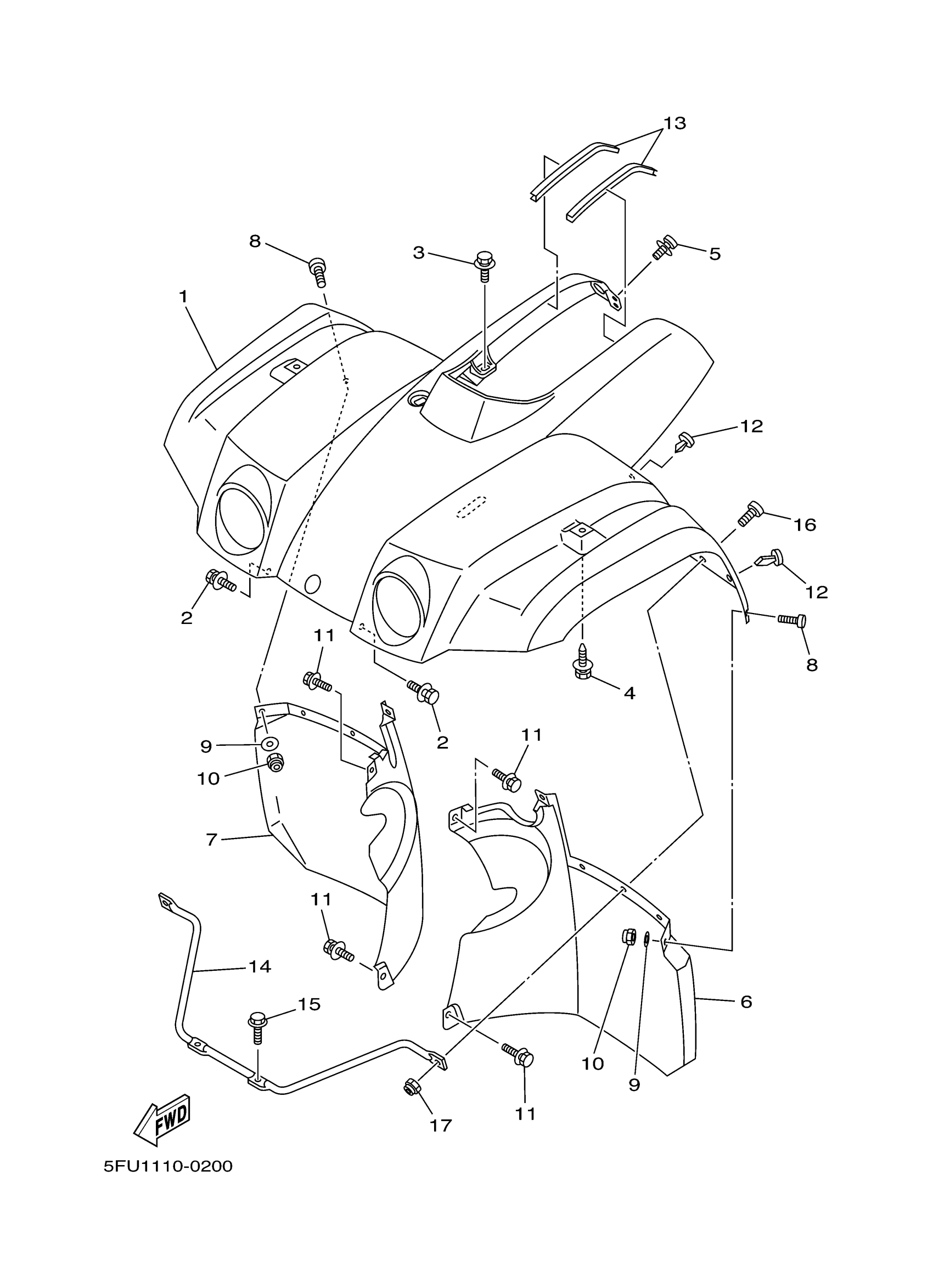

Yamaha YFM400FHM (BIG BEAR BUCKMASTER) 5FU5 2000 FRONT FENDER Diagram

FRT FNDR (BUCKMASTER)

5FU-F1500-A9-00

Unavailable

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

BOLT, HEXA W/W

90119-06018-00

$8.49

BOLT, WITH WASHER

90119-06226-00

$8.49

SCREW, W/WASHER (14T)

90159-06059-00

Unavailable

FLAP, FRONT FENDER

5FU-F1521-00-00

Unavailable

FLAP 2

5FU-F1561-00-00

Unavailable

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

WASHER,PLATE

90201-068M4-00

$2.13

NUT, SELF-LOCKING

95617-06100-00

$8.49

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

RIVET

90269-08813-00

Unavailable

MOLE, SIDE COVER 1

5FU-2171L-00-00

$7.99

STAY, FENDER 1

5FU-F1513-00-00

Unavailable

BOLT, FLANGE

95817-06016-00

$2.75

BOLT,HEX SKT HEAD

90111-06814-00

$3.76

NUT, SELF-LOCKING

95617-06100-00

$8.49
