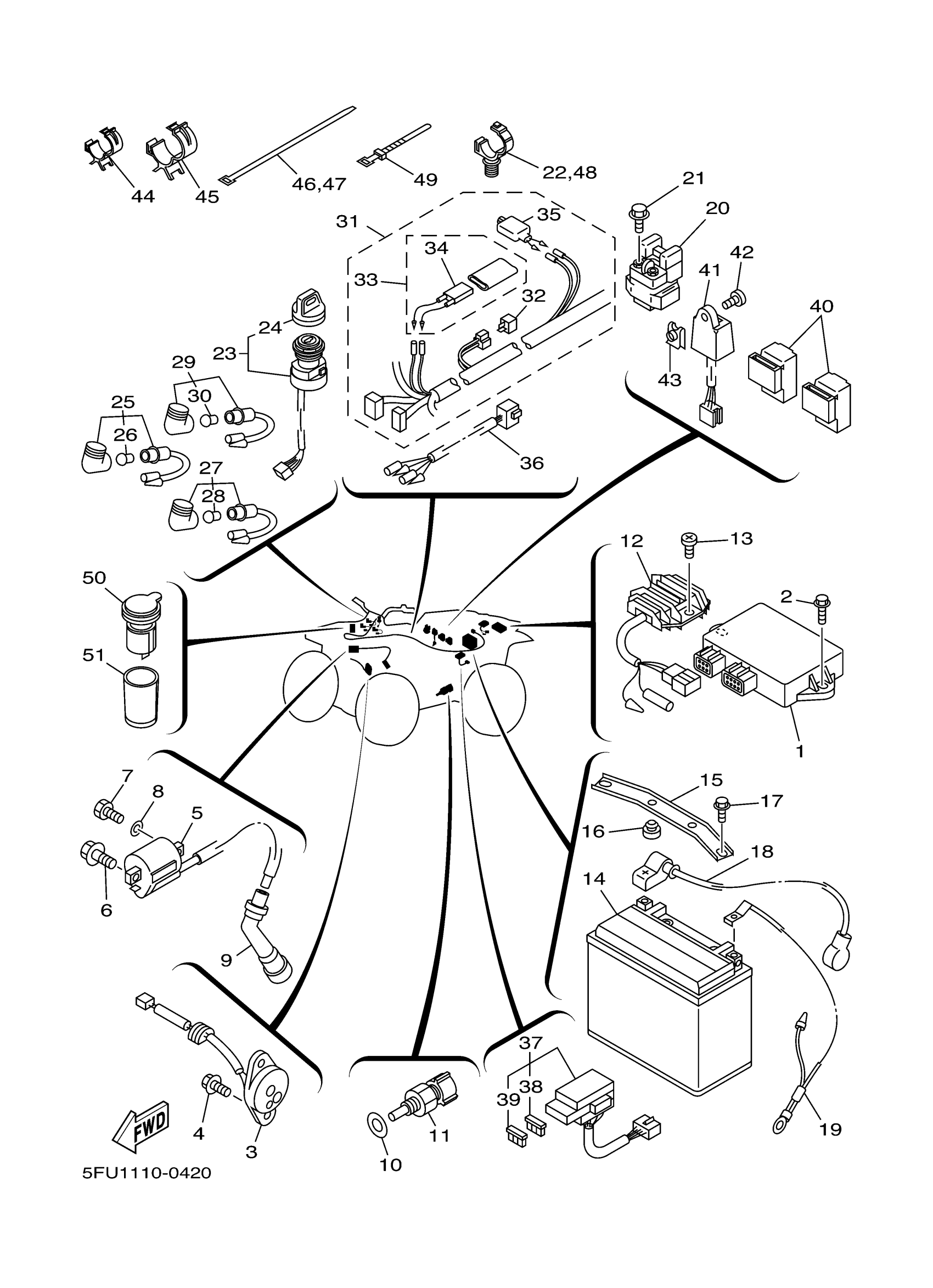

Yamaha YFM400FHM (BIG BEAR BUCKMASTER) 5FU5 2000 ELECTRICAL 1 Diagram
#
1
C.D.I. UNIT ASSY
5FU-85540-00-00
Unavailable
6
BOLT
90109-06865-00
Unavailable
14
BATTERY ASSY (YUASA YTX20L-BS)
YTX-20LBS-00-00
Unavailable
15
BRACKET, BATTERY
5FU-H2128-01-00
Unavailable
16
DAMPER, LOCATING 1
22W-24181-00-00
Unavailable
18
WIRE, PLUS LEAD
5FU-82115-00-00
Unavailable
19
WIRE, MINUS LEAD
5FU-82116-00-00
Unavailable
20
STARTER RELAY ASSY (RC19-015)
4SV-81940-12-00
Unavailable
21
BOLT, FLANGE
95022-06008-00
Unavailable
22
CLAMP
90464-12830-00
Unavailable
23
MAIN SWITCH ASSY
4GB-82510-12-00
Unavailable
24
CAP, KEY
3HN-82579-00-00
Unavailable
25
PILOT LIGHT ASSY
24W-83530-10-00
Unavailable
26
BULB (12V-3.4W)
123-83516-21-00
Unavailable
27
PILOT LIGHT ASSY
52G-83530-10-00
Unavailable
28
BULB (12V-3.4W)
123-83516-21-00
Unavailable
29
PILOT LIGHT ASSY
2HR-83530-01-00
Unavailable
30
BULB (12V-3.4W)
123-83516-21-00
Unavailable
31
WIRE HARNESS ASSY
5FU-82590-00-00
Unavailable
32
DIODE ASSY
3WP-81980-00-00
Unavailable
33
CIRCUIT BREAKER ASSY
5GT-82180-00-00
Unavailable
34
THERMO SWITCH ASSY
4GB-82560-00-00
Unavailable
35
. THERMOSWITCH ASSY
5FU-82560-00-00
Unavailable
36
WIRE, SUB LEAD
5FU-82509-00-00
Unavailable
37
FUSE BOX ASSY
5FU-82170-00-00
Unavailable
38
FUSE (10A)
42X-82151-00-00
Unavailable
39
FUSE (12V 15A)
36Y-82151-00-00
Unavailable
40
RELAY ASSY (29U-93)
29U-81950-93-00
Unavailable
41
MOTOR CONTROL UNIT ASSY
4SH-86510-10-00
Unavailable
42
SCREW, BINDING
98907-06016-00
Unavailable
43
NUT, SPRING(4ES)
90183-06069-00
Unavailable
44
CLAMP
90464-20835-00
Unavailable
45
CLAMP
90464-25843-00
Unavailable
46
CLAMP
90464-48800-00
Unavailable
47
CLAMP
90464-48800-00
Unavailable
48
CLAMP
90464-12830-00
Unavailable
49
BAND, SWITCH CORD
437-83936-01-00
Unavailable
50
TERMINAL ASSY
5FU-H1920-10-00
Unavailable
51
COVER,CONNECTER
5FU-H2599-01-00
Unavailable
52
KEY, BLANK (A-TYPE)
90890-56001-00
Unavailable
53
KEY, BLANK (B-TYPE)
90890-56002-00
Unavailable
