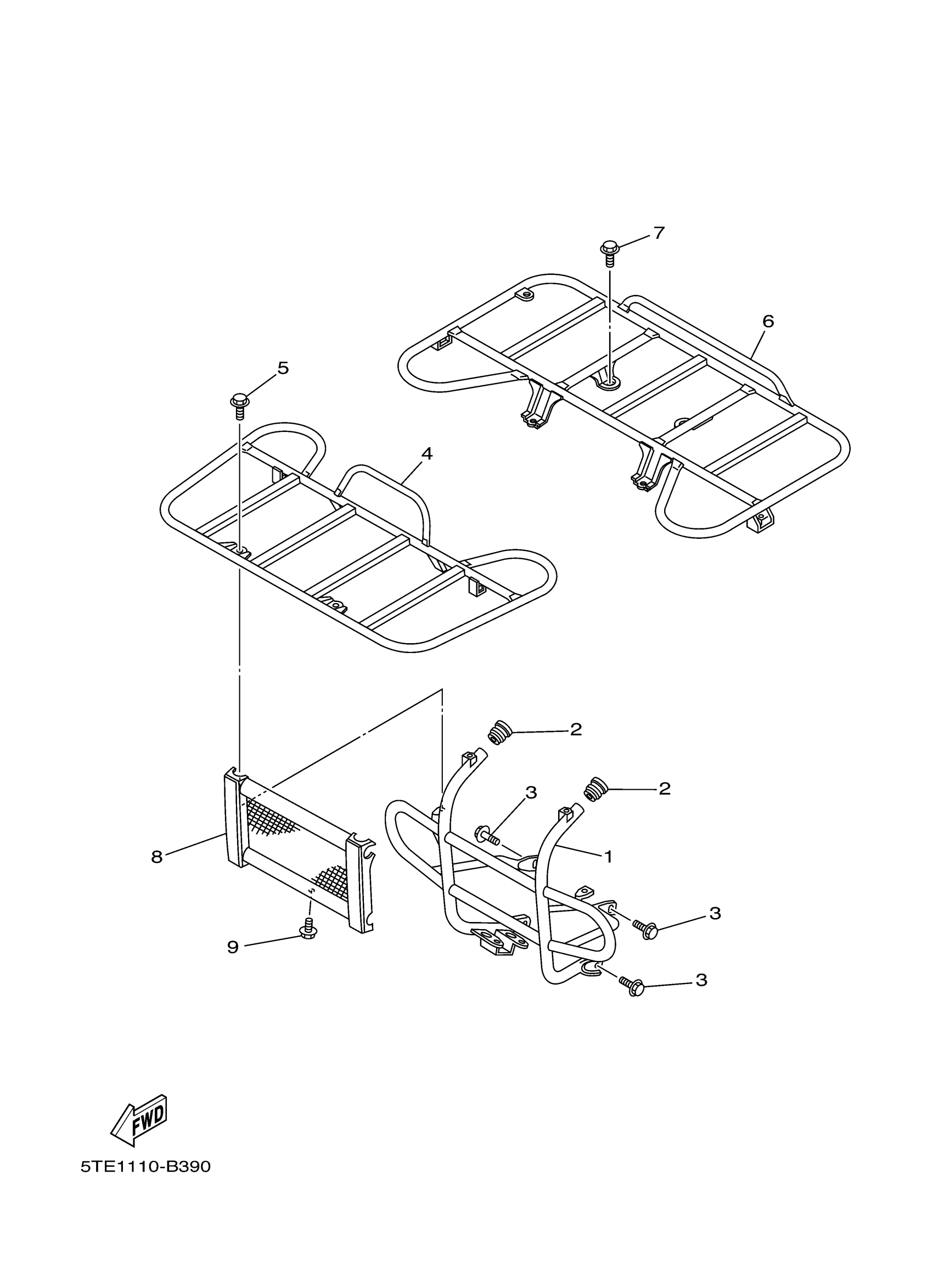

Yamaha YFM400FAR (KODIAK 400 4WD) 5TE1 2003 GUARD Diagram

#

Description
Price

1

BAR, CARRY FRONT

5ND-F845N-00-00

Unavailable

2

CAP FOR TOP OF FRONT BUMPER

4XE-F1399-00-00

Unavailable

3

BOLT, FLANGE

95817-08012-00

$3.71

4

CARRIER, FRONT

5ND-F4841-01-00

$271.67

5

BOLT, FLANGE

95817-08012-00

$3.71

6

CARRIER, REAR

5TE-F4842-00-00

Unavailable

7

BOLT, FLANGE

95817-08012-00

$3.71

8

COVER 5

5TE-F842A-00-00

Unavailable

9

BOLT, WITH WASHER (25K)

90119-06079-00

$0.95
