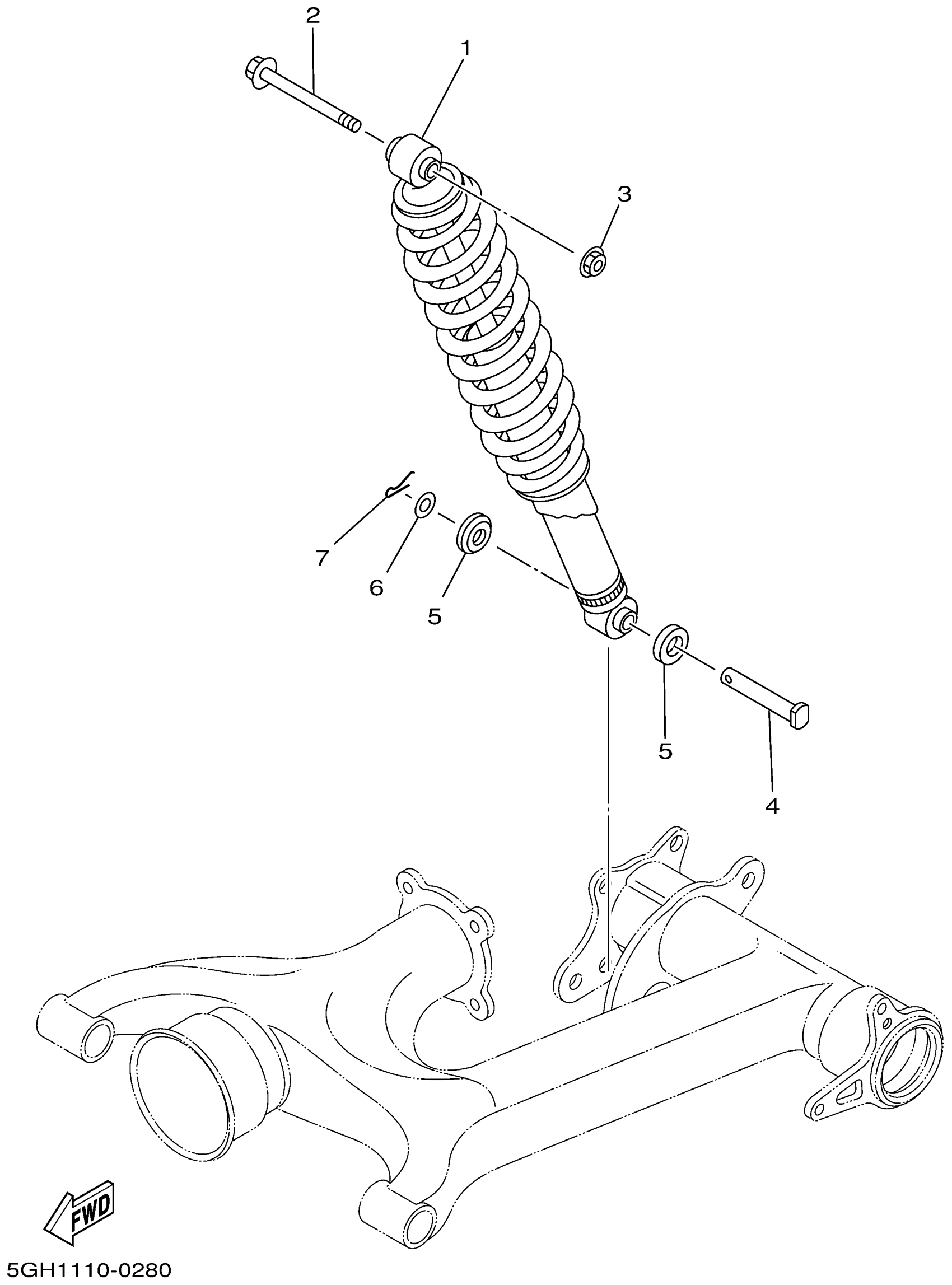

Yamaha YFM400FAP (KODIAK 4WD) 5GHK 2002 REAR SUSPENSION Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY, REAR

5GH-22210-00-00

Unavailable

2

BOLT, FLANGE

90105-12003-00

Unavailable

3

NUT, U FLANGE

95607-12200-00

$5.05

4

PIN, CLEVIS (10V)

90240-12092-00

$7.32

5

COVER, THRUST

1W1-22128-00-00

$16.83

6

WASHER, PLATE(55K)

90201-127J6-00

$5.43

7

PIN, COTTER

91401-30025-00

$6.09
