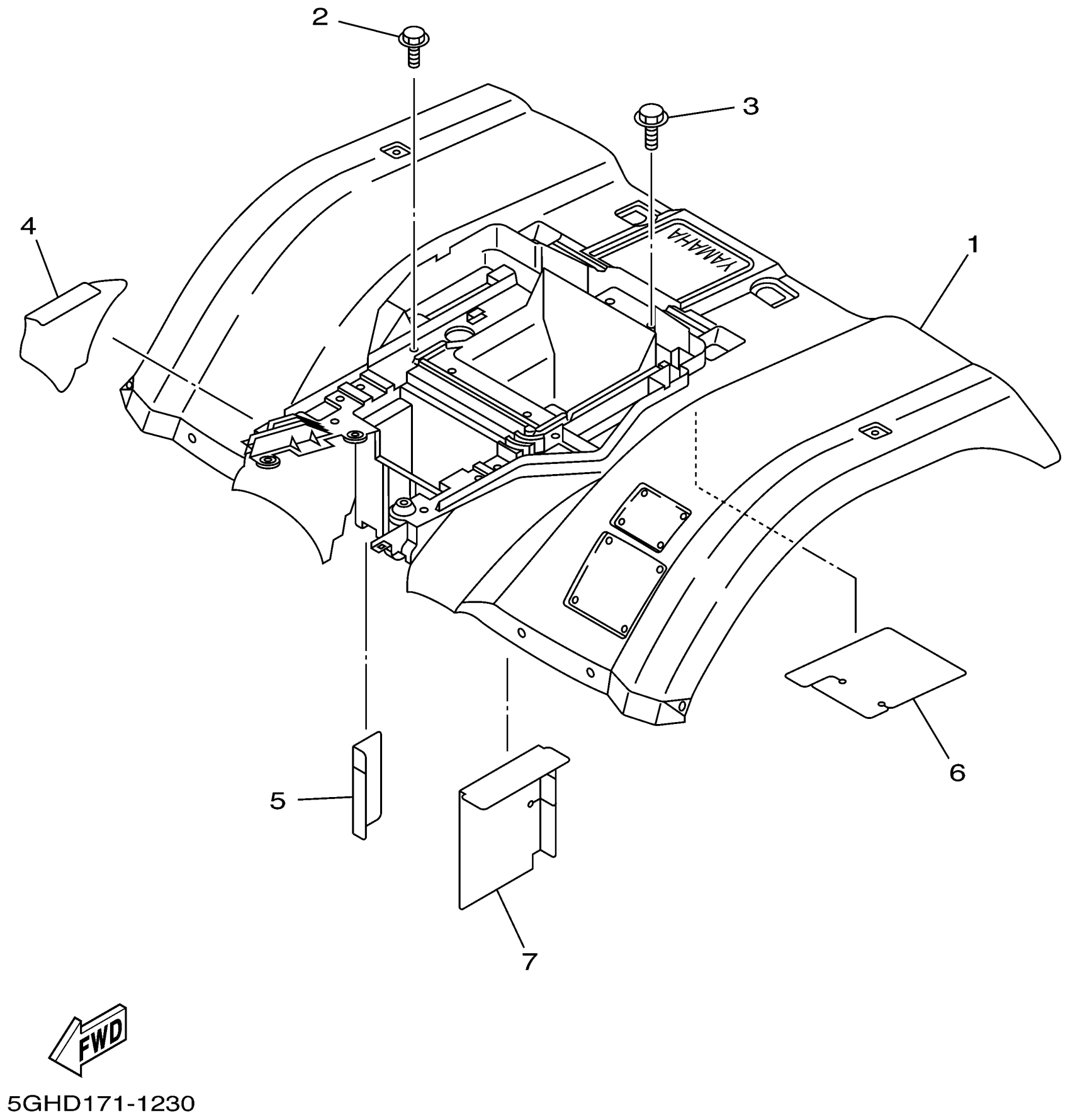

Yamaha YFM400FAP (KODIAK 4WD) 5GHK 2002 REAR FENDER Diagram

#

Description
Price

1

REAR FENDER COMP.

5GH-W2161-01-00

Unavailable

1

REAR FENDER COMP.

5GH-W2161-11-00

Unavailable

1

REAR FENDER COMP.

5GH-W2161-21-00

Unavailable

2

BOLT, WITH WASHER

90119-06242-00

$7.49

3

BOLT, WITH WASHER

90119-06152-00

$7.49

4

COVER, REAR FENDER 1

5GH-2163A-00-00

$58.99

5

COVER, REAR FENDER 2

5GH-2163E-00-00

Unavailable

6

PROTECTOR

5GH-21652-00-00

Unavailable

7

COVER, REAR FENDER 3

5GH-2163F-00-00

Unavailable
