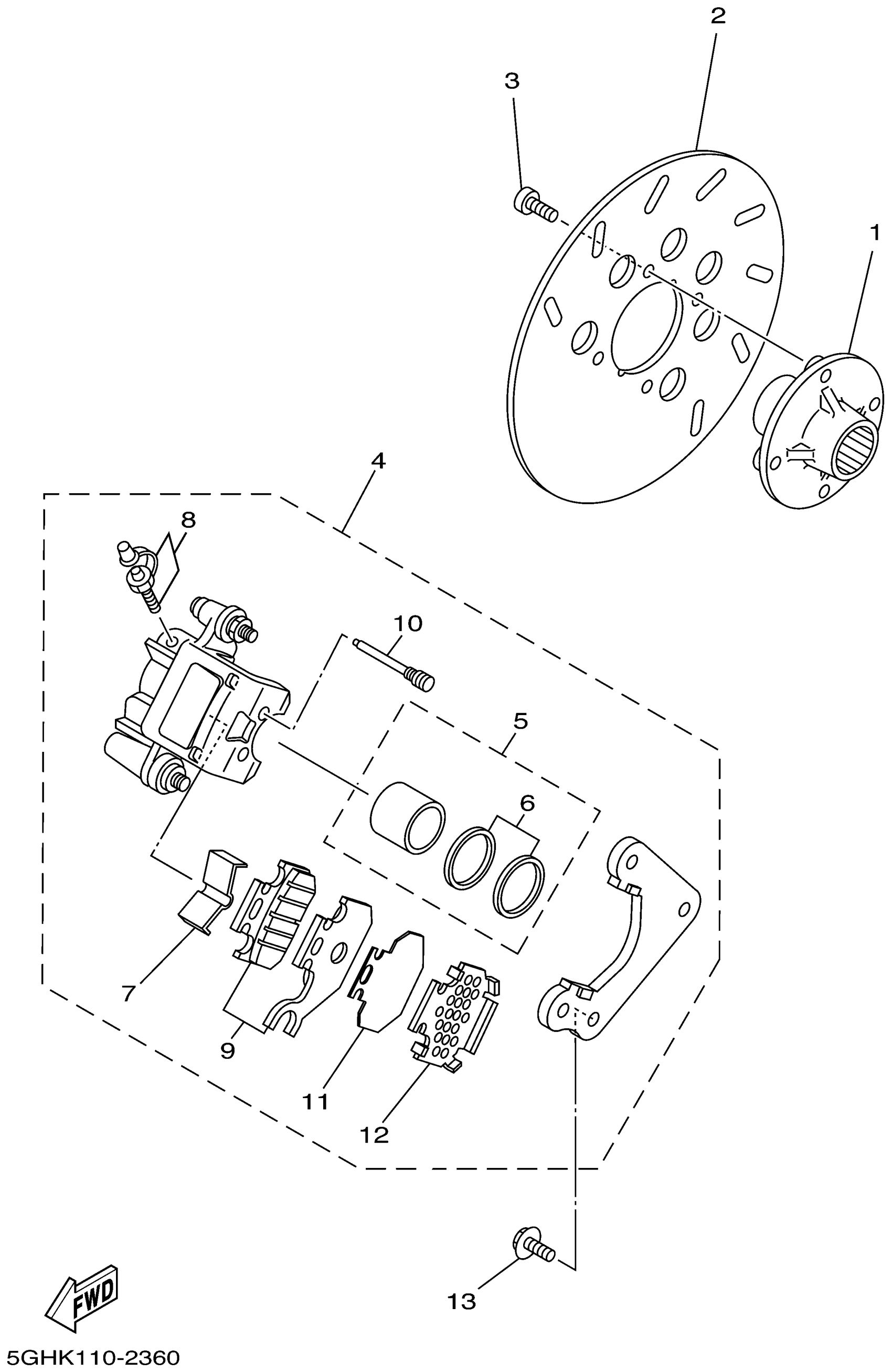

Yamaha YFM400FAP (KODIAK 4WD) 5GHK 2002 REAR BRAKE Diagram

#

Description
Price

1

BRACKET, DISC

5GH-25712-00-00

Unavailable

2

DISC, BRAKE (RIGHT)

5GH-25831-00-00

$78.54

3

BOLT,HEX. SOCKET BUTTON

90111-08053-00

$5.93

4

CALIPER ASSY, REAR 1

5GH-2580V-11-00

$386.35

5

PISTON ASSY, CALIPER

3TB-W0057-00-00

$55.41

6

CALIPER SEAL KIT

3GD-W0047-00-00

$12.22

7

SUPPORT, PAD

4GY-25919-50-00

Unavailable

8

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

9

BRAKE PAD KIT 2

5GH-W0046-10-00

$28.41

10

PIN, PAD

5GH-25924-00-00

Unavailable

11

INSULATOR, HEAT

4GY-22898-50-00

$17.15

12

SHIM, CALIPER

5GH-25828-00-00

$13.33

13

BOLT, FLANGE

95817-08014-00

$1.81
