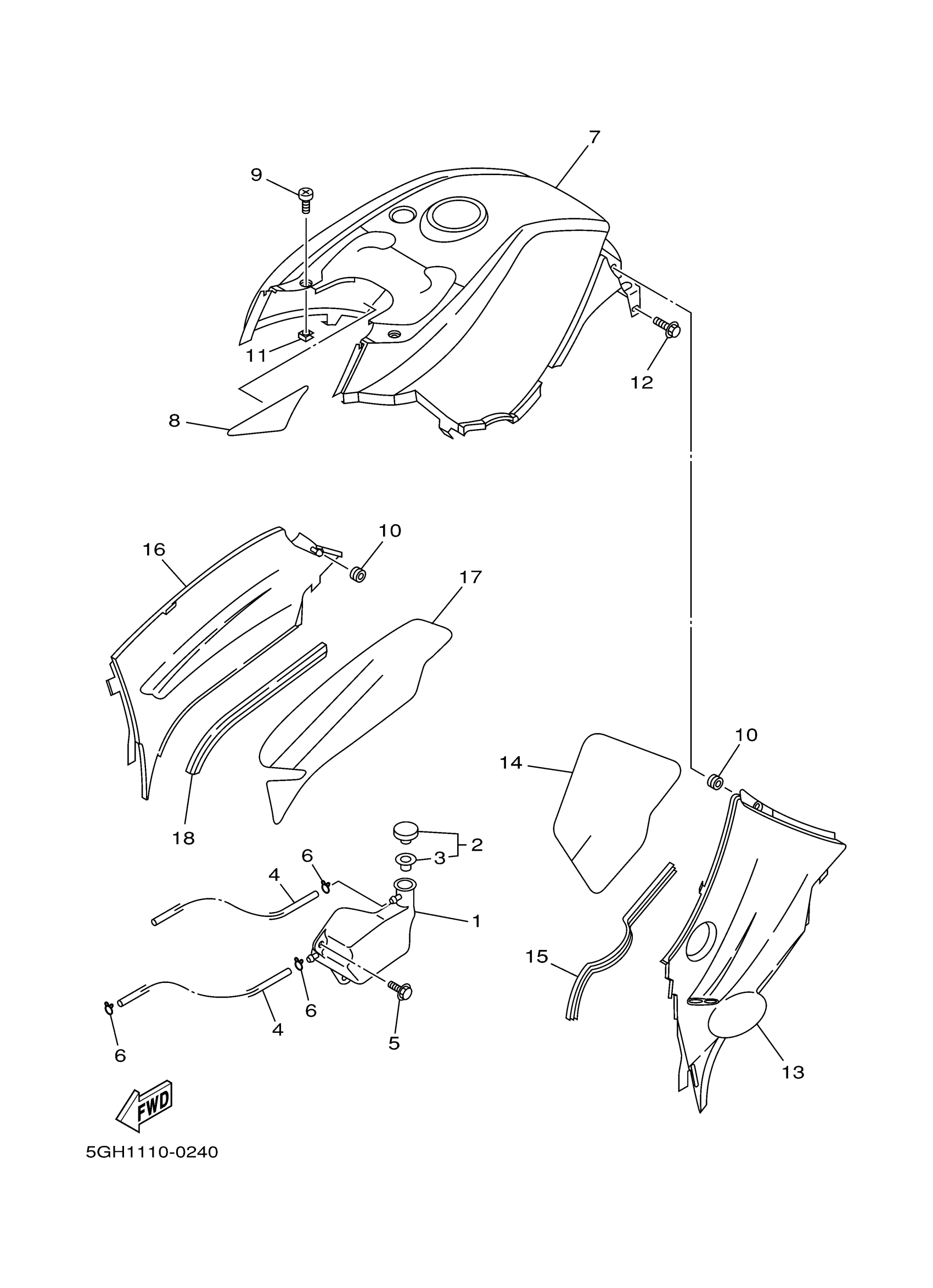

Yamaha YFM400FAN (KODIAK 4WD HUNTER) 5GH9 2001 SIDE COVER Diagram

TANK, RECOVERY

5GH-21871-00-00

Unavailable

CAP

1AA-21815-00-00

$12.99

GASKET

1AA-21874-00-00

$7.99

HOSE (L1500)

90445-090F6-00

$31.99

BOLT, WITH WASHER

90119-06152-00

$7.49

CLIP 101235600

90467-08003-00

$10.49

COVER, TOP (PASTEL DEEP GREEN)

5GH-2171A-00-00

Unavailable

COVER, TOP (ROMANTIQUE ROUGE)

5GH-2171A-10-00

Unavailable

COVER, TOP (DARK GRAYISH YELLOW SOLID 1)

5GH-2171A-20-00

Unavailable

COVER, TOP (PASTEL DEEP GREEN)

5GH-2171A-A0-00

Unavailable

CLOTH, PROTECTOR

5GH-2174M-00-00

Unavailable

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

GROMMET(4FU)

90480-13567-00

$4.99

NUT, SPRING

90183-051A0-00

$3.81

BOLT, WITH WASHER

90119-06152-00

$7.49

COVER, SIDE 1

5GH-21711-00-00

Unavailable

INSULATOR, SIDE COVER

5GH-2174A-00-00

Unavailable

MOLE, SIDE COVER 1

5GH-2171L-00-00

Unavailable

COVER, SIDE 2

5GH-21721-00-00

Unavailable

INSULATOR, SIDE COVER 2

5GH-2174T-00-00

Unavailable

MOLE, SIDE COVER 1

5KM-2171L-00-00

Unavailable
