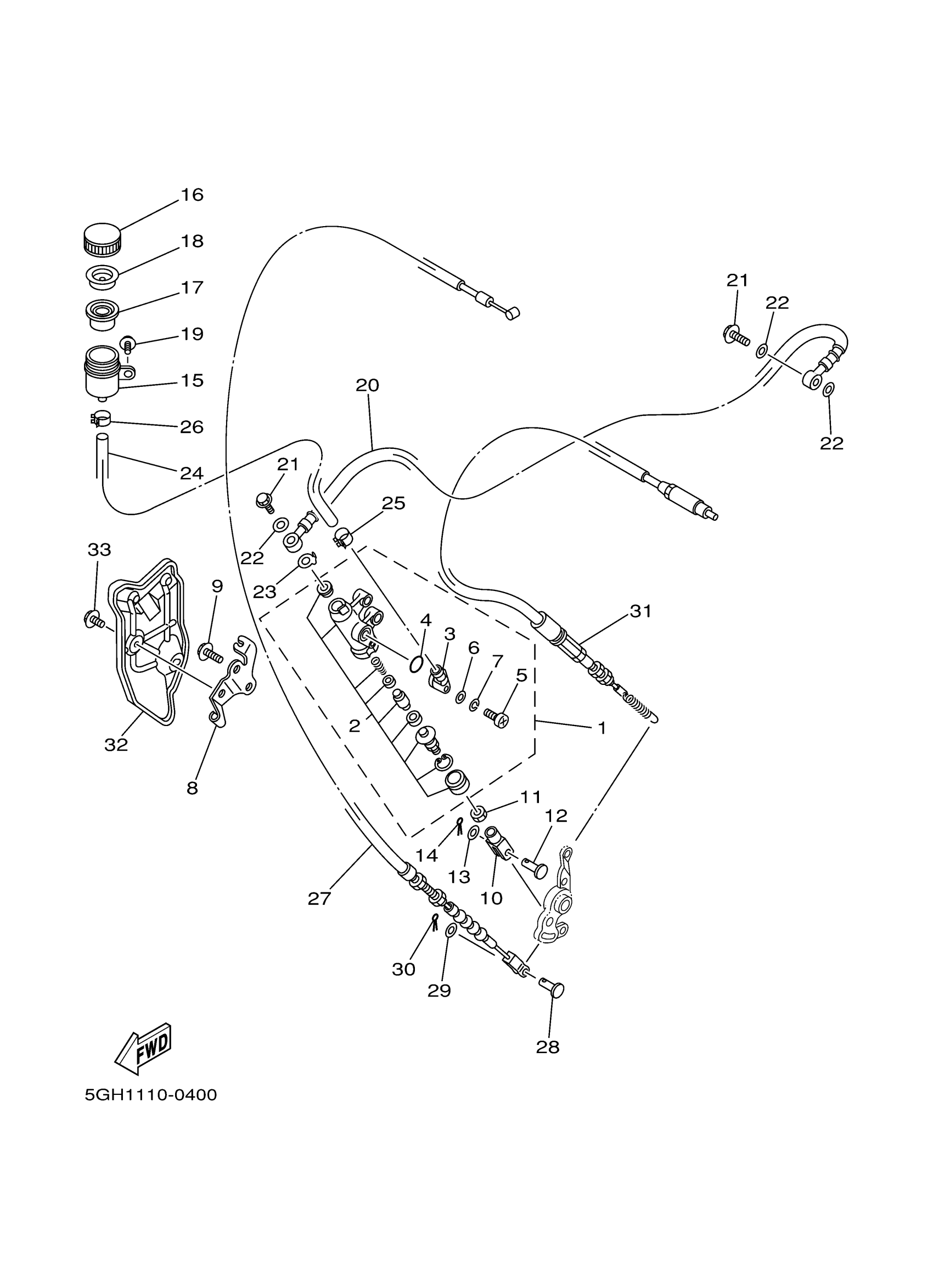

Yamaha YFM400FAN (KODIAK 4WD HUNTER) 5GH9 2001 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5GH-2583V-00-00

Unavailable

2

. CYLINDER KIT, MASTER

5GH-W0042-50-00

Unavailable

3

JOINT

31A-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98517-04012-00

$3.88

6

WASHER(JF2)

92907-04600-00

$1.71

7

WASHER(6TA)

92907-04100-00

$8.49

8

HOLDER, WIRE

5GH-2637G-00-00

Unavailable

9

BOLT, FLANGE(4LN)

95817-08025-00

$8.49

10

JOINT

47X-27222-00-00

Unavailable

11

NUT, HEXAGON SMALL

95317-08700-00

$9.49

12

PIN W/HOLE 307181180000

90240-08013-00

$8.49

13

WASHER, PLATE 1562722600

90201-08083-00

$9.49

14

PIN, COTTER

91490-16020-00

Unavailable

15

TANK, RESERVOIR

2VN-25894-00-00

$20.99

16

CAP, RESERVOIR

4PX-25852-00-00

Unavailable

17

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

Unavailable

18

BUSH,DIAPHRAGM

2VN-25855-00-00

Unavailable

19

BOLT, FLANGE

95817-06016-00

Unavailable

20

HOSE, BRAKE

5GH-25874-00-00

Unavailable

21

BOLT, UNION(3GM)

90401-10159-00

Unavailable

22

WASHER, PLATE(481)

90201-10118-00

Unavailable

23

WASHER, LOCK

5GH-25844-00-00

Unavailable

24

HOSE, RESERVOIR

5GH-25895-00-00

Unavailable

25

CLIP (5K4)

90467-14057-00

Unavailable

26

CLIP (7K7)

90467-11044-00

Unavailable

27

WIRE, BRAKE 1

5GH-26341-10-00

Unavailable

28

PIN, CLEVIS (3X3)

90240-06076-00

Unavailable

29

WASHER, PLATE (214-27417-00)

90201-06042-00

Unavailable

30

PIN, COTTER (648)

91490-20015-00

Unavailable

31

CABLE, CONTROL 2

5GH-2637F-11-00

Unavailable

32

PROTECTOR

5GH-27491-00-00

Unavailable

33

BOLT, FLANGE

95817-06008-00

Unavailable
