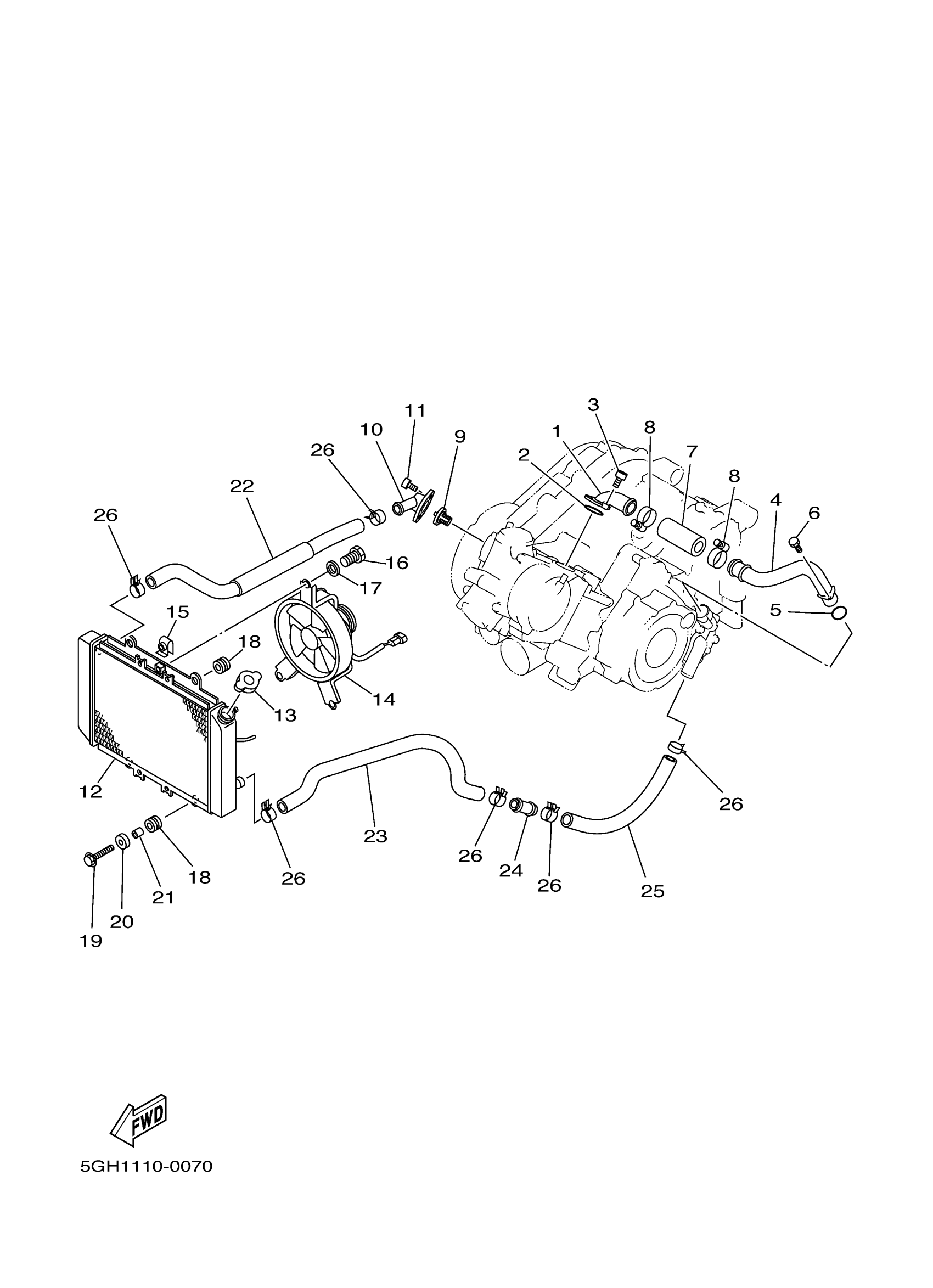

Yamaha YFM400FAN (KODIAK 4WD HUNTER) 5GH9 2001 RADIATOR HOSE Diagram

#

Description
Price

1

JOINT

5GH-12446-00-00

Unavailable

2

O-RING

93210-33006-00

$4.72

3

BOLT,SOCKET

91317-06020-00

Unavailable

4

PIPE 4

5GH-12484-00-00

Unavailable

5

O-RING (716)

93210-18417-00

$7.49

6

BOLT,SOCKET

91317-06012-00

$8.49

7

PIPE 1

5GH-12481-00-00

$11.99

8

HOSE CLAMP ASSY

90450-32015-00

$17.99

9

THERMOSTAT

2TV-12411-01-00

$71.99

10

COVER, THERMOSTAT

5GH-12413-00-00

Unavailable

11

BOLT,SOCKET

91317-06020-00

Unavailable

12

RADIATOR ASSY

5GH-12461-10-00

Unavailable

13

CAP, RADIATOR

4FL-12462-00-00

$62.99

14

BLOWER ASSY (5GHJ)

99999-03274-00

Unavailable

15

PLATE

1AA-12535-00-00

$14.49

16

BOLT(3JP)

97017-06010-00

Unavailable

17

WASHER(6TA)

92907-06600-00

Unavailable

18

GROMMET(2GH)

90480-12475-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

WASHER

90209-06012-00

Unavailable

21

COLLAR

90387-06113-00

Unavailable

22

PIPE 2

5GH-12482-00-00

Unavailable

23

PIPE 3

5GH-12483-00-00

Unavailable

24

PIPE 5

5GH-12485-00-00

Unavailable

25

PIPE 6

5GH-12476-00-00

Unavailable

26

CLIP(4HC)

90467-23177-00

Unavailable
