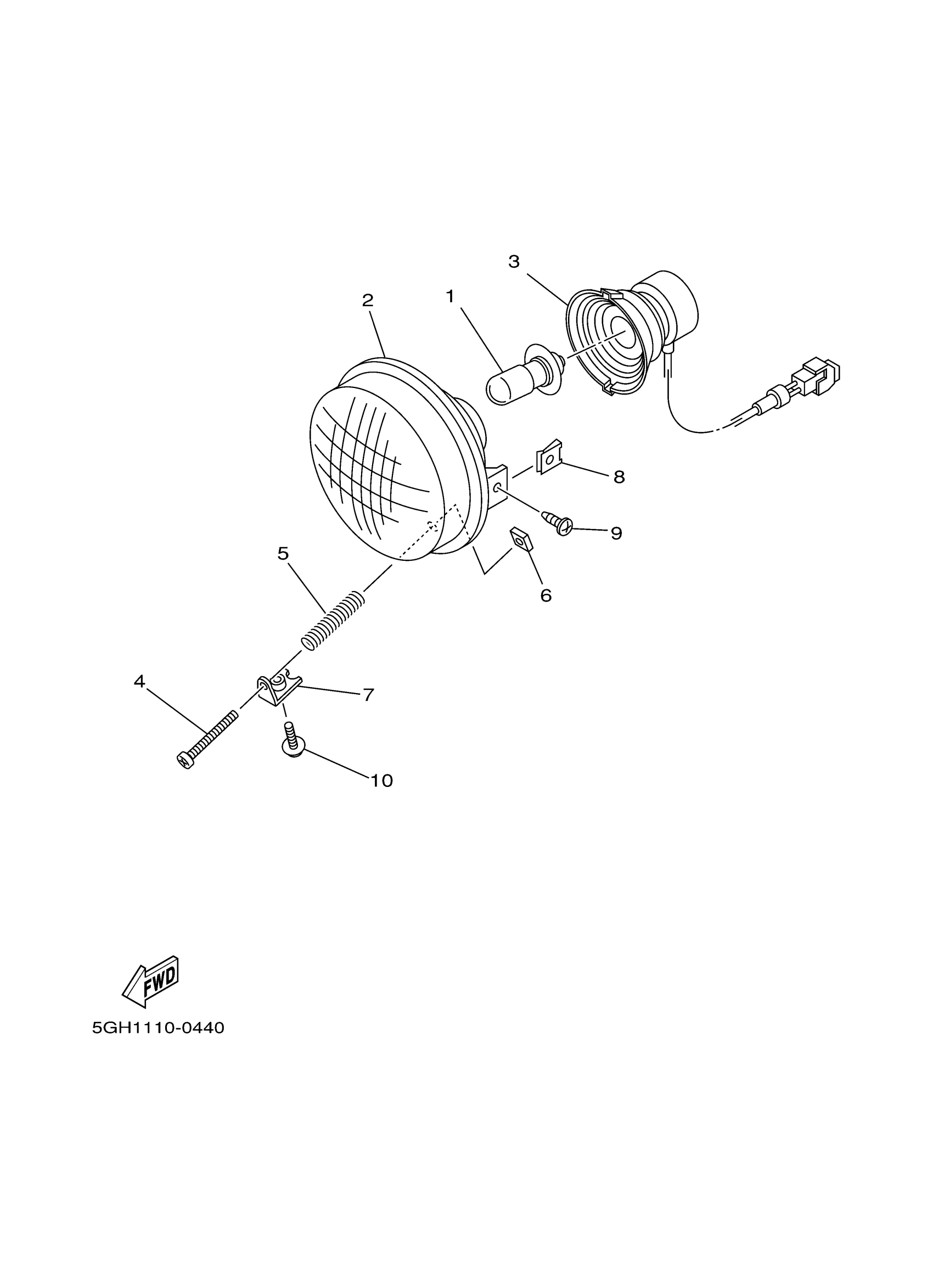

Yamaha YFM400FAN (KODIAK 4WD HUNTER) 5GH9 2001 HEADLIGHT Diagram

#

Description
Price

1

BULB, HEADLIGHT

4KB-84314-01-00

$34.68

2

LENS ASSY

4WV-84320-00-00

$88.61

3

SOCKET CORD ASSY 1

5EH-84340-00-00

$46.67

4

SCREW, PAN HEAD

98507-03540-00

$1.13

5

SPRING, SCREW

2GU-84332-00-00

$6.29

6

NUT, ADJUSTING

2GU-84334-00-00

$5.05

7

BRACKET

5GH-84703-00-00

Unavailable

8

NUT, SPRING

90183-05008-00

$6.22

8

NUT, SPRING(1YT)

90183-05042-00

$0.86

9

SCREW, C.R. BINDING (2T4)

90154-05004-00

$3.02

9

SCREW, TAPPING(4MV)

97707-50016-00

$1.16

10

SCREW, WITH WASHER

90159-05044-00

$2.31
