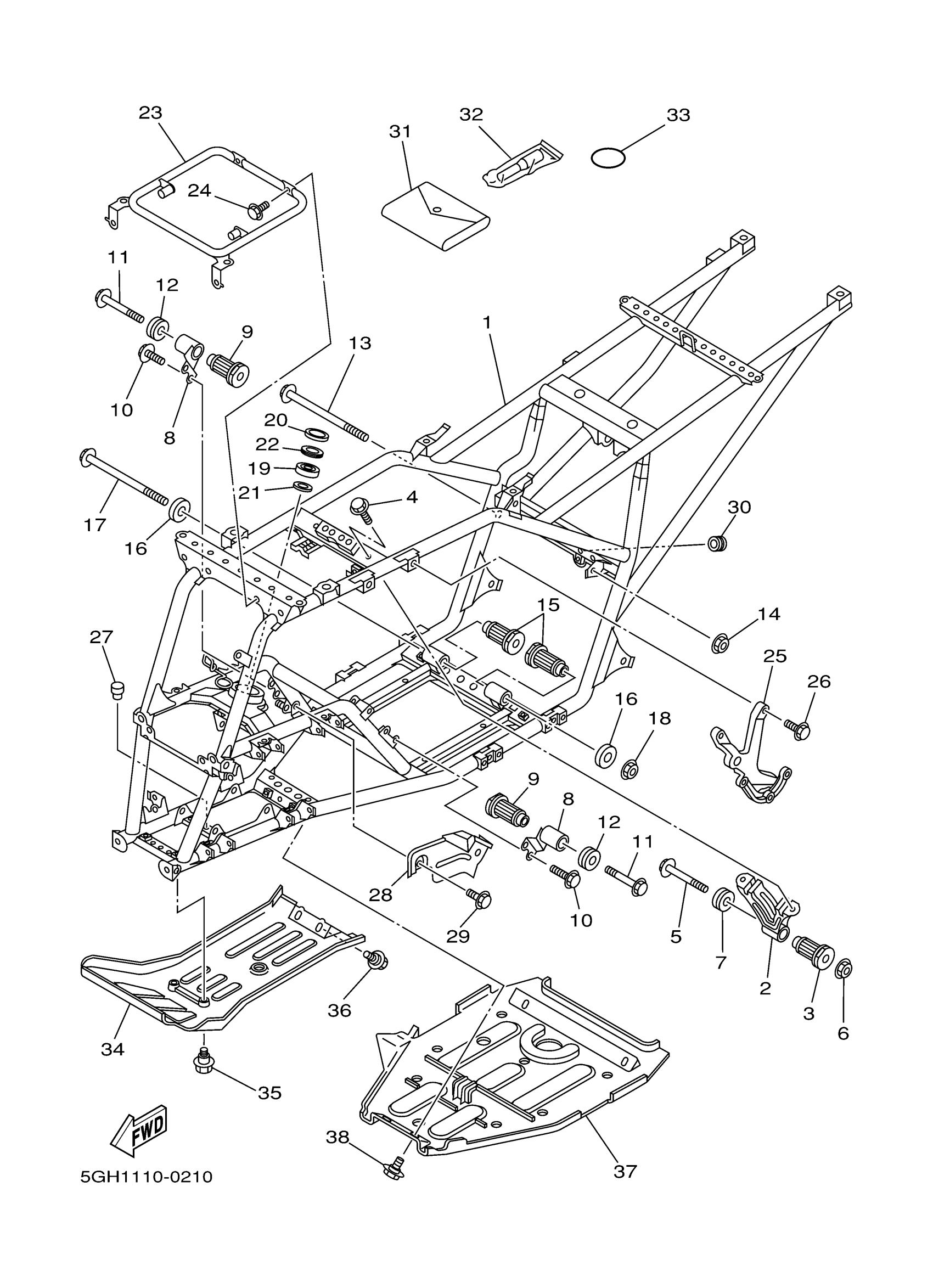

Yamaha YFM400FAN (KODIAK 4WD HUNTER) 5GH9 2001 FRAME Diagram
#
1
FRAME COMP.
5GH-21110-02-00
Unavailable
2
STAY, ENGINE 2
5GH-21315-00-00
Unavailable
7
DAMPER 2
5GH-21486-00-00
Unavailable
8
STAY, ENGINE 3
5GH-21316-00-00
Unavailable
12
DAMPER 2
5GH-21486-00-00
Unavailable
13
BOLT, WASHER BASED
90105-10055-00
Unavailable
16
DAMPER
5GH-21488-00-00
Unavailable
17
BOLT, WASHER BASED
90105-10055-00
Unavailable
19
BEARING
93306-20348-00
Unavailable
20
OIL SEAL (25X44X6-810)
93102-25081-00
Unavailable
21
OIL SEAL (25X36X8-334)
93102-25099-00
Unavailable
22
HOLDER, BEARING
2GU-23872-00-00
Unavailable
23
STAY, FENDER 1
5GH-21513-00-00
Unavailable
24
BOLT, FLANGE
95817-06012-00
Unavailable
25
ARM
5GH-21585-00-00
Unavailable
26
BOLT, FLANGE(8AB)
95817-08020-00
Unavailable
27
STOPPER, MAIN STAND
4N0-27114-00-00
Unavailable
28
PROTECTOR 1
5GH-22825-00-00
Unavailable
29
BOLT, FLANGE
95817-06010-00
Unavailable
30
GROMMET(3GM)
90480-10517-00
Unavailable
31
TOOL KIT
4WV-28100-00-00
Unavailable
32
GAUGE, AIR
1NV-2811A-01-00
Unavailable
33
O-RING (583 OIL CLEANER)
93210-64297-00
Unavailable
34
GUARD, ENGINE 1
5GH-2147A-00-00
Unavailable
35
BOLT(3KJ)
90109-063F5-00
Unavailable
36
BOLT(3KJ)
90109-063F1-00
Unavailable
37
GUARD, ENGINE 2
5GH-2147E-00-00
Unavailable
38
BOLT(3KJ)
90109-063F1-00
Unavailable
