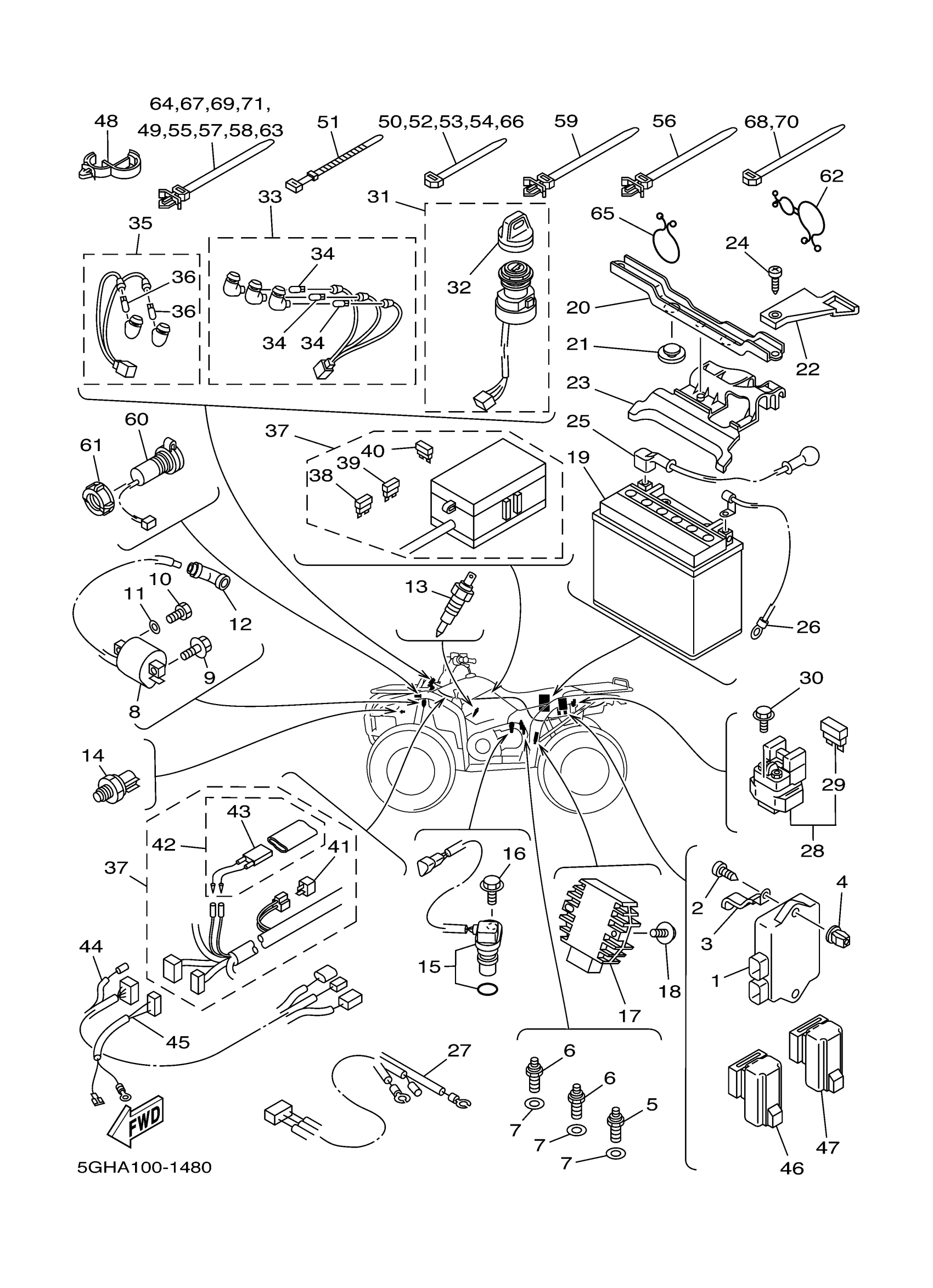

Yamaha YFM400FAN (KODIAK 4WD HUNTER) 5GH9 2001 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5GH-85540-00-00

Unavailable

1

C.D.I. UNIT ASSY

5GH-85540-10-00

Unavailable

2

SCREW, TAPPING

97707-60525-00

$8.49

3

CLAMP

90462-06016-00

$5.60

4

PLUG(4BP)

90338-08226-00

$2.17

5

NEUTRAL SWITCH ASSY

3GD-82540-11-00

$55.99

6

NEUTRAL SWITCH ASSY

4GY-82540-10-00

$37.99

7

GASKET (1KH,1.0T)

90430-10148-00

$5.60

8

IGNITION COIL ASSY

3KJ-82310-13-00

$47.99

9

BOLT (21V)

90109-06723-00

$8.49

10

BOLT, HEXAGON

97017-06020-00

$4.06

11

WASHER(6TA)

92907-06600-00

$2.72

12

PLUG CAP ASSY

3NS-82370-00-00

$37.99

13

THERMO SWITCH ASSY

4BA-82560-00-00

$87.99

14

THERMO SWITCH ASSY

5GH-82560-01-00

$44.99

15

SENSOR, SPEED

4XV-83755-04-00

Unavailable

16

BOLT,SOCKET

91317-06016-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

Unavailable

18

BOLT, FLANGE

95817-06020-00

Unavailable

19

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

20

BRACKET, BATTERY

5GH-82128-00-00

Unavailable

21

PAD, BATTERY

371-82121-00-00

Unavailable

22

COVER, LEAD WIRE

5GH-82119-00-00

Unavailable

23

COVER, BATTERY

5GH-82129-00-00

Unavailable

24

SCREW, TAPPING(4MV)

97707-50016-00

Unavailable

25

WIRE, PLUS LEAD

5GH-82115-00-00

Unavailable

26

WIRE, MINUS LEAD

5GH-82116-00-00

Unavailable

27

WIRE, LEAD

5GH-82541-00-00

Unavailable

28

STARTER RELAY ASSY (RC19-015)

4SV-81940-12-00

Unavailable

29

FUSE (12V 30A)

1AE-82151-00-00

Unavailable

30

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

31

MAIN SWITCH ASSY

4GB-82510-12-00

Unavailable

32

CAP, KEY

3HN-82579-00-00

Unavailable

33

PILOT LIGHT ASSY

5GH-83530-00-00

Unavailable

34

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

35

PILOT LIGHT ASSY

5GH-83530-10-00

Unavailable

36

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

37

WIRE HARNESS ASSY

5GH-82590-20-00

Unavailable

38

FUSE (15A)

67F-82151-50-00

Unavailable

39

. FUSE (10A)

67F-82151-40-00

Unavailable

40

. FUSE (3A)

67F-82151-30-00

Unavailable

41

DIODE ASSY

3WP-81980-00-00

Unavailable

42

CIRCUIT BREAKER ASSY

5GT-82180-00-00

Unavailable

43

THERMO SWITCH ASSY

5GT-82560-00-00

Unavailable

44

WIRE, SUB LEAD

5GH-82309-00-00

Unavailable

45

WIRE, SUB LEAD

5GH-82509-00-00

Unavailable

46

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

47

RELAY ASSY (2NL-92)

2NL-81950-92-00

Unavailable

48

CLAMP(4FM)

90464-15195-00

Unavailable

49

CLAMP(2TV)

90464-10112-00

Unavailable

50

CLAMP(4FM)

90464-15195-00

Unavailable

51

BAND, SWITCH CORD

437-83936-01-00

Unavailable

52

CLAMP(4FM)

90464-15195-00

Unavailable

53

CLAMP(4FM)

90464-15195-00

Unavailable

54

CLAMP(4FM)

90464-15195-00

Unavailable

55

CLAMP(2TV)

90464-10112-00

Unavailable

56

CLAMP(2TV)

90464-10112-00

Unavailable

57

CLAMP(2TV)

90464-10112-00

Unavailable

58

CLAMP(2TV)

90464-10112-00

Unavailable

59

CLAMP(2TV)

90464-10112-00

Unavailable

60

TERMINAL COMP.

5GH-8254B-00-00

Unavailable

61

NUT

5GH-82114-00-00

Unavailable

62

CLAMP

90464-25098-00

Unavailable

63

CLAMP(2TV)

90464-10112-00

Unavailable

64

CLAMP(2TV)

90464-10112-00

Unavailable

65

CLAMP

90465-10098-00

Unavailable

66

CLAMP(4FM)

90464-15195-00

Unavailable

67

CLAMP(2TV)

90464-10112-00

Unavailable

68

CLAMP(4FM)

90464-15195-00

Unavailable

69

CLAMP(2TV)

90464-10112-00

Unavailable

70

CLAMP(4FM)

90464-15195-00

Unavailable

71

CLAMP(2TV)

90464-10112-00

Unavailable

72

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

73

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
