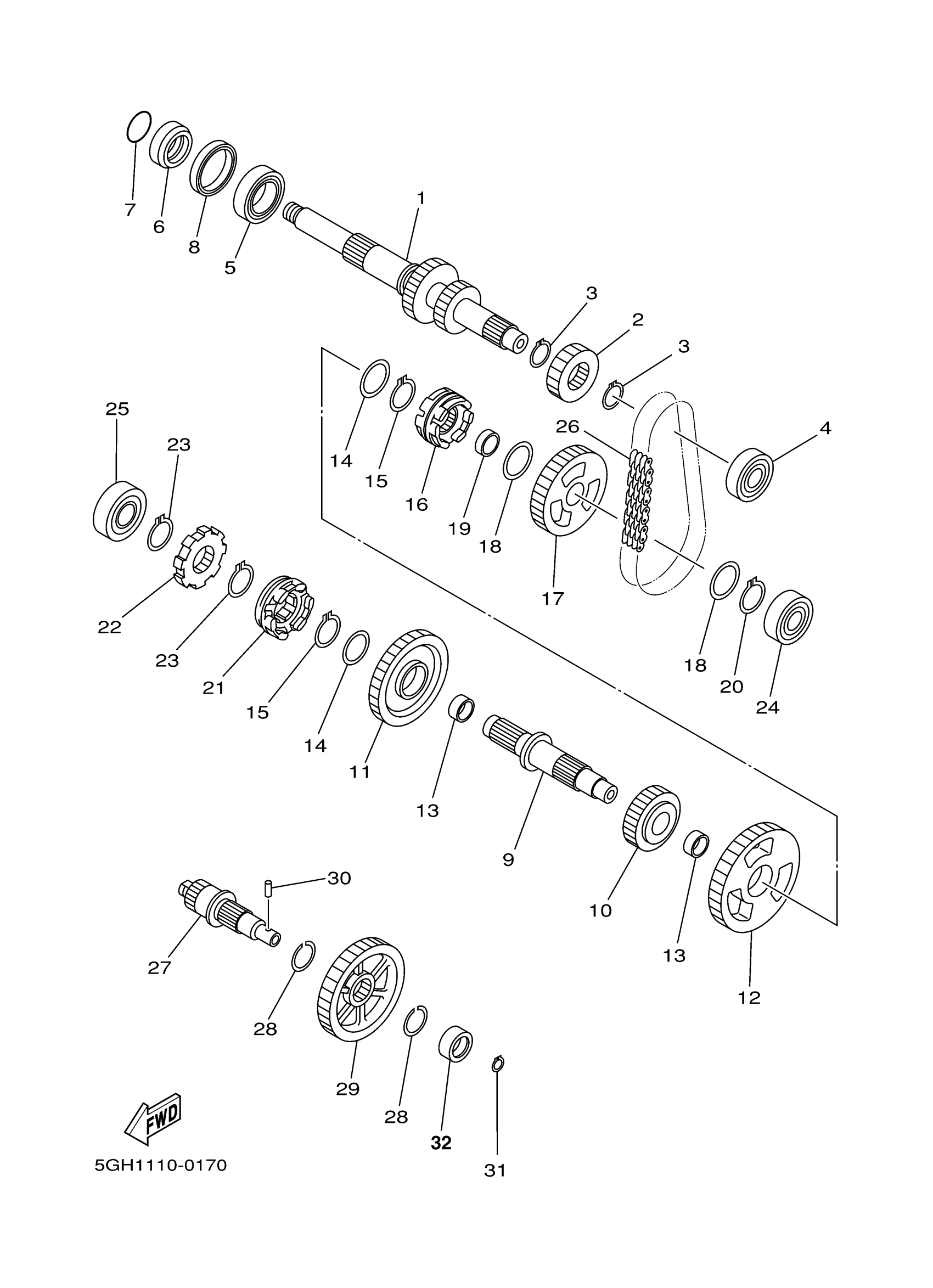

Yamaha YFM400FAMC (KODIAK 4WD) 5GH2 2000 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5GH-17681-00-00

Unavailable

2

SPROCKET, DRIVE

5GH-17451-00-00

Unavailable

3

CIRCLIP (4L0)

93440-25084-00

$5.60

4

BEARING (7K2)

93306-00423-00

$37.99

5

BEARING (5X5)

93306-20627-00

$75.99

6

COLLAR

90387-26001-00

$40.99

7

O-RING(1XX)

93210-26741-00

$7.49

8

OIL, SEAL (70R)

93102-42322-00

$17.99

9

DRIVE AXLE ASSY

5GH-17402-01-00

$131.99

10

GEAR, MIDDLE DRIVE(24T)

5GH-17582-00-00

$116.99

11

GEAR, HIGH WHEEL(38T)

5GH-17223-00-00

$161.99

12

GEAR, LOW WHEEL(45T)

5GH-17233-00-00

Unavailable

13

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$34.99

14

WASHER, PLATE(8BB)

90201-250R9-00

$5.60

15

CIRCLIP (4L0)

93440-25084-00

$5.60

16

CLUTCH, DOG

5GT-17285-00-00

Unavailable

17

SPROCKET, DRIVEN (29T)

5GH-17453-00-00

Unavailable

18

WASHER PLATE 168171160000

90201-20278-00

Unavailable

19

. BEARING

93310-420F2-00

Unavailable

20

CIRCLIP (525)

93410-20038-00

Unavailable

21

CLUTCH, DOG

5GH-17285-00-00

Unavailable

22

STOPPER

5GH-17473-00-00

Unavailable

23

CIRCLIP (4L0)

93440-25084-00

$5.60

24

BEARING

93306-30212-00

Unavailable

25

BEARING(3LD)

93306-20464-00

Unavailable

26

CHAIN

94581-77038-00

Unavailable

27

SHAFT

5GT-17523-00-00

Unavailable

28

CIRCLIP (4L0)

93440-25084-00

$5.60

29

GEAR, MIDDLE DRIVEN(39T)

5GH-17583-00-00

Unavailable

30

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

31

CIRCLIP(59V)

93440-14155-00

Unavailable

32

BEARING

93311-42077-00

Unavailable
