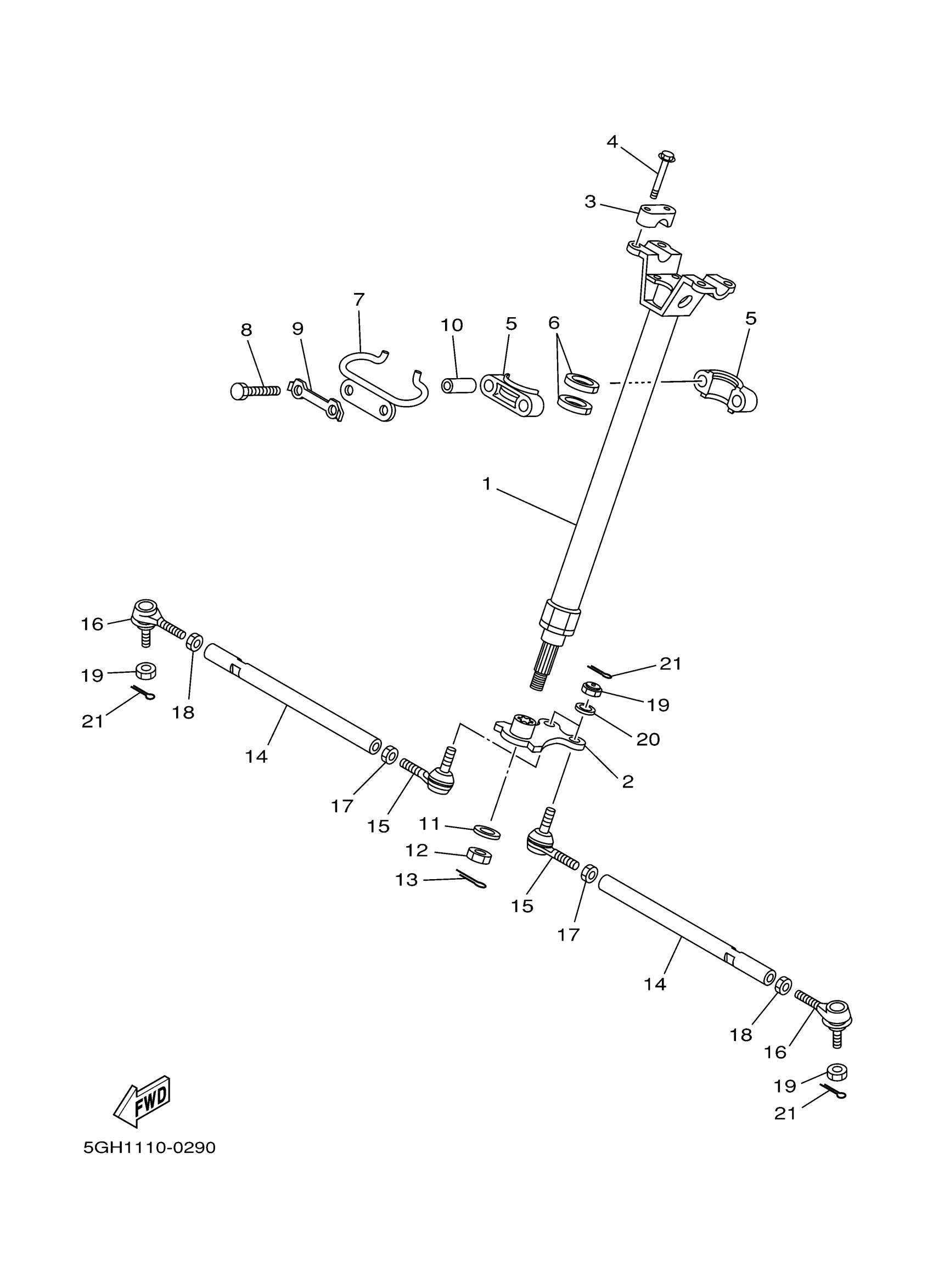

Yamaha YFM400FAMC (KODIAK 4WD) 5GH2 2000 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING 2

5GH-23813-01-00

Unavailable

2

ARM, PITMAN

5GH-23816-01-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

4

BOLT, FLANGE(6TA)

95817-08030-00

$5.75

5

PLANE BEARING, STEERING

1UY-23812-00-00

$19.75

6

OIL SEAL(1UY)

93112-31011-00

$7.01

7

BRACKET, STEERING

1HP-F3868-00-00

$8.11

8

BOLT, HEXAGON

97017-08060-00

Unavailable

9

WASHER, LOCK 1

1UY-23894-01-00

$6.39

10

COLLAR(85G)

90387-106T4-00

$10.53

11

WASHER, PLATE(3FC)

90201-142M6-00

$6.71

12

NUT, SELF-LOCKING(3FC)

90185-14150-00

$11.23

13

CLIP(3YF)

90468-16191-00

$5.75

14

ROD, TIE

2HR-23831-01-00

Unavailable

15

JOINT, UNIVERSAL 1

1UY-23841-01-00

$62.23

16

JOINT, UNIVERSAL 2

1UY-23845-01-00

Unavailable

17

NUT (3WP1)

95317-10700-00

Unavailable

18

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

19

NUT, CASTLE

90171-10001-00

Unavailable

20

WASHER, PLATE

92990-10600-00

$2.57

21

PIN, COTTER

91490-20025-00

Unavailable
