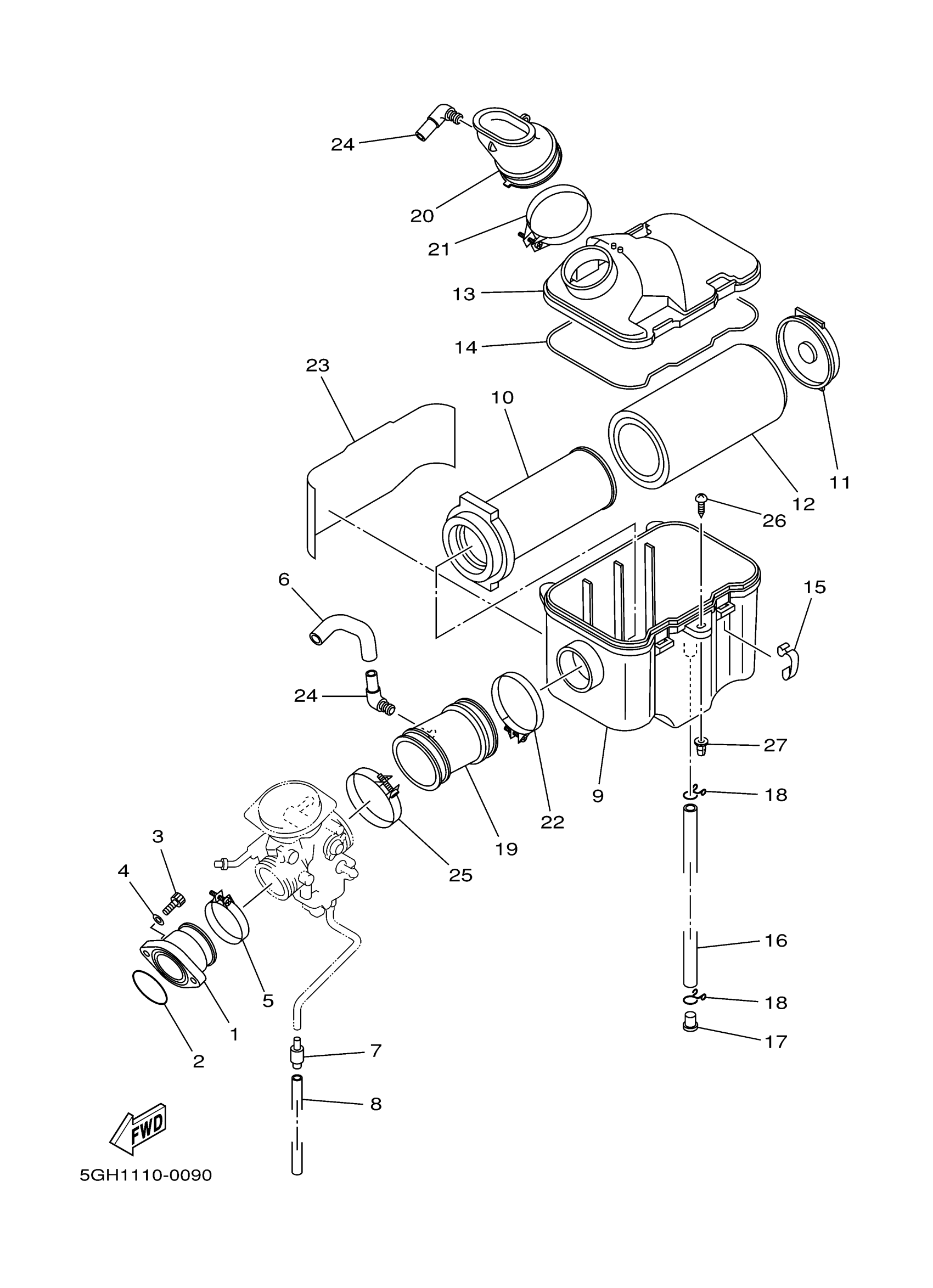

Yamaha YFM400FAMC (KODIAK 4WD) 5GH2 2000 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

5GH-13586-00-00

$79.99

2

O-RING (10L)

93210-44545-00

$13.49

3

BOLT, SOCKET

91317-08025-00

$8.49

4

WASHER PLATE 141181390000

90201-08085-00

$9.49

5

HOSE CLAMP ASSY

90450-47002-00

$8.49

6

PIPE

5GH-14349-00-00

Unavailable

7

PIPE 2,OVERFLOW

24W-14193-00-00

$41.99

8

TUBE, FLEXIBLE(3NV)

91A21-07020-00

$10.49

9

CASE, AIR CLEANER 1

5GH-14411-00-00

Unavailable

10

GUIDE

5GH-14458-01-00

$95.99

11

PLATE, ELEMENT FITTING

1UY-14468-00-00

$20.99

12

ELEMENT, AIR CLEANER

5GH-14451-01-00

$11.99

13

CAP, CLEANER CASE 1

5GH-14412-00-00

Unavailable

14

SEAL

1VJ-14462-00-00

$18.49

15

HOOK

5TH-14436-00-00

$9.99

16

TUBE, FLEXIBLE VINYL

91A20-12026-00

Unavailable

17

PLUG(EU0)

90605-50201-00

Unavailable

18

CLIP (806-24358-00)

90467-15012-00

Unavailable

19

JOINT, AIR CLEANER 1

5GH-14453-00-00

Unavailable

20

DUCT

5GH-14437-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-60005-00

Unavailable

22

HOSE CLAMP ASSY

90450-58002-00

Unavailable

23

PROTECTOR

5GH-1442F-00-00

Unavailable

24

PIPE

31A-14419-00-00

Unavailable

25

HOSE CLAMP ASSY

90450-56001-00

Unavailable

26

SCREW, TAPPING

97707-60020-00

Unavailable

27

PLUG(4BP)

90338-08226-00

Unavailable

28

PLATE, EPA 3 (CALIFORNIA)

5GH-2179T-00-00

Unavailable
