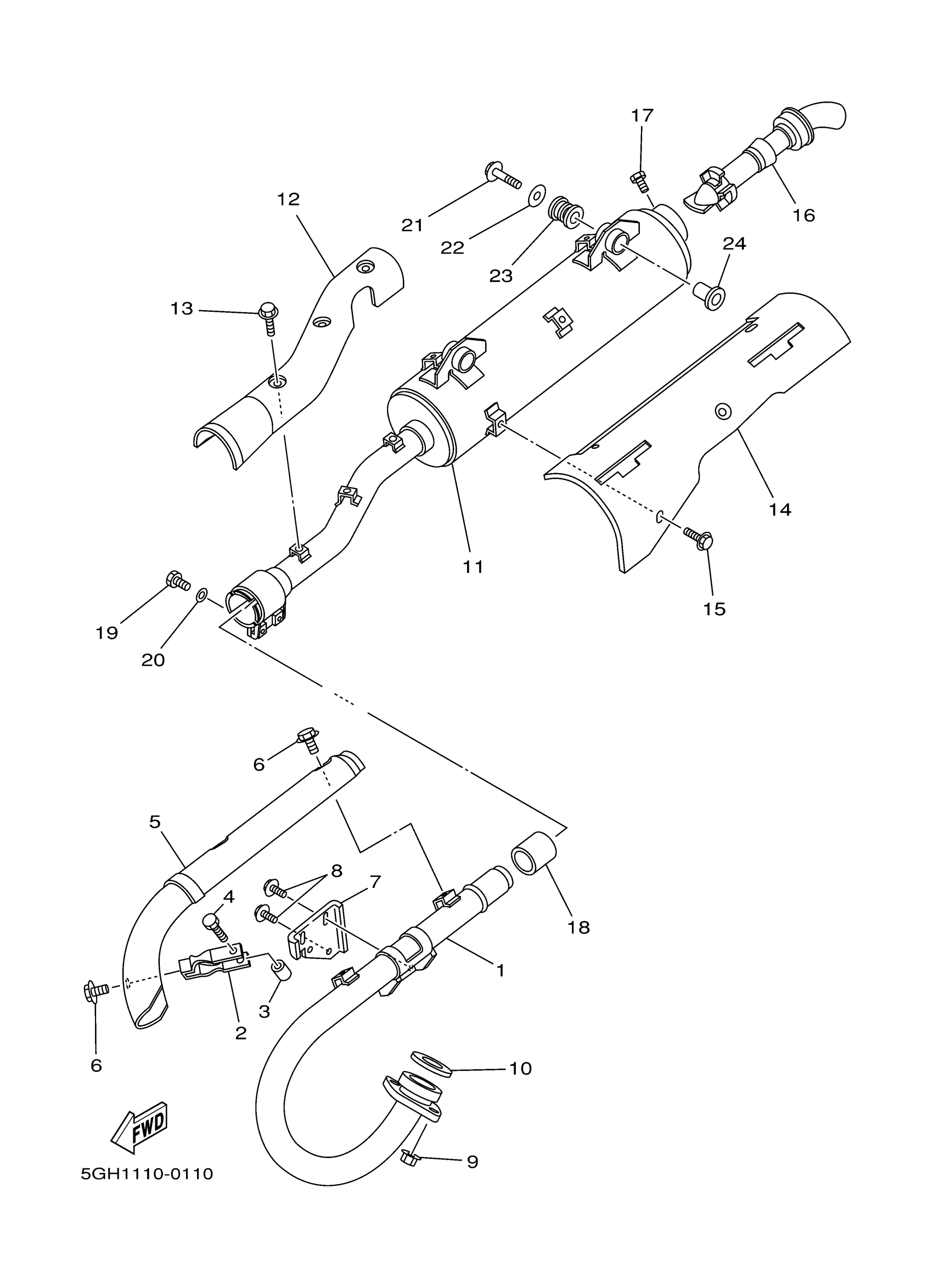

Yamaha YFM400FAMC (KODIAK 4WD) 5GH2 2000 EXHAUST Diagram
#
Description
Price
1
PIPE, EXHAUST 1
5GH-14611-00-00
Unavailable
2
STAY, PROTECTOR
5GH-14629-00-00
Unavailable
3
SPACER (24W)
90560-06243-00
Unavailable
5
PROTECTOR, EXHAUST PIPE
5GH-14628-10-00
Unavailable
7
PLATE 1
5GH-1477K-00-00
Unavailable
12
PROTECTOR, MUFFLER 2
5GH-14728-00-00
Unavailable
14
PROTECTOR, MUFFLER 1
5GH-14718-00-00
Unavailable
16
PIPE, OUTLET
5GH-14752-00-00
Unavailable
17
BOLT,HEXAGON
97017-06008-00
Unavailable
18
GASKET, MUFFLER
3YF-14714-00-00
Unavailable
19
BOLT, SOCKET
91317-08020-00
Unavailable
20
WASHER, PLATE(47X)
90201-086J0-00
Unavailable
21
BOLT, FLANGE
95817-10040-00
Unavailable
22
WASHER, PLATE (2H7)
90201-10669-00
Unavailable
23
DAMPER, MUFFLER
5GH-14737-00-00
Unavailable
24
COLLAR (2H7)
90387-10636-00
Unavailable
