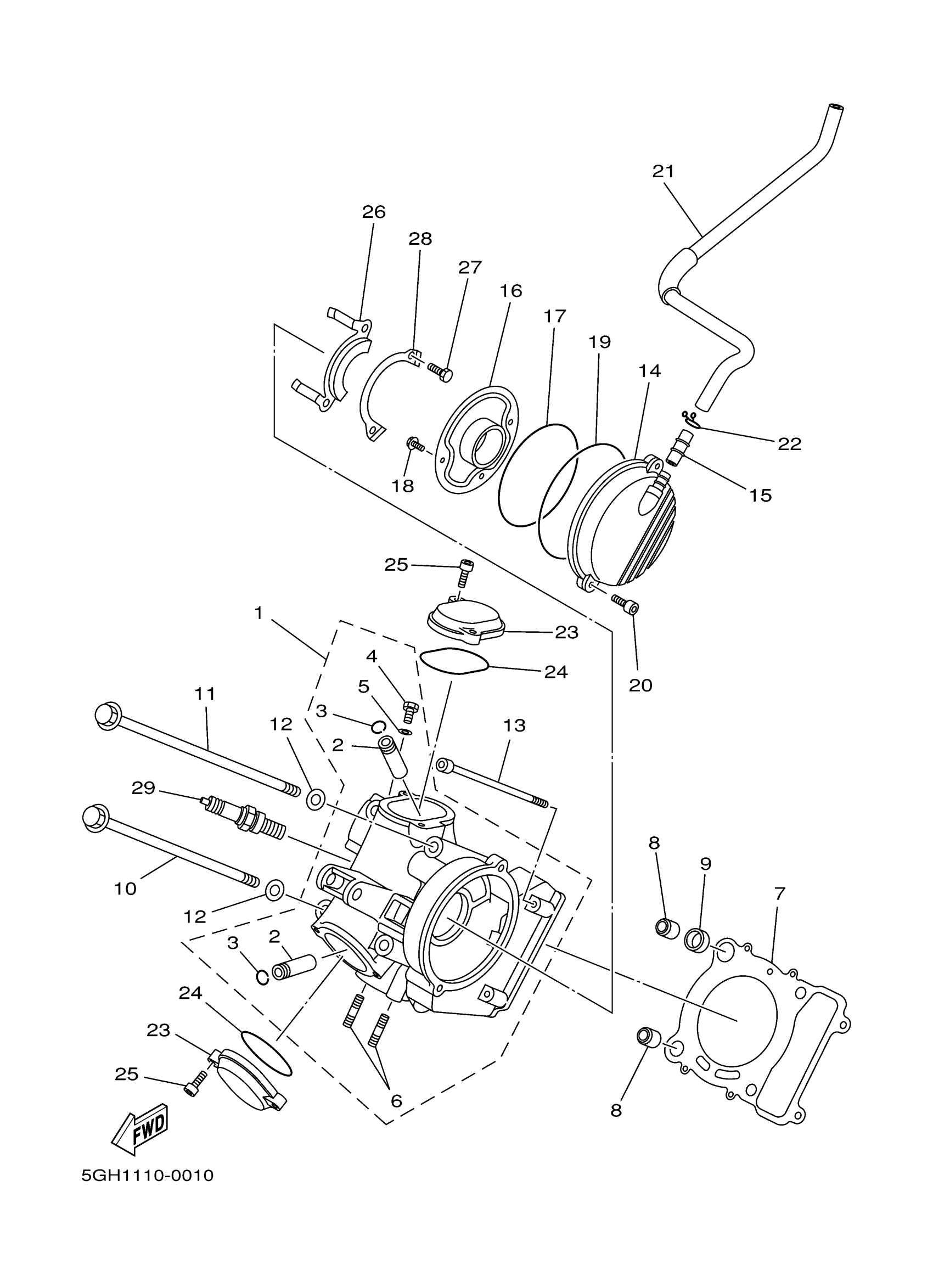

Yamaha YFM400FAMC (KODIAK 4WD) 5GH2 2000 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5GH-11101-09-00

Unavailable

2

GUIDE, INTAKE VALVE

3Y1-11133-11-00

$58.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT UNION 137131650000

90401-06001-00

Unavailable

5

GASKET (4V2)

90430-06166-00

$3.76

6

BOLT, STUD(2GG)

95617-08620-00

$7.49

7

GASKET, CYLINDER HEAD 1

5GH-11181-00-00

$58.99

8

PIN, DOWEL

99530-14016-00

$3.80

9

GASKET

90430-14240-00

$9.49

10

BOLT, FLANGE

90105-10137-00

$11.49

11

BOLT, FLANGE

90105-10136-00

$11.49

12

WASHER PLATE 341839090000

90201-10128-00

$4.82

13

BOLT,SOCKET

91317-06140-00

$14.99

14

BREATHER ASSY

4WU-11160-01-00

Unavailable

15

PIPE, BREATHER 2

371-11167-01-00

$13.49

16

PLATE, BREATHER

4KB-11165-00-00

Unavailable

17

O-RING (4X7)

93210-92448-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

19

O-RING (15A)

93211-06635-00

Unavailable

20

BOLT,SOCKET

91317-06025-00

Unavailable

21

PIPE, BREATHER 1

5GH-11166-00-00

Unavailable

22

CLIP (371)

90467-14015-00

Unavailable

23

COVER, CYLINDER HEAD SIDE 2

3Y1-11186-10-00

Unavailable

24

O-RING

93210-57634-00

Unavailable

25

BOLT,SOCKET

91317-06020-00

Unavailable

26

PLATE

5GH-1111F-00-00

Unavailable

27

BOLT, HEXAGON

97017-06012-00

Unavailable

28

WASHER, LOCK (5H0)

90215-06184-00

Unavailable

29

D8EA NGK SPLUG 10PK

D8E-A0000-00-00

Unavailable
