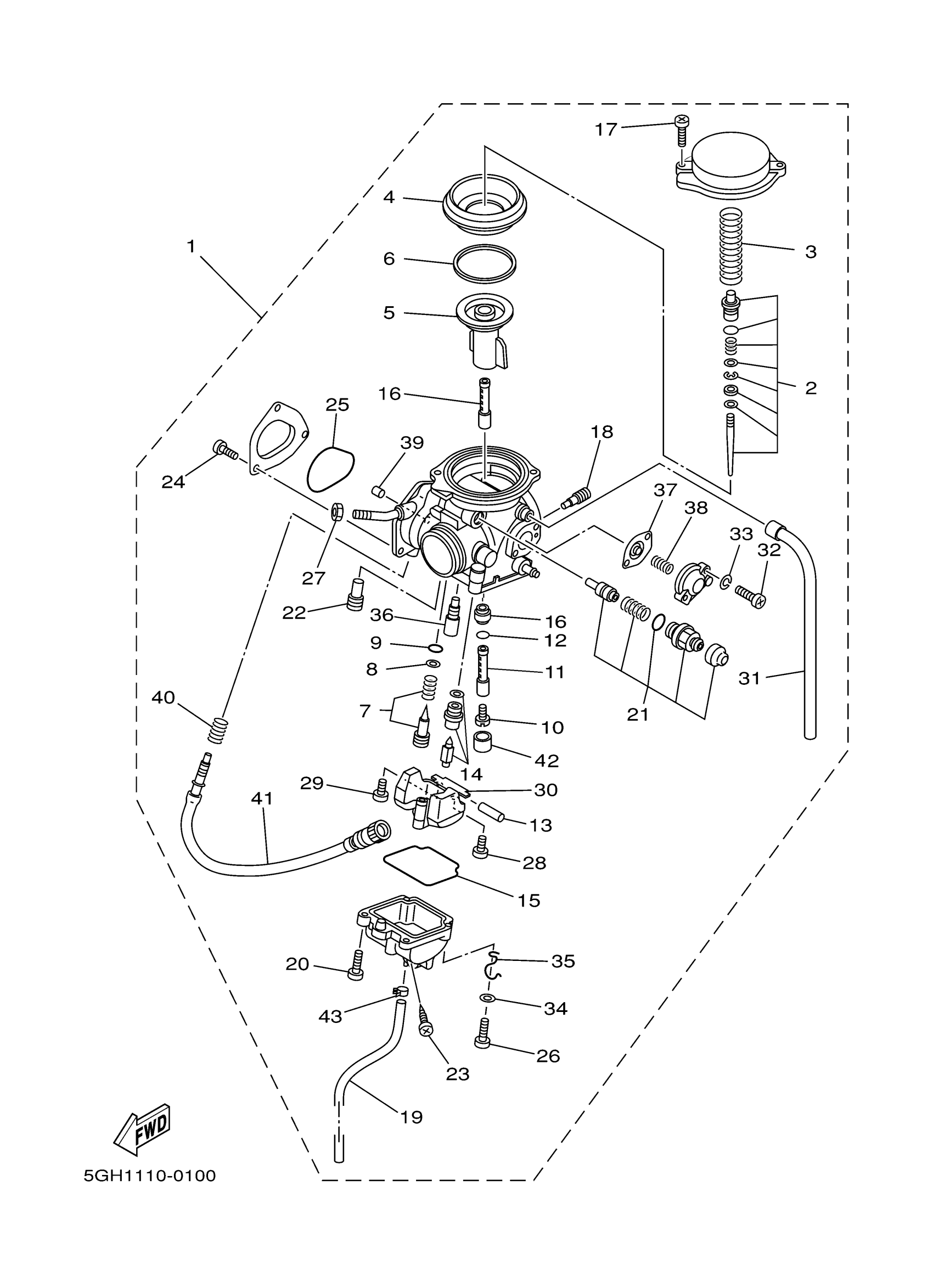

Yamaha YFM400FAMC (KODIAK 4WD) 5GH2 2000 CARBURETOR Diagram
#
1
CARBURETOR ASSY 1
5GH-14101-01-00
Unavailable
1
CARBURETOR ASSY 1
5GH-14101-10-00
Unavailable
2
. NEEDLE SET
5GH-1490J-00-00
Unavailable
2
. NEEDLE SET
5GH-1490J-10-00
Unavailable
7
. PILOT SCREW SET
5GH-14105-00-00
Unavailable
11
HOLDER
5GH-14261-00-00
Unavailable
12
O-RING
583-14561-00-00
Unavailable
13
PIN, FLOAT
127-14186-00-00
Unavailable
14
NEEDLE VALVE SET
5UH-14107-20-00
Unavailable
15
O-RING
5DM-14561-00-00
Unavailable
16
NOZZLE, MAIN
5DM-14141-40-00
Unavailable
17
SCREW
4KM-14216-00-00
Unavailable
18
JET, MAIN (# 80)
1HX-14231-16-00
Unavailable
19
PIPE
4KB-14193-20-00
Unavailable
20
SCREW, PAN HEAD (E56)
98580-04010-00
Unavailable
21
STARTER SET
5GH-1410A-00-00
Unavailable
22
JET, MAIN (# 70)
3G2-14231-14-00
Unavailable
23
PLUG, DRAIN
12R-14191-00-00
Unavailable
24
SCREW, PAN HEAD(3XP)
98517-04006-00
Unavailable
25
O-RING
4WV-14147-10-00
Unavailable
26
SCREW, PAN HEAD
98517-04016-00
Unavailable
27
NUT, CABLE ADJUSTING
522-14161-00-00
Unavailable
28
SCREW, PAN HEAD(JG1)
98507-04008-00
Unavailable
29
SCREW
1FN-14565-00-00
Unavailable
30
FLOAT
5DM-14985-00-00
Unavailable
31
PIPE
5GH-14197-00-00
Unavailable
32
SCREW, PAN HEAD(GA5)
98580-04014-00
Unavailable
33
YBS67-4 WASHER, SPRING
92990-04100-00
Unavailable
34
WASHER(JF2)
92907-04600-00
Unavailable
35
CLIP
5GH-14937-00-00
Unavailable
36
JET, PILOT (# 17.5)
4KM-14142-17-00
Unavailable
37
DIAPHRAGM ASSY
5AP-14940-00-00
Unavailable
38
. SPRING
4XY-14589-00-00
Unavailable
39
GUIDE, CABLE
1UY-14155-00-00
Unavailable
40
SPRING, THROTTLE STOP
137-14133-00-00
Unavailable
41
THROTTLE SCREW SET
5GH-14103-01-00
Unavailable
42
RING
5GH-14918-00-00
Unavailable
43
CLIP
90467-06194-00
Unavailable
