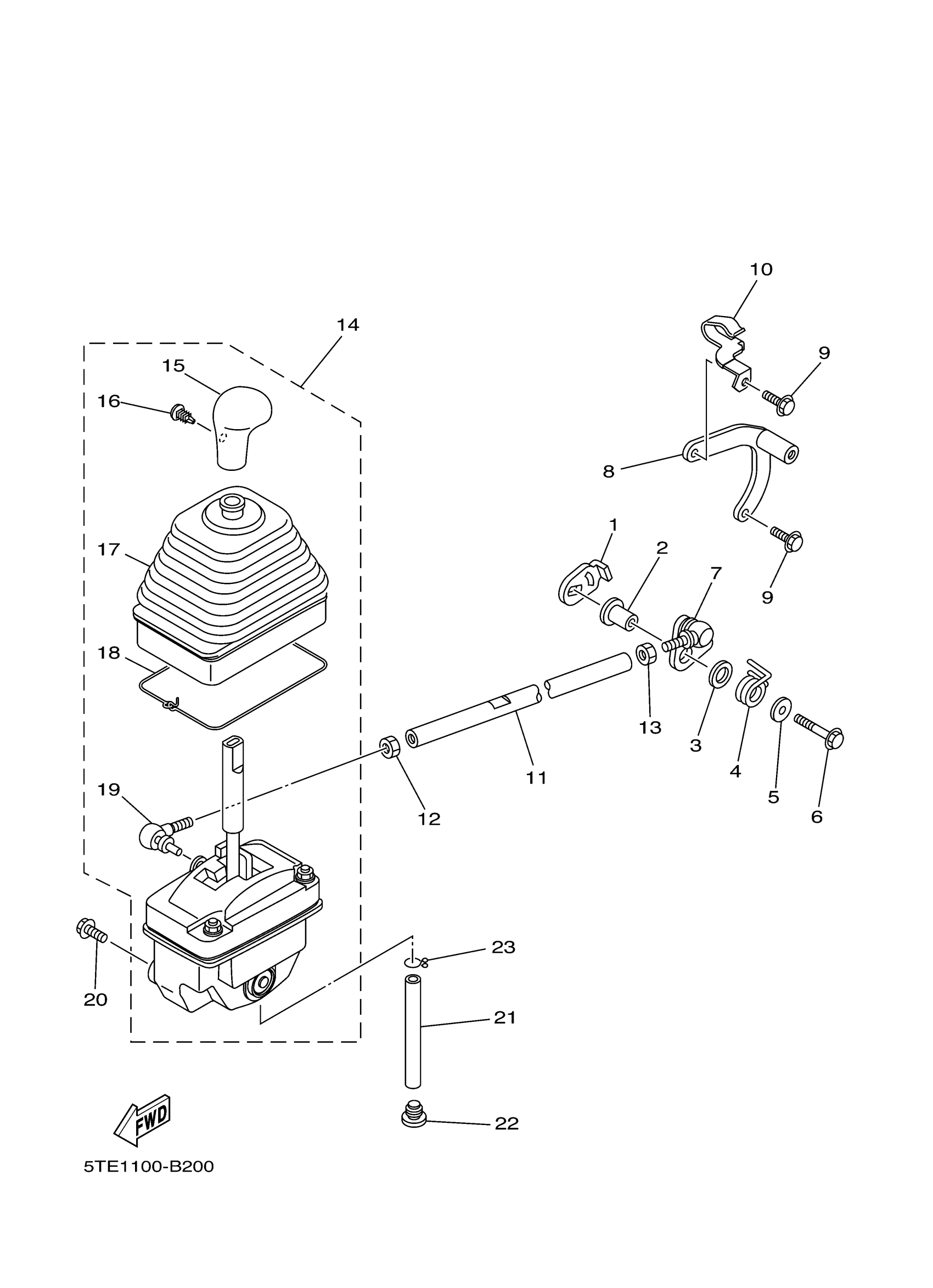

Yamaha YFM400FAHR (KODIAK 4X4 CAMO HARDWOODS) 5TE5 2003 SHIFT SHAFT Diagram

#

Description
Price

1

LEVER

4SH-18198-00-00

$18.17

2

COLLAR

90387-0613B-00

$6.76

3

WASHER, PLATE

90201-13013-00

$5.86

4

SPRING, TORSION

90508-35012-00

Unavailable

5

WASHER, PLATE

90201-06M02-00

$2.20

6

BOLT, FLANGE

95817-06035-00

$5.02

7

LEVER

5TE-18191-00-00

Unavailable

8

BRACKET

5TE-18128-00-00

Unavailable

9

BOLT, WASHER BASED(JA9)

90105-06696-00

$5.86

10

CLAMP(3JD)

90465-08336-00

$9.17

11

ROD, SHIFT

5TE-18115-00-00

Unavailable

12

NUT(1KT)

90170-08358-00

$6.22

13

NUT, HEXAGON SMALL

95317-08700-00

$6.57

14

SHIFTER ASSY

5UH-18300-02-00

Unavailable

15

KNOB, SHIFT LEVER

5TE-18174-00-00

Unavailable

16

RIVET(81E)

90269-05055-00

Unavailable

17

BOOTS, SEALING

5GH-18131-00-00

Unavailable

18

STOPPER, RUBBER

5GH-18617-00-00

Unavailable

19

JOINT 2

1KT-18157-00-00

Unavailable

20

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

21

HOSE

90446-16001-00

Unavailable

22

PLUG, DRAIN

5UH-E4191-00-00

Unavailable

23

CLIP (806-24358-00)

90467-15012-00

Unavailable
