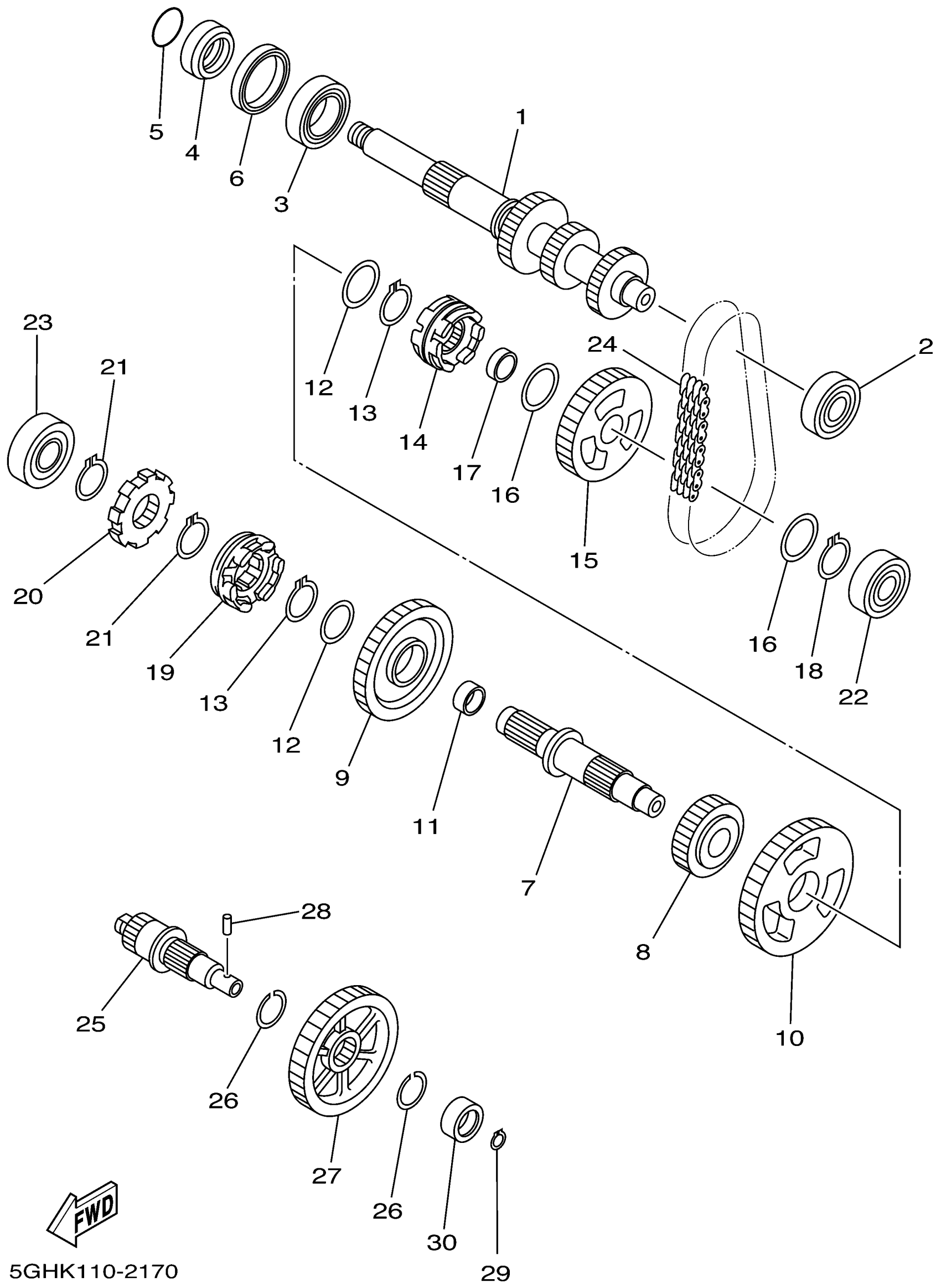

Yamaha YFM400FAHP (KODIAK 4WD HUNTER) 5GHR 2002 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5GH-17681-11-00

$382.99

2

BEARING (7K2)

93306-00423-00

$37.99

3

BEARING (5X5)

93306-20627-00

$75.99

4

COLLAR

90387-26001-00

$40.99

5

O-RING

93210-26001-00

$5.60

6

OIL SEAL

93102-42004-00

$30.99

7

DRIVE AXLE ASSY

5GH-17402-01-00

$131.99

8

GEAR, MIDDLE DRIVE(24T)

5GH-17582-00-00

$116.99

9

GEAR, HIGH WHEEL(38T)

5GH-17223-00-00

$161.99

10

GEAR, LOW WHEEL

99999-03860-00

$150.99

11

BRG,CYL-CAL ROLLER 15G KY

93310-32590-00

$34.99

12

WASHER, PLATE(8BB)

90201-250R9-00

$5.60

13

CIRCLIP (4L0)

93440-25084-00

$5.60

14

CLUTCH, DOG

5GT-17285-00-00

Unavailable

15

SPROCKET, DRIVEN

5GH-17453-10-00

Unavailable

16

WASHER PLATE 168171160000

90201-20278-00

Unavailable

17

. BEARING

93310-420F2-00

Unavailable

18

CIRCLIP (525)

93410-20038-00

Unavailable

19

CLUTCH, DOG

5GH-17285-00-00

Unavailable

20

STOPPER

5GH-17473-00-00

Unavailable

21

CIRCLIP (4L0)

93440-25084-00

$5.60

22

BEARING

93306-30212-00

Unavailable

23

BEARING(3LD)

93306-20464-00

Unavailable

24

CHAIN

94591-54038-00

Unavailable

25

SHAFT

5GT-17523-00-00

Unavailable

26

CIRCLIP (4L0)

93440-25084-00

$5.60

27

GEAR, MIDDLE DRIVEN(39T)

5GH-17583-00-00

Unavailable

28

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

29

CIRCLIP(59V)

93440-14155-00

Unavailable

30

BEARING

93311-42077-00

Unavailable
