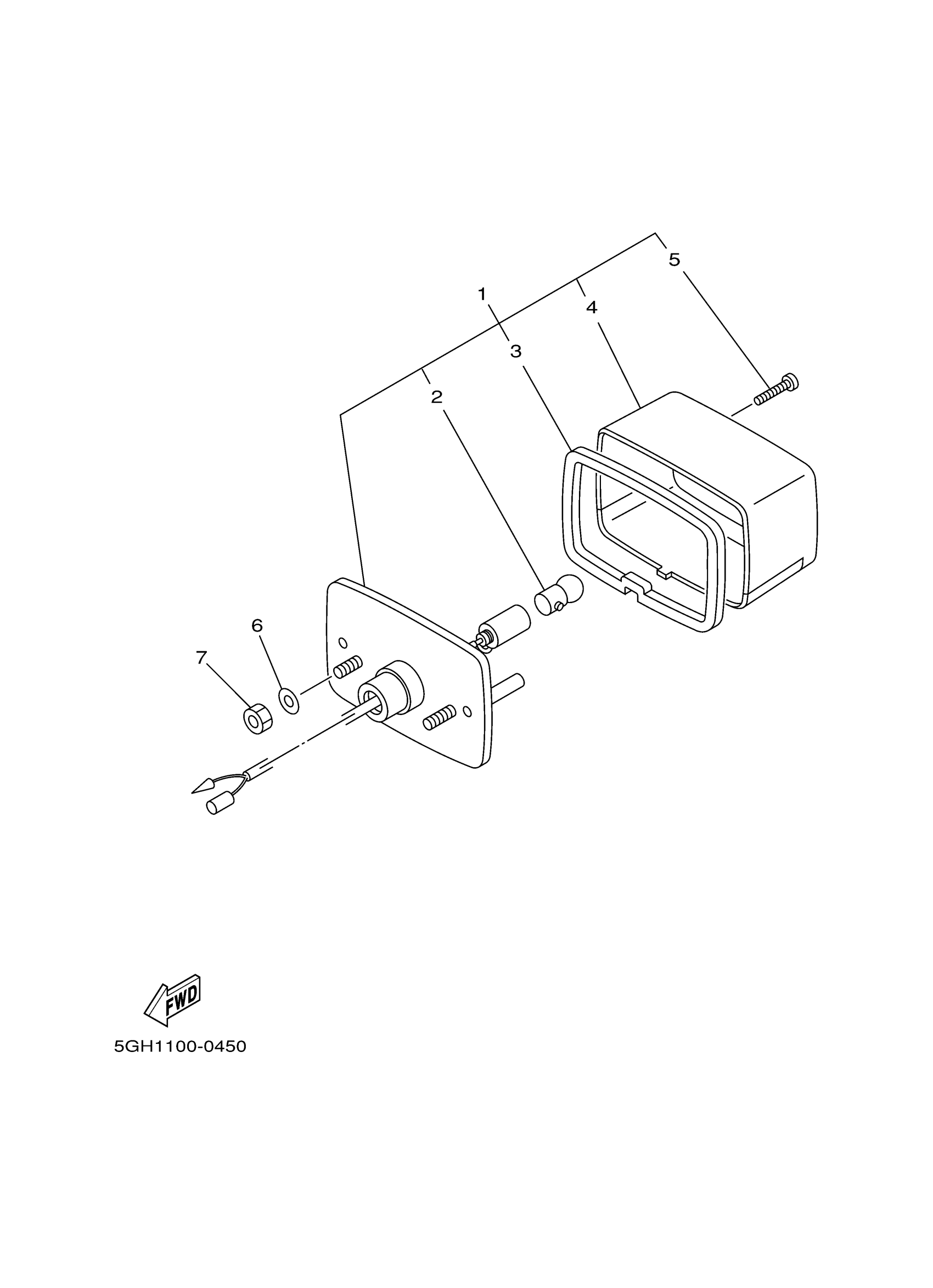

Yamaha YFM400FAHMC (KODIAK 4WD REALTREE X-TRA) 5GH7 2000 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

4XE-84710-00-00

$48.90

2

BULB (12V-7.5W)

3GD-84714-00-XX

Unavailable

3

GASKET, TAIL LENS

1K8-84523-00-00

Unavailable

4

LENS, TAIL LAMP

1K8-84521-00-00

$18.38

5

YBS83-430 SCREW,PANH. TAPPING

97780-40130-00

$5.29

6

WASHER PLATE 248217570000

90201-06074-00

$5.86

7

NUT, NYLON

95707-06300-00

$2.98
