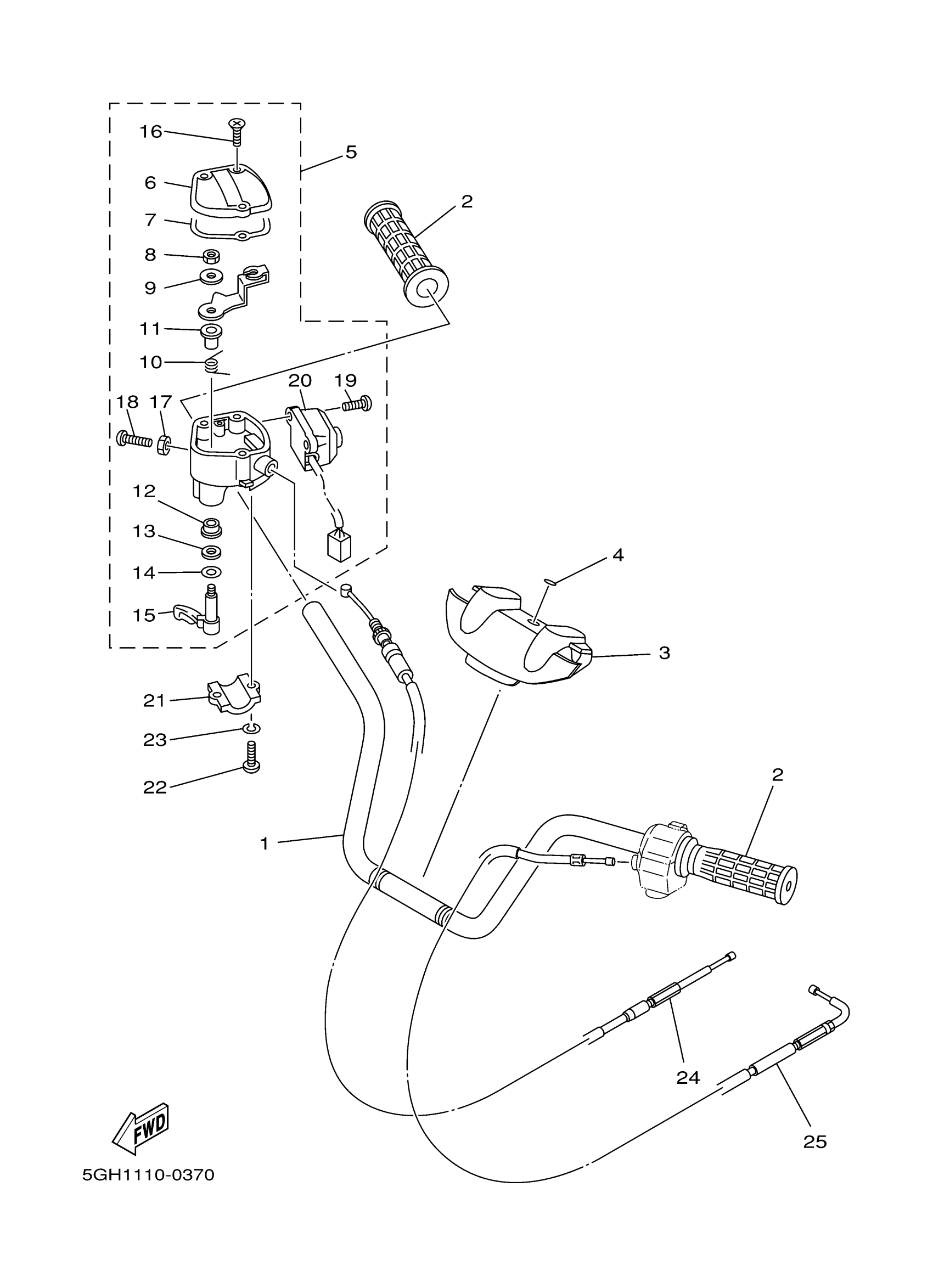

Yamaha YFM400FAHMC (KODIAK 4WD REALTREE X-TRA) 5GH7 2000 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLEBAR

5GH-26111-00-00

Unavailable

2

GRIP (L.H)

3GB-26241-00-00

$21.99

3

PROTECTOR, HANDLEBAR

5GH-26124-00-00

Unavailable

4

TUNING FORK MARK

5GT-2836B-10-00

$16.49

5

THROTTLE LEVER ASSY

4WV-26250-12-00

Unavailable

6

. CAP, GEAR

4KB-2628F-00-00

Unavailable

7

GASKET

4KB-2628G-00-00

$13.49

8

NUT, U

95617-05100-00

$9.49

9

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

10

SPRING

1NV-26304-00-00

$11.99

11

COLLAR

1NV-26259-01-00

$7.99

12

COLLAR

1NV-2625K-00-00

$6.99

13

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

14

WASHER

1NV-26129-00-00

$6.99

15

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

16

SCREW(3HE)

90149-04278-00

Unavailable

17

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

18

SCREW, PAN HEAD

98517-05020-00

Unavailable

19

. SCREW, WITH WASHER

97607-04210-00

Unavailable

20

SWITCH, HANDLE 1

4WV-83976-00-00

Unavailable

21

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

22

SCREW, PAN HEAD

98517-05020-00

Unavailable

23

WASHER(3SX)

92907-05100-00

Unavailable

24

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

25

CABLE, STARTER 1

5GH-26331-02-00

Unavailable
