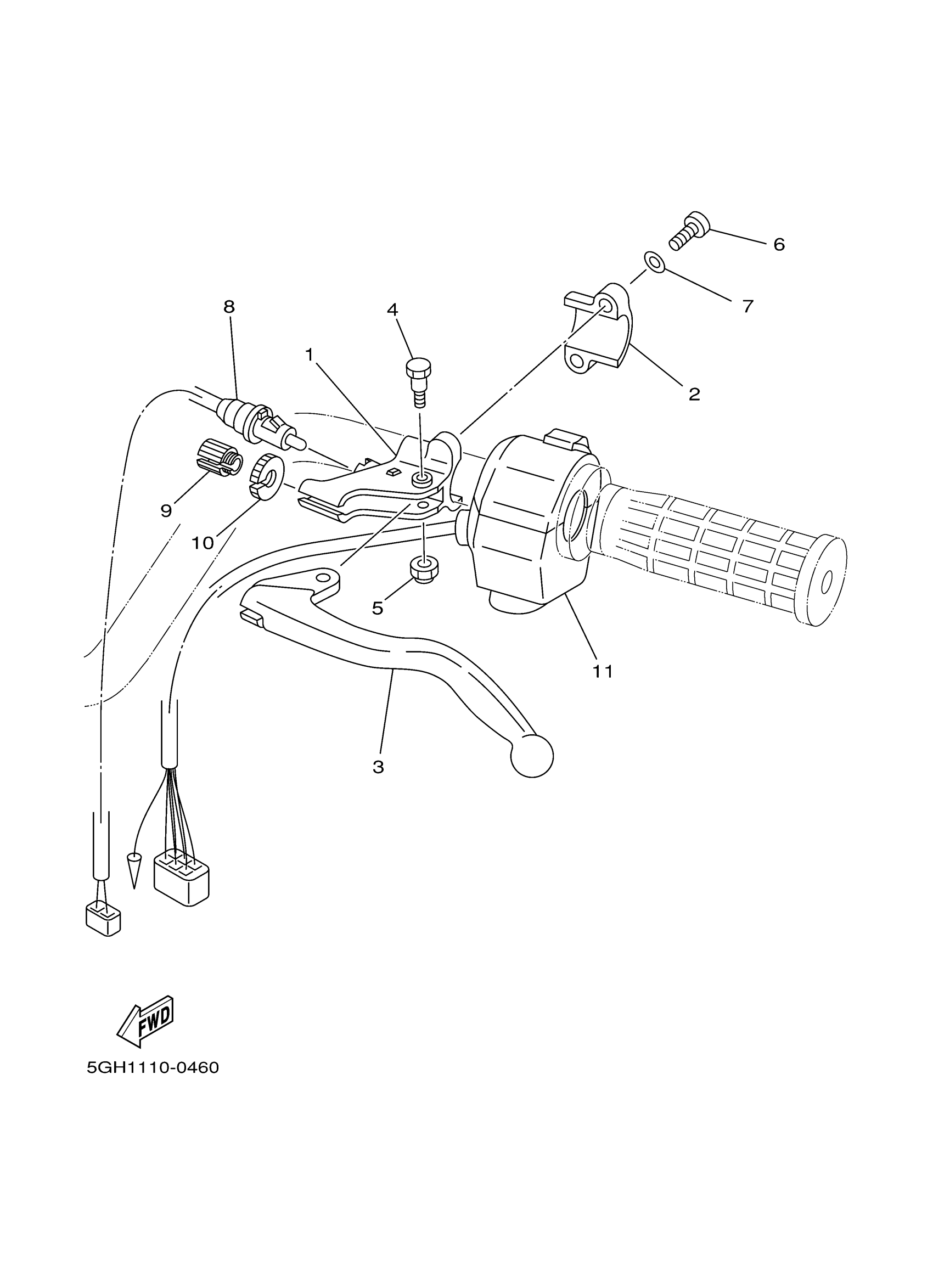

Yamaha YFM400FAHMC (KODIAK 4WD REALTREE X-TRA) 5GH7 2000 HANDLE SWITCH LEVER Diagram

#

Description
Price

1

HOLDER, LEVER 1

1YW-82911-02-00

Unavailable

2

HOLDER, LEVER LOWER 1

2XJ-82913-00-00

Unavailable

3

LEVER 1

3FA-83912-01-00

$32.48

4

BOLT (2YK1)

90109-06799-00

$4.23

5

NUT, SELF-LOCKING

95617-06100-00

$2.17

6

SCREW, PAN

98517-06020-00

$1.79

7

WASHER, SPRING

92907-06100-00

$0.98

8

FRONT STOP SWITCH ASSY

5GH-83980-00-00

$56.55

9

BOLT

90123-08002-00

$8.57

10

NUT

90179-08030-00

$3.63

11

SWITCH, HANDLE 3

5GH-83973-01-00

$164.71
