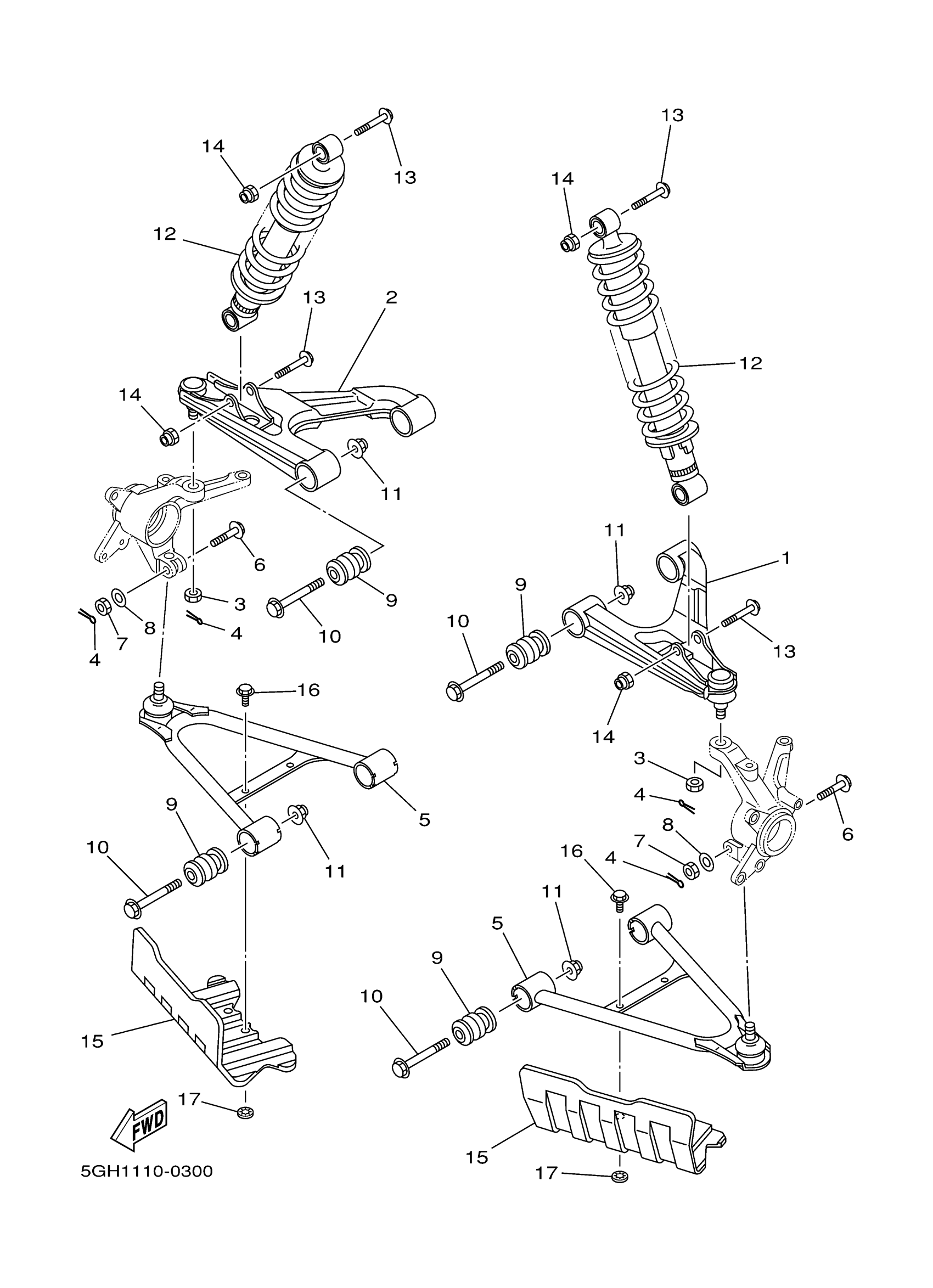

Yamaha YFM400FAHMC (KODIAK 4WD REALTREE X-TRA) 5GH7 2000 FRONT SUSPENSION WHEEL Diagram

FRONT UPPER ARM COMP. (LEFT)

5GH-23540-00-00

Unavailable

FRONT UPPER ARM COMP. (RIGHT)

5GH-23550-00-00

Unavailable

NUT, CASTLE

90171-10001-00

$7.49

PIN, COTTER

91490-20025-00

$1.99

FRONT LOWER ARM COMP. (LEFT)

5GH-23570-00-00

$293.99

BOLT, FLANGE (2XJ)

90105-10549-00

$7.49

NUT(6TD)

95337-10600-00

$9.49

WASHER (7A9)

90201-100F7-00

$9.49

BUSH

2HR-23526-00-00

$20.99

BOLT, WASHER BASED (39E)

90105-10286-00

$8.49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

SHOCK ABSORBER ASSY

5GH-23350-00-00

$324.99

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

COVER, LOWER 1

5GH-23123-00-00

$17.49

BOLT, FLANGE

95817-06012-00

Unavailable

NUT, SPRING(4ES)

90183-06069-00

Unavailable
