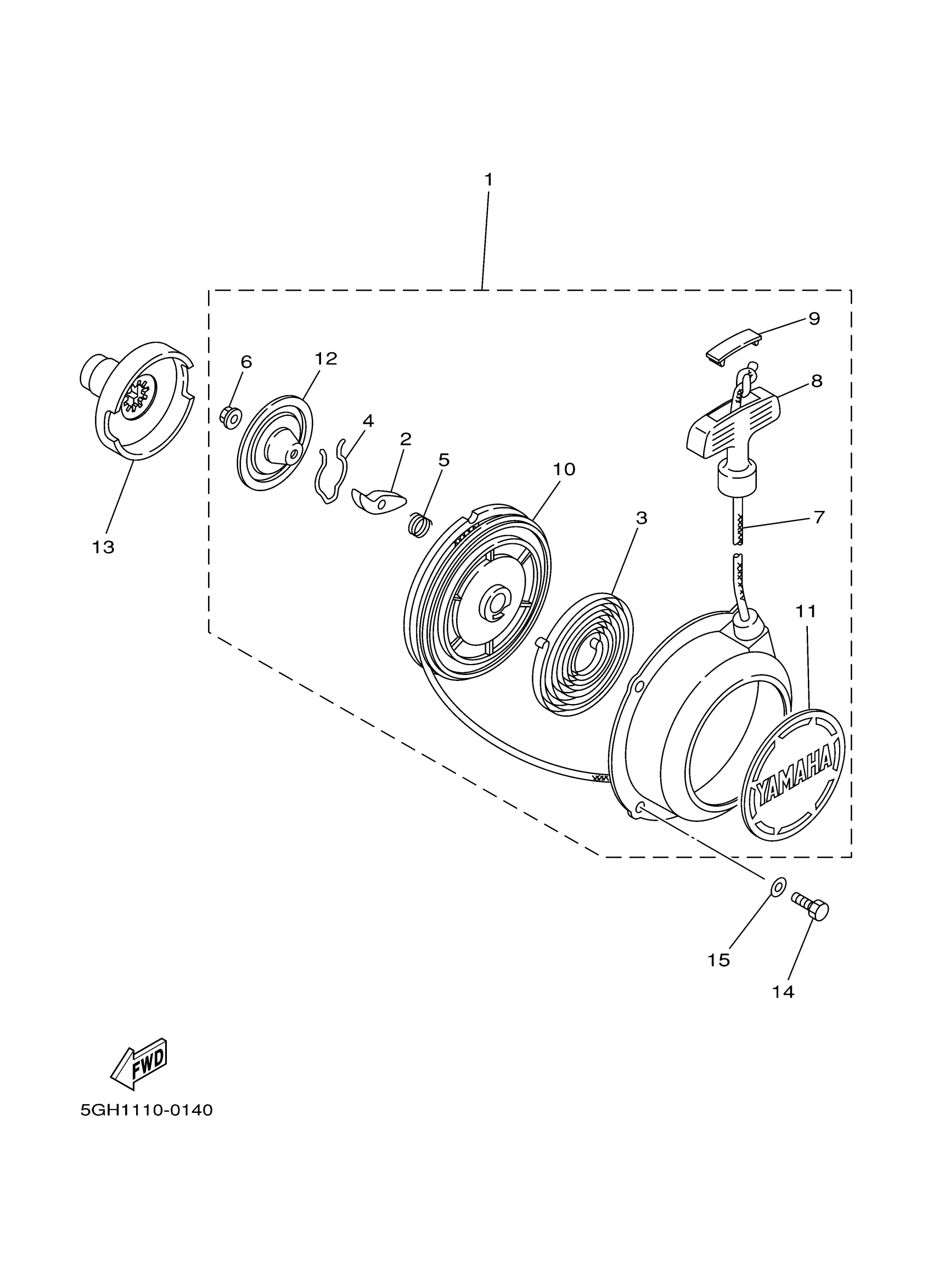

Yamaha YFM400AR (KODIAK 400 2WD) 5VH1 2003 STARTER Diagram

#

Description
Price

1

STARTER ASSY

5GH-15710-21-00

Unavailable

2

PAWL, DRIVE

21V-15741-00-00

$23.99

3

SPRING, STARTER

21V-15713-00-00

$25.99

4

SPRING, FRICTION

21V-15715-01-00

$13.49

5

SPRING

21V-15767-00-00

$7.99

6

NUT, FLANGE

95702-06500-00

$2.39

7

WIRE, STARTER (BRAIDED)

89A-15751-00-00

$33.99

8

HANDLE, STARTER

3X3-15755-00-00

$29.99

9

CAP, KNOB

21V-15779-00-00

$7.99

10

DRUM, SHEAVE

24W-15714-00-00

$57.99

11

EMBLEM

5GH-15443-01-00

Unavailable

12

PLATE, DRIVE

21V-15716-01-00

Unavailable

13

PULLEY, STARTER

1UY-15723-00-00

$126.99

14

BOLT(8CP)

97017-06014-00

$8.49

15

WASHER(6TA)

92907-06600-00

$2.72
