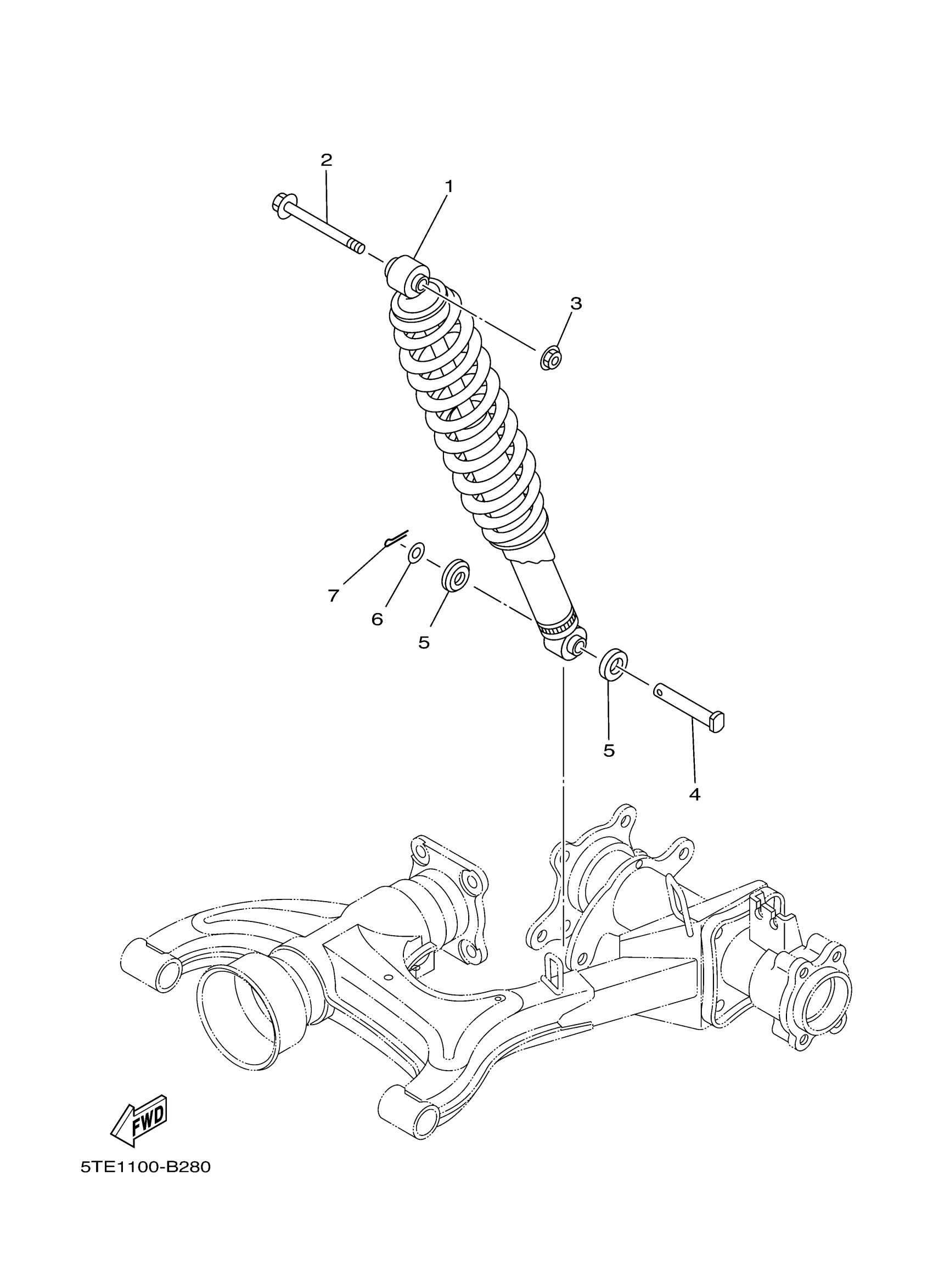

Yamaha YFM400AR (KODIAK 400 2WD) 5VH1 2003 REAR SUSPENSION Diagram

#

Description

Price

1

SHOCK ABSORBER ASSY

5ND-F2210-10-00

$198.35

2

BOLT, FLANGE

90105-12889-00

Unavailable

3

NUT, SELF LOCKING (1M1)

90185-12072-00

$7.97

4

PIN, CLEVIS (10V)

90240-12092-00

$7.32

5

COVER, THRUST

1W1-22128-00-00

$16.58

6

WASHER, PLATE(55K)

90201-127J6-00

$5.43

7

PIN, COTTER

91401-30025-00

$6.00
