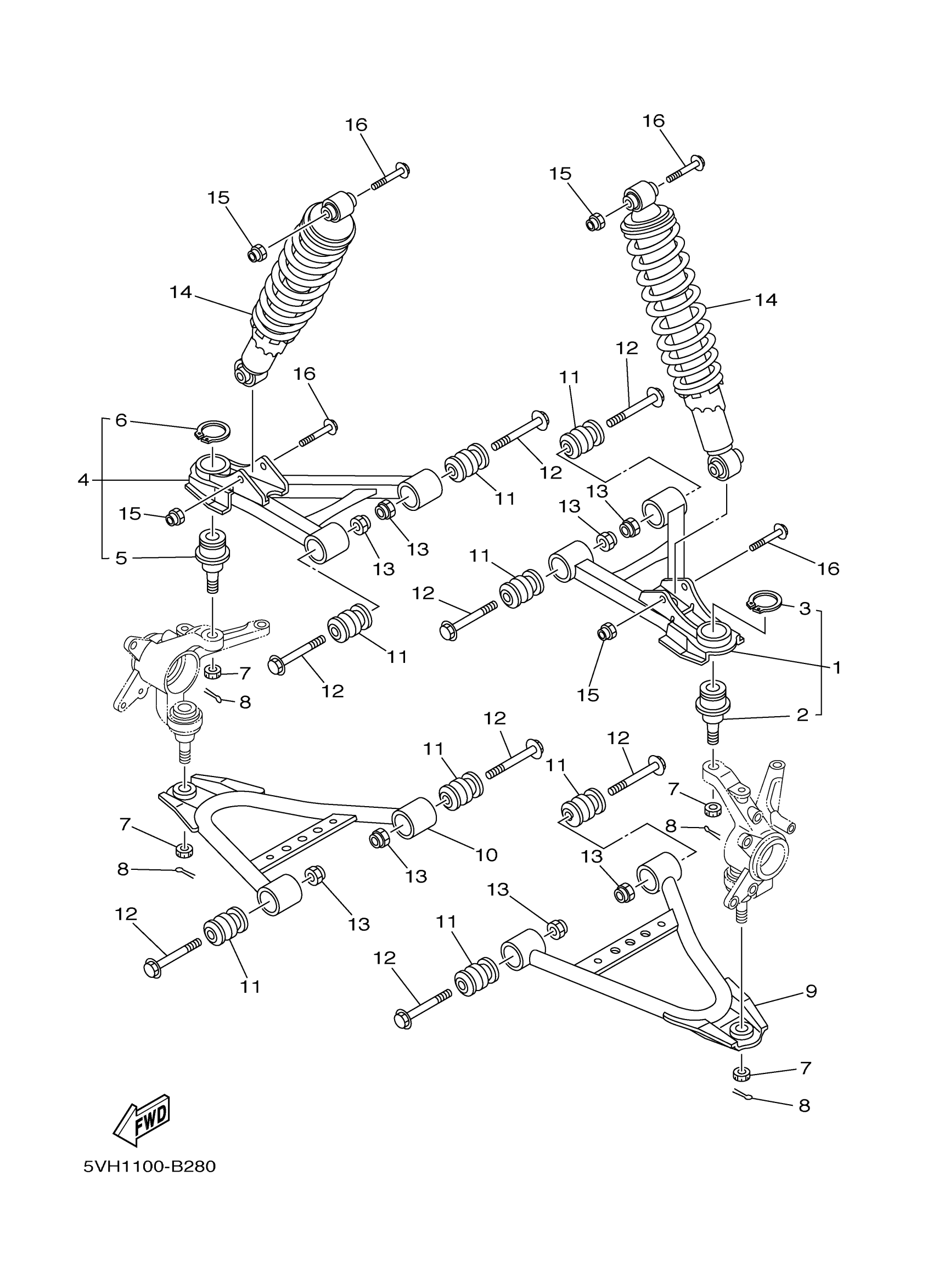

Yamaha YFM400AR (KODIAK 400 2WD) 5VH1 2003 FRONT SUSPENSION WHEEL Diagram

Description

Price

FRONT UPPER ARM COMP. (LEFT)

5ND-F3540-00-00

Unavailable

BALL JOINT 1

37S-23549-01-00

$76.99

CIRCLIP

93410-32075-00

$9.49

FRT. UPPER ARM (R)

5ND-F3550-13-00

$138.99

BALL JOINT 1

37S-23549-01-00

$76.99

CIRCLIP

93410-32075-00

$9.49

NUT, CASTLE

90171-12001-00

$7.49

PIN, COTTER

91490-25020-00

$3.19

ARM, FR. LWR. LH.

5ND-F357A-01-00

$95.99

ARM, FR. LWR. RH.

5ND-F358A-01-00

$95.99

BUSH

2HR-23526-00-00

$20.99

BOLT, FLANGE

90105-10267-00

$9.49

NUT, SELF-LOCKING

90185-10012-00

$9.49

SHOCK ABSORBER ASSY

5ND-F3350-01-00

Unavailable

NUT, SELF-LOCKING

90185-10012-00

$9.49

BOLT, FLANGE

90105-10841-00

Unavailable
