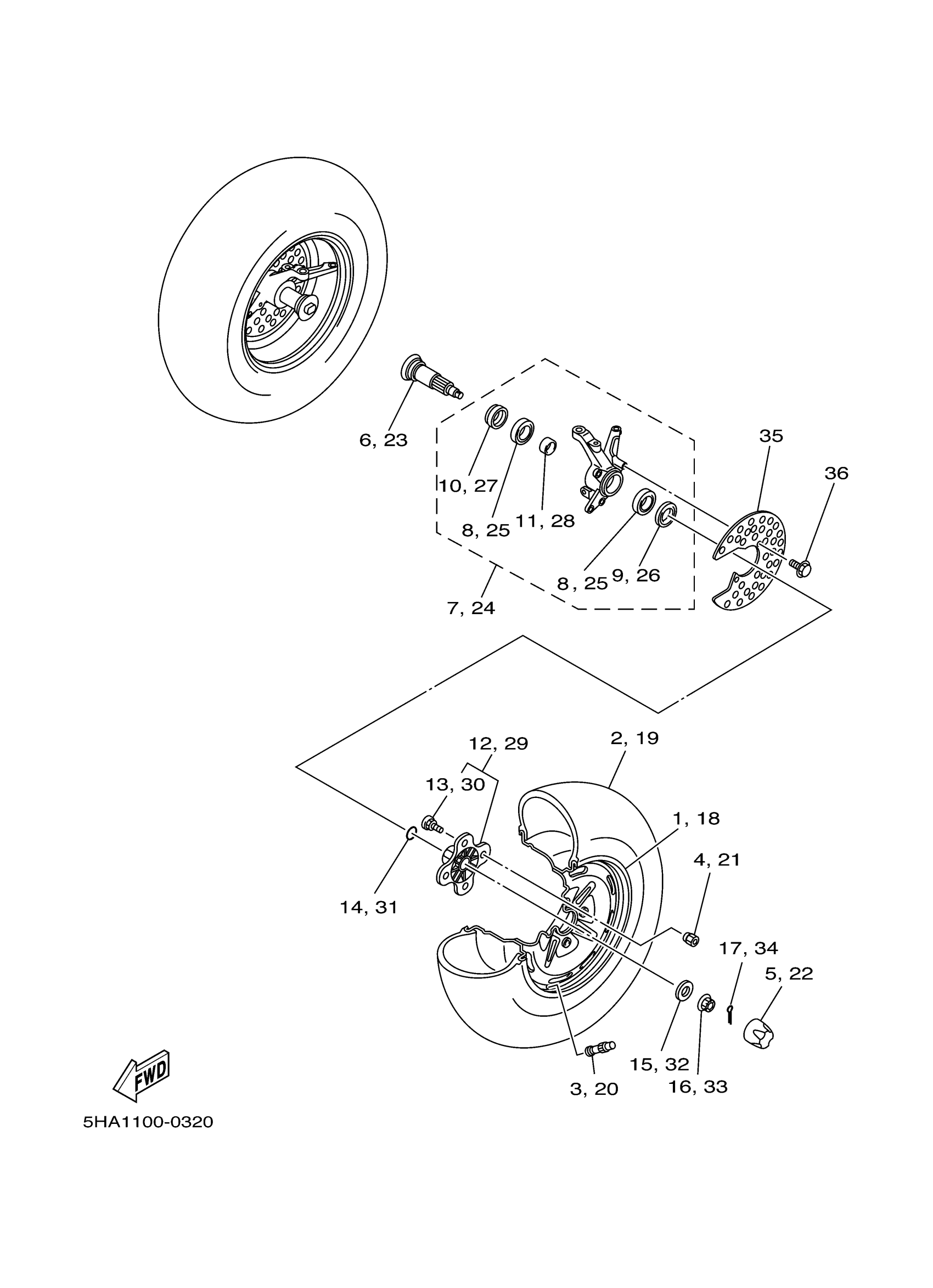

Yamaha YFM400AN (KODIAK 2WD) 5HA7 2001 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

5GH-25180-40-00

Unavailable

2

TIRE (AT25 X 8-12, DUNLOP-KT123)

94108-1216D-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$13.50

4

NUT(2HR)

90179-10540-00

$3.67

5

CAP, WHEEL

5GT-2512A-00-00

$8.13

6

AXLE, WHEEL

5HA-25181-00-00

Unavailable

7

STEERING KNUCKLE ASSY (LEFT)

5GH-23501-01-00

Unavailable

8

BEARING

93306-00615-00

$45.19

9

OIL SEAL

93106-38046-00

$13.70

10

OIL SEAL

93106-38047-00

$22.42

11

SPACER(2HR)

90560-30325-00

$10.60

12

HUB, FRONT

5GH-25111-00-00

Unavailable

13

BOLT, SERRATION

90114-10014-00

$2.70

14

O-RING(47X)

93210-27666-00

$4.52

15

WASHER, PLATE(2HR)

90201-162L6-00

$9.68

16

NUT, CASTLE

90171-16001-00

Unavailable

17

PIN, COTTER

91490-30030-00

Unavailable

18

WHEEL COMP.

5GH-25180-40-00

Unavailable

19

TIRE (AT25 X 8-12, DUNLOP-KT123)

94108-1216D-00

Unavailable

20

VALVE, RIM(2GH)

93900-00030-00

$13.50

21

NUT(2HR)

90179-10540-00

$3.67

22

CAP, WHEEL

5GT-2512A-00-00

$8.13

23

AXLE, WHEEL

5HA-25181-00-00

Unavailable

24

STEERING KNUCKLE ASSY (RIGHT)

5GH-23502-01-00

Unavailable

25

BEARING

93306-00615-00

$45.19

26

OIL SEAL

93106-38046-00

$13.70

27

OIL SEAL

93106-38047-00

$22.42

28

SPACER(2HR)

90560-30325-00

$10.60

29

HUB, FRONT

5GH-25111-00-00

Unavailable

30

BOLT, SERRATION

90114-10014-00

$2.70

31

O-RING(47X)

93210-27666-00

$4.52

32

WASHER, PLATE(2HR)

90201-162L6-00

$9.68

33

NUT, CASTLE

90171-16001-00

Unavailable

34

PIN, COTTER

91490-30030-00

Unavailable

35

RING, WHEEL 1 (LEFT)

4KB-2514A-01-00

Unavailable

36

BOLT, FLANGE

95817-06012-00

Unavailable
