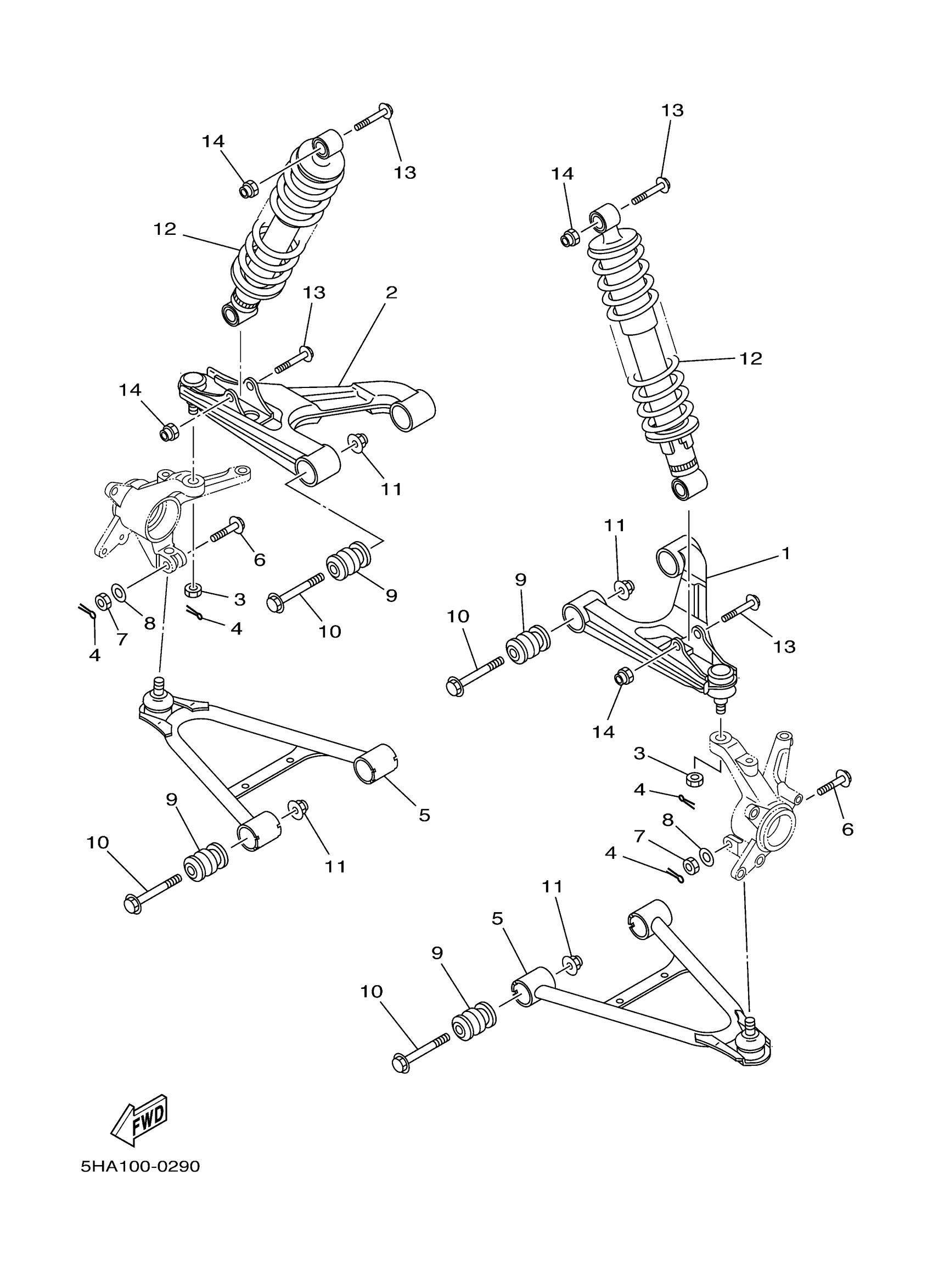

Yamaha YFM400AN (KODIAK 2WD) 5HA7 2001 FRONT SUSPENSION WHEEL Diagram

#

Description
Price

1

FRONT UPPER ARM COMP. (LEFT)

5GH-23540-00-00

Unavailable

2

FRONT UPPER ARM COMP. (RIGHT)

5GH-23550-00-00

Unavailable

3

NUT, CASTLE

90171-10001-00

$7.49

4

PIN, COTTER

91490-20025-00

$1.99

5

FRONT LOWER ARM COMP. (LEFT)

5GH-23570-00-00

$293.99

6

BOLT, FLANGE (2XJ)

90105-10549-00

$7.49

7

NUT(6TD)

95337-10600-00

$9.49

8

WASHER (7A9)

90201-100F7-00

$9.49

9

BUSH

2HR-23526-00-00

$20.99

10

BOLT, WASHER BASED (39E)

90105-10286-00

$8.49

11

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

12

SHOCK ABSORBER ASSY

5HA-23350-00-00

Unavailable

13

BOLT, WASHER BASED(59V)

90105-10388-00

$10.49

14

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49
