Description

Price

1

FRONT FENDER COMP. (PASTEL DEEP GREEN)

5GH-W2151-00-00

Unavailable

1

FRONT FENDER COMP. (ROMANTIQUE ROUGE)

5GH-W2151-10-00

Unavailable

1

FRONT FENDER COMP. (DARK GRAYISH YELLOW SOLID 1)

5GH-W2151-20-00

Unavailable

2

BOLT, WITH WASHER

90119-06152-00

$7.49

3

BOLT, WITH WASHER

90119-06152-00

$7.49

4

BOLT, WITH WASHER

90119-06152-00

$7.49

5

PANEL, FRONT

5GH-23391-00-00

Unavailable

6

RIVET(4JH)

90269-07076-00

$7.49

7

GRILLE, FRONT

5GH-28309-00-00

Unavailable

8

TUNING FORK MARK

5GT-2175B-00-00

Unavailable

9

BOLT, HEXAGON SOCKET HEAD(1FK)

90110-06102-00

$3.76

10

BOLT, WITH WASHER

90119-06152-00

$7.49

11

BOLT, HEXAGON SOCKET HEAD(3GM)

90110-06202-00

$7.49

12

COLLAR

90387-067V1-00

Unavailable

13

CAP

5GH-28349-00-00

$10.99

14

PANEL, CONSOLE 1

5HA-2837L-00-00

Unavailable

15

SCREW, WITH WASHER(52W)

90159-05121-00

Unavailable

16

NUT, SPRING

90183-051A0-00

Unavailable

17

SEAL

59V-14457-00-00

Unavailable

18

CLIP (21V)

90467-22080-00

Unavailable

19

SEAL 1

5GH-21575-00-00

Unavailable

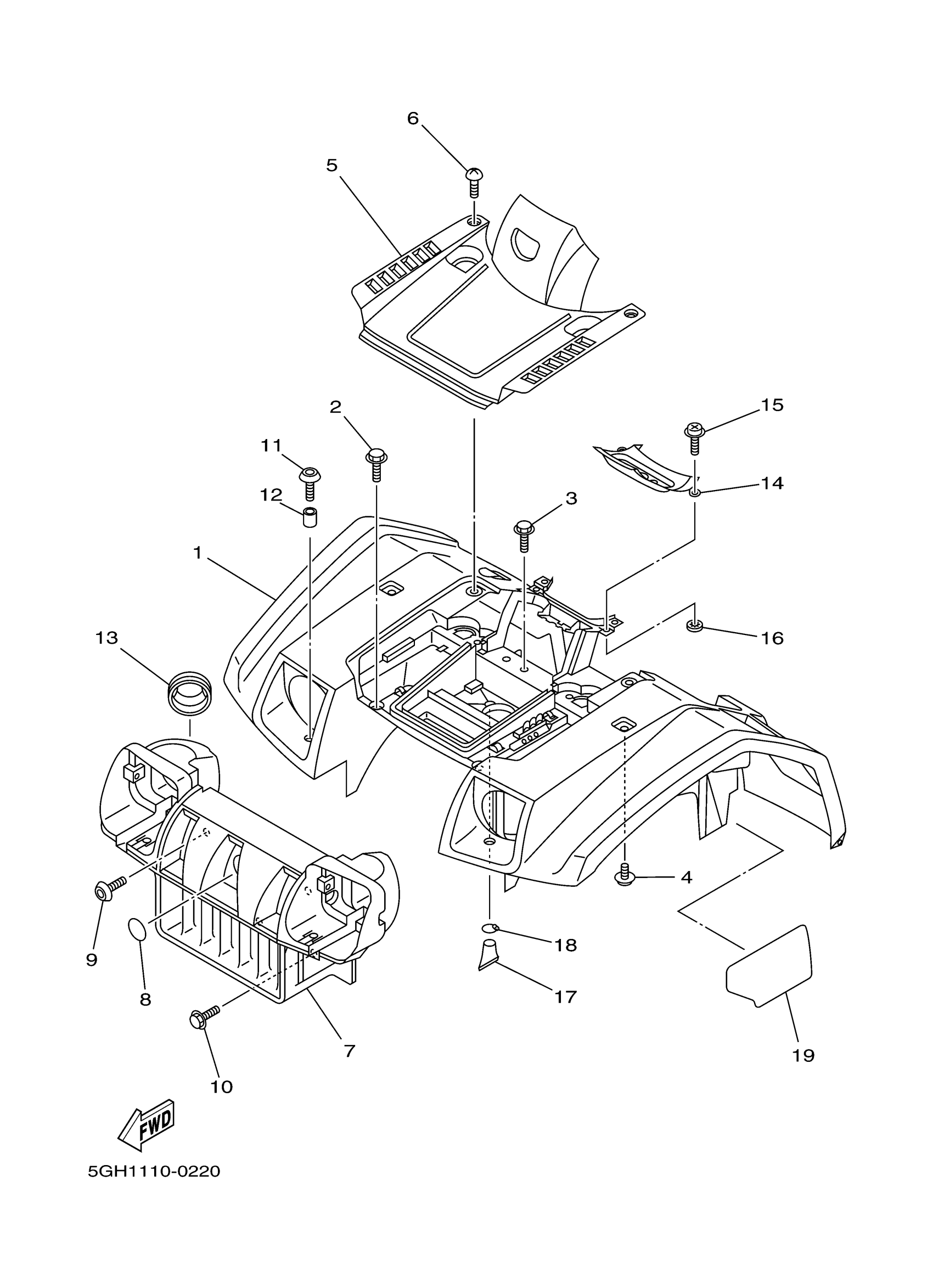

Yamaha YFM400AN (KODIAK 2WD) 5HA7 2001 FRONT FENDER Diagram

FRONT FENDER COMP. (PASTEL DEEP GREEN)

FRONT FENDER COMP. (ROMANTIQUE ROUGE)

FRONT FENDER COMP. (DARK GRAYISH YELLOW SOLID 1)

BOLT, WITH WASHER

BOLT, WITH WASHER

BOLT, WITH WASHER

PANEL, FRONT

RIVET(4JH)

GRILLE, FRONT

TUNING FORK MARK

BOLT, HEXAGON SOCKET HEAD(1FK)

BOLT, WITH WASHER

BOLT, HEXAGON SOCKET HEAD(3GM)

COLLAR

CAP

PANEL, CONSOLE 1

SCREW, WITH WASHER(52W)

NUT, SPRING

SEAL

CLIP (21V)

SEAL 1
