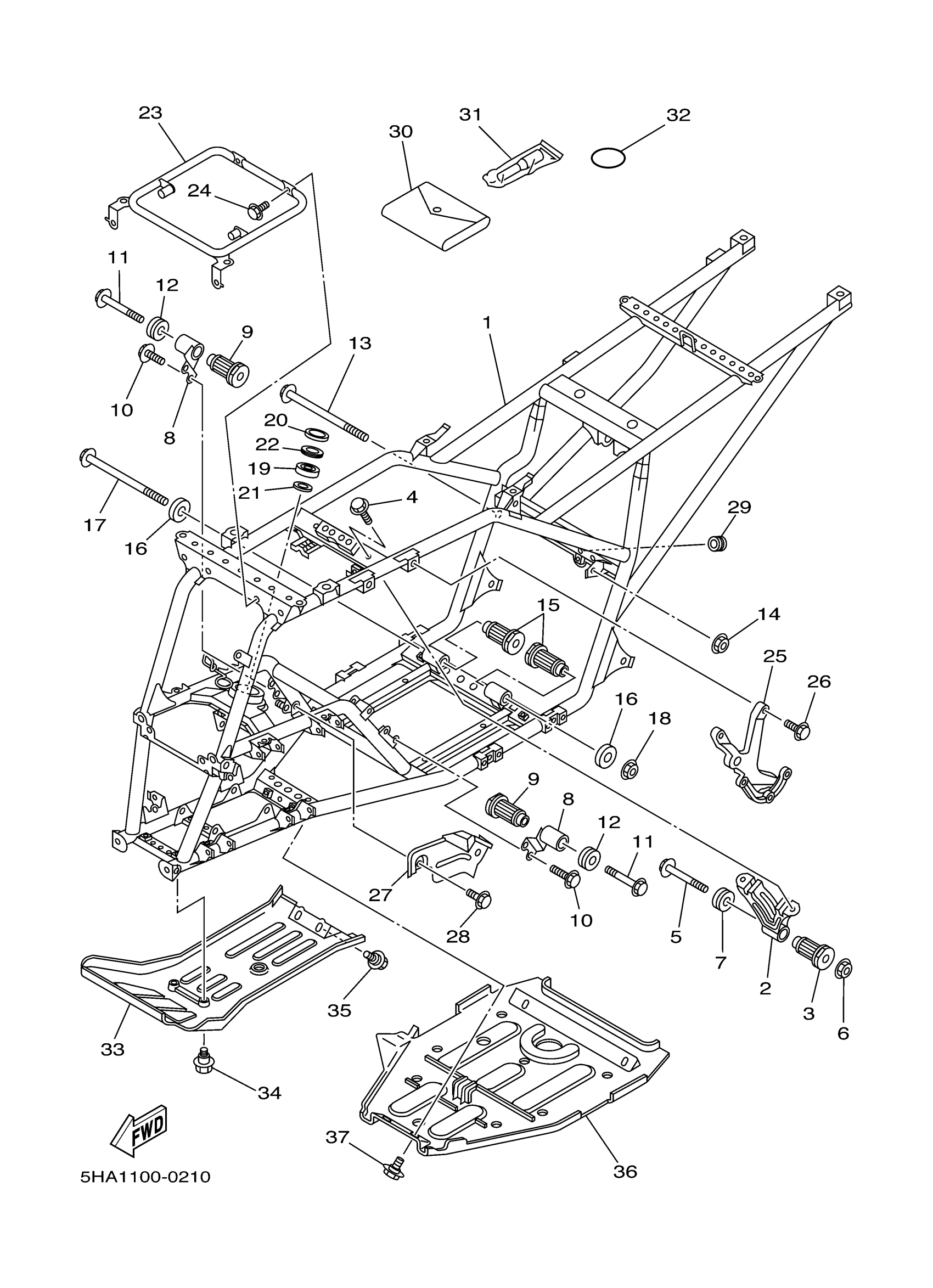

Yamaha YFM400AN (KODIAK 2WD) 5HA7 2001 FRAME Diagram

#

Description
Price

1

FRAME COMP.

5GH-21110-02-00

Unavailable

2

STAY, ENGINE 2

5GH-21315-00-00

Unavailable

3

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

$44.99

4

BOLT, FLANGE

95817-08012-00

$5.49

5

BOLT, FLANGE(6TA)

95817-10110-00

$7.49

6

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

7

DAMPER 2

5GH-21486-00-00

Unavailable

8

STAY, ENGINE 3

5GH-21316-00-00

Unavailable

9

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

$44.99

10

BOLT, FLANGE

95817-08012-00

$5.49

11

BOLT, FLANGE

95817-10080-00

$5.60

12

DAMPER 2

5GH-21486-00-00

Unavailable

13

BOLT, WASHER BASED

90105-10055-00

Unavailable

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

15

DAMPER, ENGINE MOUNT 3

5GH-15336-00-00

$44.99

16

DAMPER

5GH-21488-00-00

Unavailable

17

BOLT, WASHER BASED

90105-10055-00

Unavailable

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

19

BEARING

93306-20348-00

Unavailable

20

OIL SEAL (25X44X6-810)

93102-25081-00

Unavailable

21

OIL SEAL (25X36X8-334)

93102-25099-00

Unavailable

22

HOLDER, BEARING

2GU-23872-00-00

Unavailable

23

STAY, FENDER 1

5GH-21513-00-00

Unavailable

24

BOLT, FLANGE

95817-06012-00

Unavailable

25

ARM

5GH-21585-00-00

Unavailable

26

BOLT, FLANGE(8AB)

95817-08020-00

Unavailable

27

PROTECTOR 1

5GH-22825-00-00

Unavailable

28

BOLT, FLANGE

95817-06010-00

Unavailable

29

GROMMET(3GM)

90480-10517-00

Unavailable

30

TOOL KIT

4WV-28100-00-00

Unavailable

31

GAUGE, AIR

1NV-2811A-01-00

Unavailable

32

O-RING (583 OIL CLEANER)

93210-64297-00

Unavailable

33

GUARD, ENGINE 1

5GH-2147A-00-00

Unavailable

34

BOLT(3KJ)

90109-063F5-00

Unavailable

35

BOLT(3KJ)

90109-063F1-00

Unavailable

36

GUARD, ENGINE 2

5GH-2147E-00-00

Unavailable

37

BOLT(3KJ)

90109-063F1-00

Unavailable
