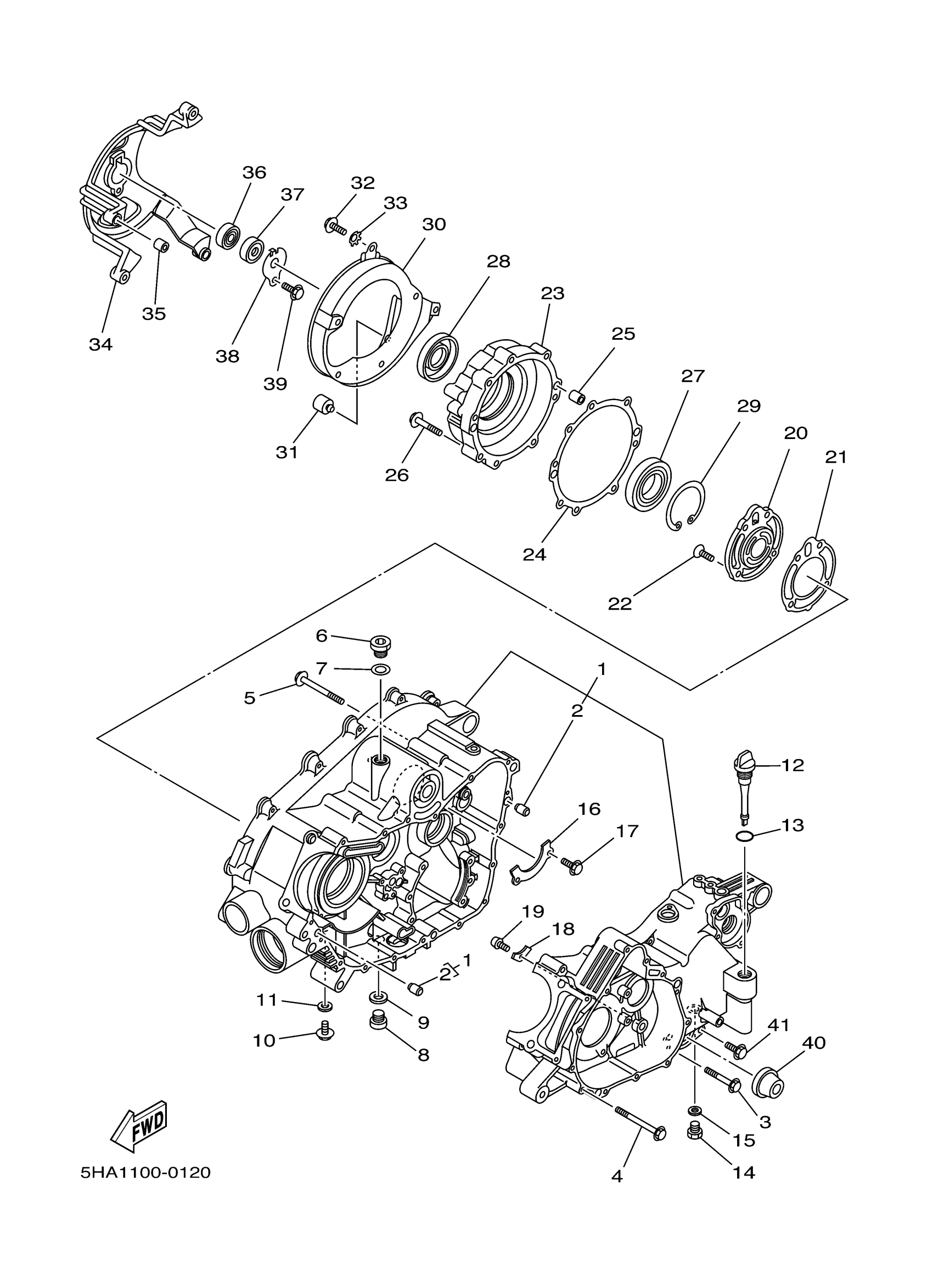

Yamaha YFM400AN (KODIAK 2WD) 5HA7 2001 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

5HA-15100-01-00

Unavailable

2

PIN, DOWEL(3VD)

99530-10114-00

$2.55

3

BOLT, SMALL FLANGE

95027-06040-00

$3.28

4

BOLT, SMALL FLANGE

95027-06065-00

$3.28

5

BOLT, SMALL FLANGE

95027-06065-00

$3.28

6

PLUG, STRAIGHT SCREW (33M)

90340-18101-00

$11.49

7

WASHER, PLATE (22F)

90201-186F1-00

$10.49

8

PLUG, STRAIGHT SCREW

90340-14002-00

$20.99

9

GASKET

214-11198-01-00

$3.17

10

BOLT, FLANGE

95817-08012-00

$5.49

11

GASKET

90430-08119-00

$6.62

12

PLUG, OIL LEVEL

5GH-15362-00-00

Unavailable

13

O-RING (5Y1)

93210-19522-00

$7.49

14

PLUG, STRAIGHT(2E9)

90340-14029-00

$4.29

15

GASKET

214-11198-01-00

$3.17

16

PLATE, BEARING COVER

5GH-15388-00-00

Unavailable

17

BOLT, FLANGE

95817-06012-00

Unavailable

18

PLATE, BEARING COVER

4XM-15383-00-00

Unavailable

19

SCREW, COUNTERSUNK (4H7)

90151-06014-00

Unavailable

20

COVER, AIR CLEANER

5GH-15414-00-00

Unavailable

21

GASKET 1

5GH-15454-00-00

Unavailable

22

SCREW, FLAT

98707-06020-00

Unavailable

23

HOUSING, BEARING 1

5GH-15163-00-00

Unavailable

24

GASKET, CARBURETOR COVER 2

5GH-15463-00-00

Unavailable

25

PIN, DOWEL(3VD)

99530-10114-00

$2.55

26

BOLT, SMALL FLANGE

95027-06040-00

$3.28

27

BEARING

93316-01003-00

Unavailable

28

OIL SEAL

93102-32483-00

Unavailable

29

CIRCLIP (70R)

93420-80066-00

Unavailable

30

COVER

5GH-15333-00-00

Unavailable

31

DAMPER, ENGINE MOUNT 5

5GH-15338-00-00

Unavailable

32

BOLT, HEXAGON

97017-06016-00

Unavailable

33

WASHER(6TA)

92907-06600-00

Unavailable

34

HOUSING, BEARING

5GH-15442-01-00

Unavailable

35

PIN, DOWEL

91810-20001-00

Unavailable

36

BEARING(82M)

93306-20117-00

Unavailable

37

OIL SEAL

93101-12168-00

Unavailable

38

PLATE, BEARING COVER

4WV-15381-00-00

Unavailable

39

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

40

PLUG, BLIND

5GH-15385-00-00

Unavailable

41

BOLT,SOCKET

91317-06020-00

Unavailable
