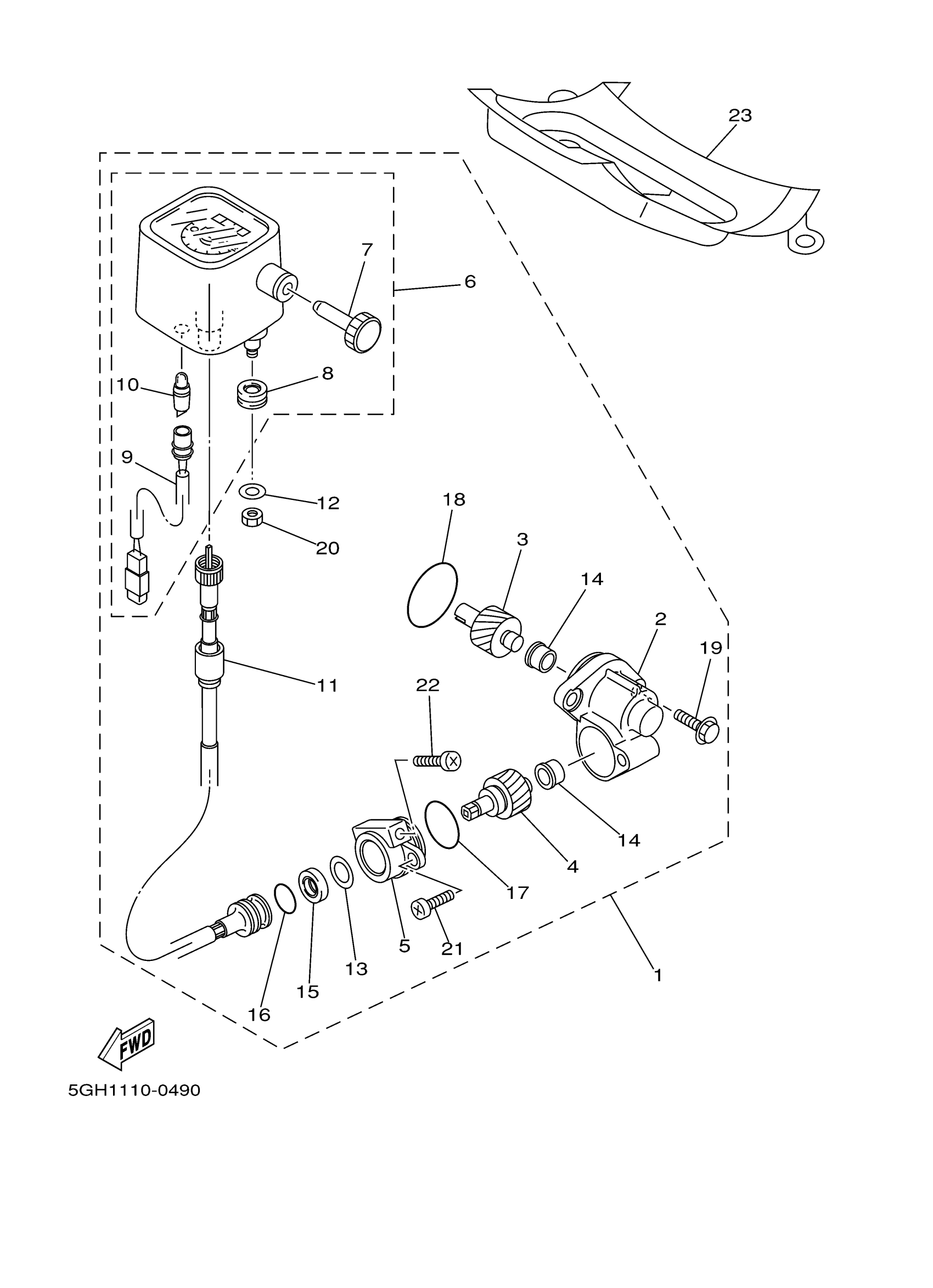

Yamaha YFM400AN (KODIAK 2WD) 5HA7 2001 ALTERNATE METER Diagram

#

Description
Price

1

SPEEDOMETER KIT

5GH-W0081-00-00

Unavailable

2

HOUSING, TACHOMETER GEAR

4WV-17811-00-00

Unavailable

3

GEAR, DRIVE

4WV-17831-00-00

$64.99

4

GEAR, DRIVEN

4WV-17841-00-00

Unavailable

5

HOUSING, TACHOMETER GEAR

59V-17811-00-00

$94.99

6

. SPEEDOMETER ASSY

5GH-83500-00-00

Unavailable

7

.. KNOB, TRIP METER

3GH-83578-00-00

Unavailable

8

DAMPER

3GH-83523-00-00

$6.99

9

.. SOCKET CORD ASSY

5GH-83520-00-00

Unavailable

10

BULB (T6.5 12V-3W)

42X-83517-00-00

$8.99

11

. SPEEDOMETER CABLE ASSY

5GH-83550-00-00

Unavailable

12

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

13

WASHER (692)

90201-12M34-00

Unavailable

14

BUSH (214-17843-00)

90381-08002-00

$11.49

15

OIL SEAL (30X)

93102-08307-00

$7.49

16

O-RING (26H)

93210-14579-00

Unavailable

17

O-RING(59V)

93210-24253-00

Unavailable

18

O-RING (341)

93210-32172-00

Unavailable

19

. BOLT, FLANGE

95027-06020-00

Unavailable

20

NUT, HEXAGON

95317-05600-00

Unavailable

21

SCREW, PAN HEAD(3TJ)

98507-06016-00

Unavailable

22

SCREW, PAN

98517-06030-00

Unavailable

23

PANEL, CONSOLE 1

5HA-2837L-10-00

Unavailable
