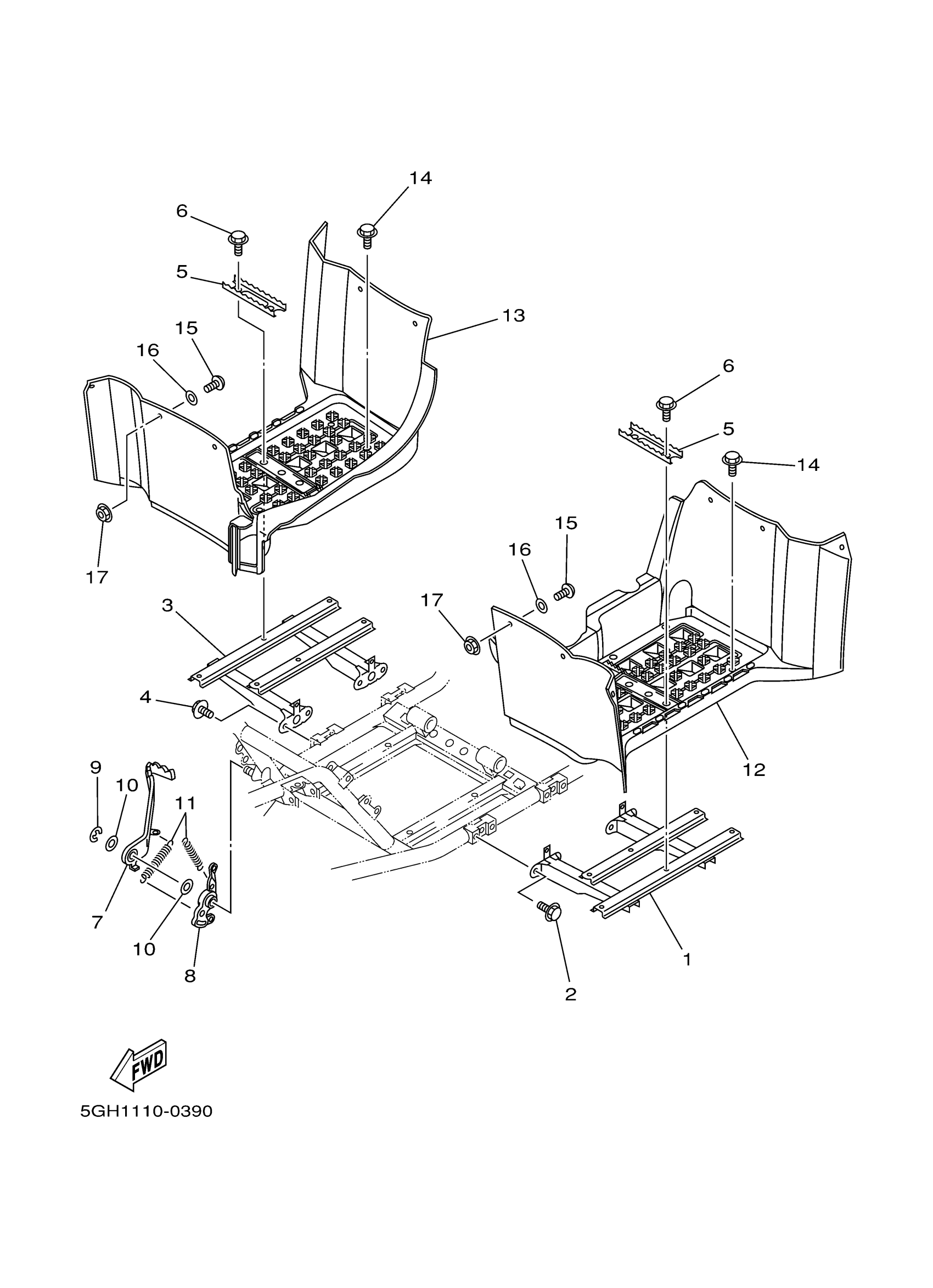

Yamaha YFM400AMC (KODIAK 2WD) 5HA2 2000 STAND FOOTREST Diagram

#

Description
Price

1

BOARD, FOOTREST

5GH-27481-00-00

Unavailable

2

BOLT, FLANGE

95817-08012-00

$5.49

3

BOARD, FOOTREST 2

5GH-27488-00-00

Unavailable

4

BOLT, FLANGE

95817-08012-00

$5.49

5

ARM 1

5GH-2741A-10-00

Unavailable

6

BOLT(3KJ)

90109-063F5-00

$9.49

7

PEDAL, BRAKE

5GH-27211-00-00

Unavailable

8

LEVER, BRAKE PEDAL

5GH-27252-00-00

Unavailable

9

CIRCLIP (137)

93430-10015-00

$9.49

10

WASHER, PLATE(52G)

90201-144J2-00

$8.49

11

SPRING, TENSION(3JN)

90506-12441-00

$8.49

12

COVER 1

5GH-27453-00-00

Unavailable

13

COVER 2

5GH-27463-00-00

Unavailable

14

BOLT(3KJ)

90109-063F1-00

$2.97

15

SCREW, BINDING (8J0)

90154-05005-00

$4.73

16

WASHER, PLATE 8067717800

90201-05029-00

Unavailable

17

NUT, NYLON

95707-05300-00

Unavailable
