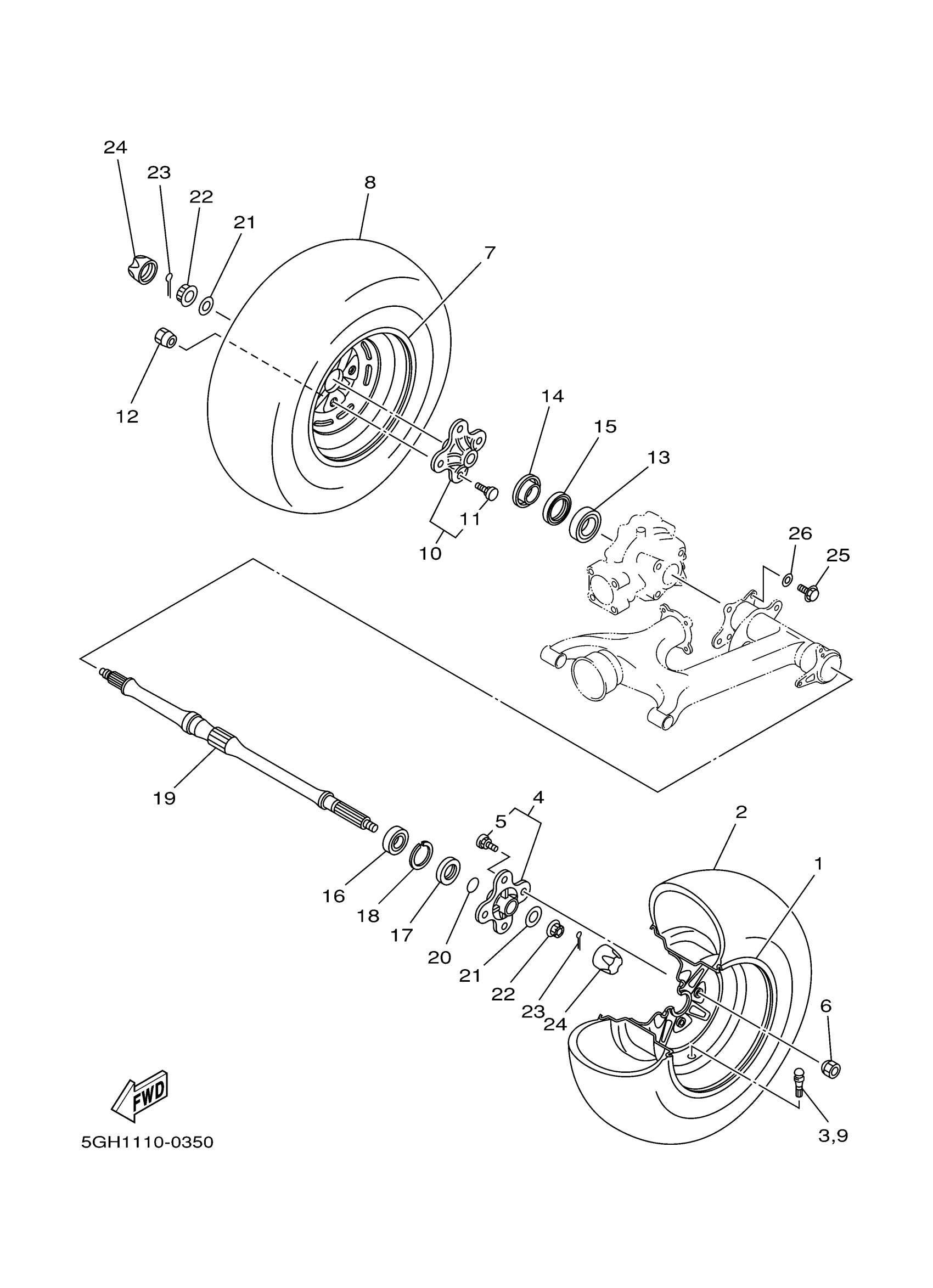

Yamaha YFM400AMC (KODIAK 2WD) 5HA2 2000 REAR WHEEL Diagram
#
Description
Price
1
WHEEL COMP. (BLACK)
5GH-25390-00-00
Unavailable
2
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
7
WHEEL COMP. (BLACK)
5GH-25390-00-00
Unavailable
8
TIRE 14 80/90 (Y-TEQ)
2C6-2510K-19-00
Unavailable
13
BEARING
93306-00809-00
Unavailable
16
BEARING(2HR)
93306-00612-00
Unavailable
17
OIL SEAL
93106-38046-00
Unavailable
18
CIRCLIP
99009-55500-00
Unavailable
19
SXLE, WHEEL
5GH-25381-01-00
Unavailable
20
O-RING(47X)
93210-27666-00
Unavailable
21
WASHER, PLATE(2HR)
90201-162L6-00
Unavailable
22
NUT, CASTLE
90171-16001-00
Unavailable
23
PIN, COTTER
91490-30030-00
Unavailable
24
CAP, WHEEL
5GT-2512A-00-00
Unavailable
25
BOLT, FLANGE(3GD)
95817-10025-00
Unavailable
26
WASHER, PLATE(47X)
90201-101J1-00
Unavailable
