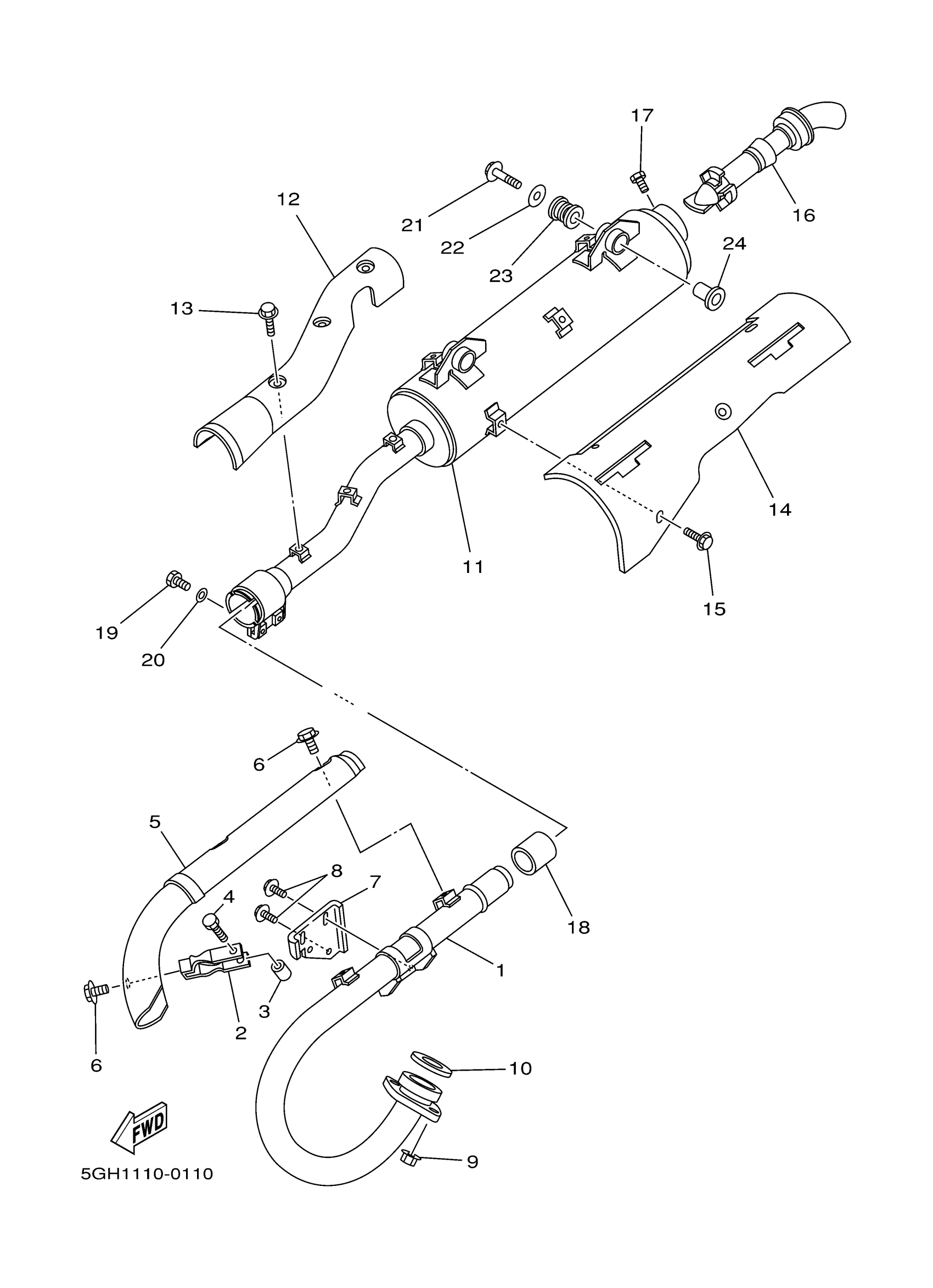

Yamaha YFM400AMC (KODIAK 2WD) 5HA2 2000 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5GH-14611-00-00

Unavailable

2

STAY, PROTECTOR

5GH-14629-00-00

Unavailable

3

SPACER (24W)

90560-06243-00

$8.49

4

BOLT, FLANGE

95817-06040-00

$5.60

5

PROTECTOR, EXHAUST PIPE

5GH-14628-10-00

Unavailable

6

BOLT, FLANGE

95817-06010-00

$4.73

7

PLATE 1

5GH-1477K-00-00

Unavailable

8

BOLT, FLANGE

95817-06016-00

$2.75

9

NUT (22U)

90179-08410-00

$9.49

10

GASKET, EXHAUST PIPE

3GD-14613-00-00

$14.49

11

MUFFLER 1

5GH-14711-01-00

$264.99

12

PROTECTOR, MUFFLER 2

5GH-14728-00-00

Unavailable

13

BOLT, FLANGE

95817-06010-00

$4.73

14

PROTECTOR, MUFFLER 1

5GH-14718-00-00

Unavailable

15

BOLT, FLANGE

95817-06008-00

$8.49

16

PIPE, OUTLET

5GH-14752-00-00

Unavailable

17

BOLT,HEXAGON

97017-06008-00

Unavailable

18

GASKET, MUFFLER

3YF-14714-00-00

Unavailable

19

BOLT, SOCKET

91317-08020-00

Unavailable

20

WASHER, PLATE(47X)

90201-086J0-00

Unavailable

21

BOLT, FLANGE

95817-10040-00

Unavailable

22

WASHER, PLATE (2H7)

90201-10669-00

Unavailable

23

DAMPER, MUFFLER

5GH-14737-00-00

Unavailable

24

COLLAR (2H7)

90387-10636-00

Unavailable
