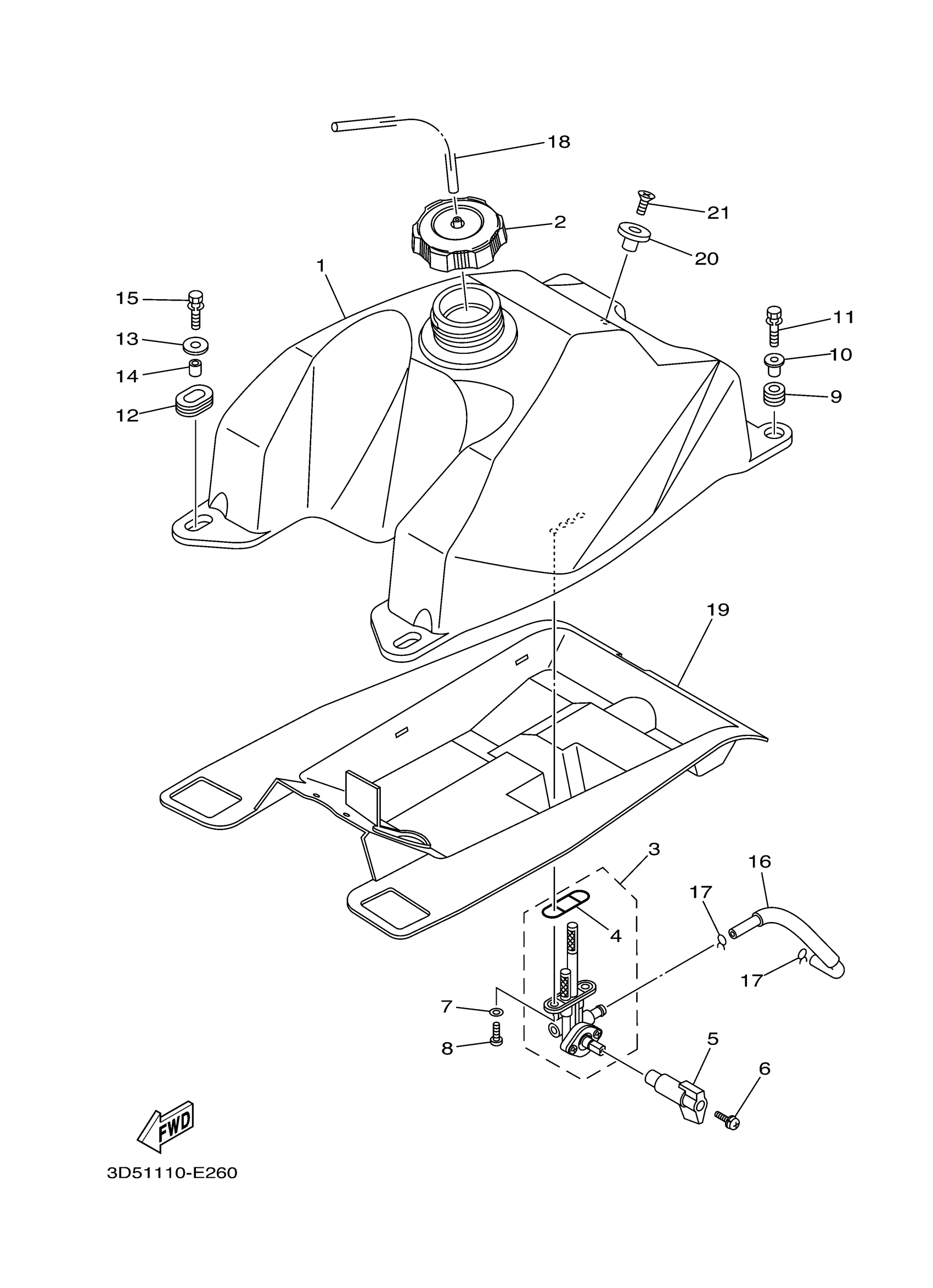

Yamaha YFM35XYL (WOLVERINE 350 2WD) 3D58 2009 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

3C2-F4110-10-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

3D5-24500-00-00

Unavailable

4

GASKET

1P6-24512-00-00

$7.99

5

LEVER, COCK

3D5-24524-00-00

Unavailable

6

SCREW, LEVER FITTING

3D5-24535-00-00

$2.08

7

WASHER, PLATE(3MB)

90202-05187-00

$1.38

8

SCREW

90149-06108-00

$1.01

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (36R)

90387-066J1-00

$8.49

11

BOLT, WITH WASHER

90119-06883-00

$4.51

12

GROMMET(38W)

90480-01400-00

$13.49

13

WASHER, PLATE

90201-06090-00

$5.60

14

COLLAR (1T2)

90387-07598-00

$5.60

15

BOLT, WITH WASHER

90119-06883-00

$4.51

16

PIPE, FUEL 1

5UH-24311-00-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

HOSE

90445-088C5-00

Unavailable

19

DAMPER, PLATE 1

5UH-F414H-01-00

Unavailable

20

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

21

SCREW, CROSSRECESS (8G6)

90151-06005-00

Unavailable
