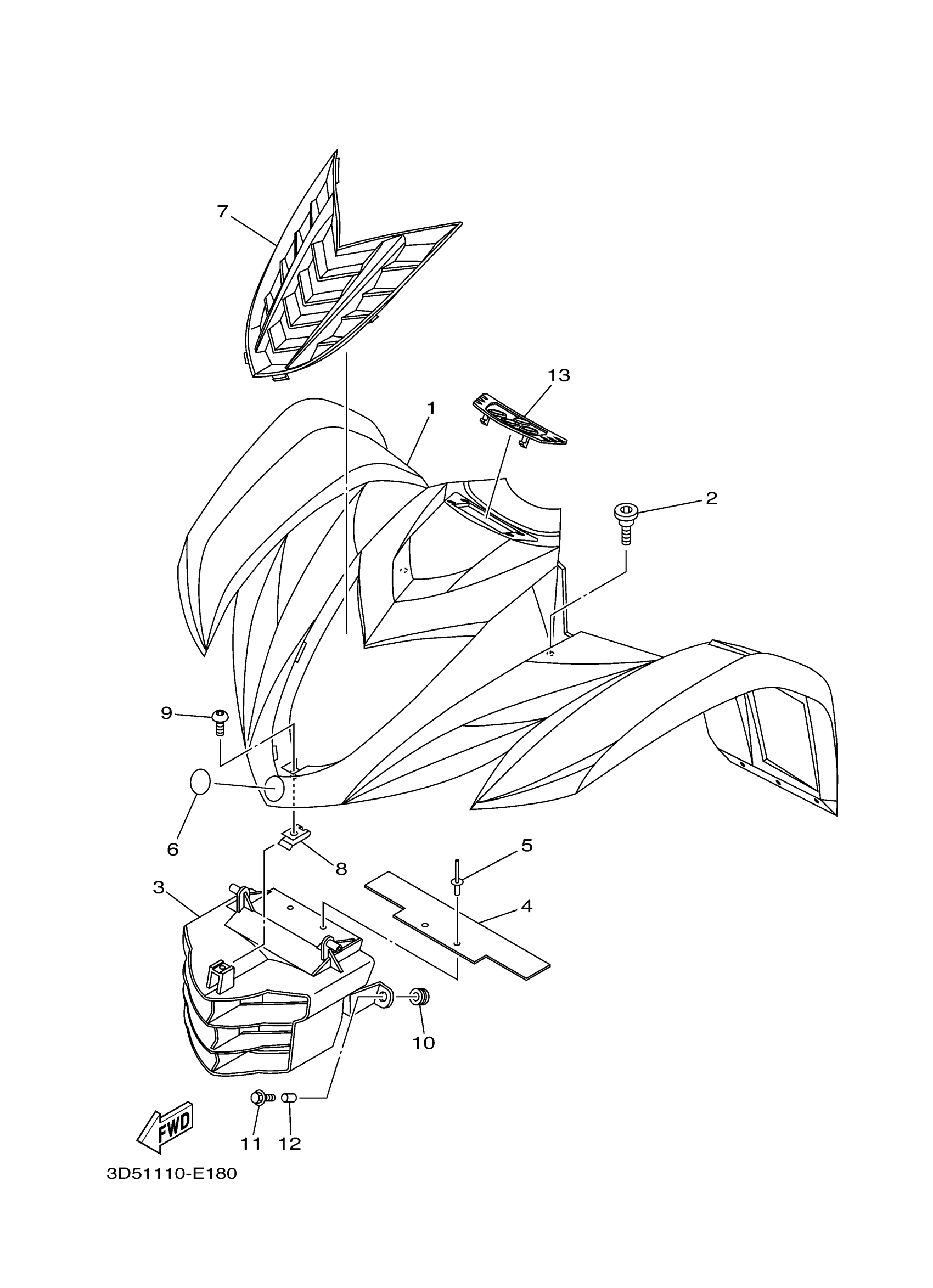

Yamaha YFM35XYL (WOLVERINE 350 2WD) 3D58 2009 FRONT FENDER Diagram

#

Description
Price

1

FRONT FENDER ASSY

3C2-F1500-90-00

Unavailable

2

BOLT

90109-08077-00

$2.69

3

GRILLE, FRONT

3C2-F8309-00-00

Unavailable

4

DEFLECTOR 1

3D5-F4131-00-00

Unavailable

5

RIVET

90269-08813-00

$0.50

6

TUNING FORK MARK

3C2-F836B-00-00

Unavailable

7

FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

3C2-F1556-A0-00

Unavailable

8

NUT, SPRING

90183-050A8-00

Unavailable

9

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.00

10

GROMMET(2GH)

90480-12475-00

$6.22

11

BOLT, FLANGE

95822-06025-00

$1.37

12

COLLAR (1T2)

90387-07598-00

$4.51

13

PANEL, CONSOLE 1

3D5-F837L-00-00

Unavailable
