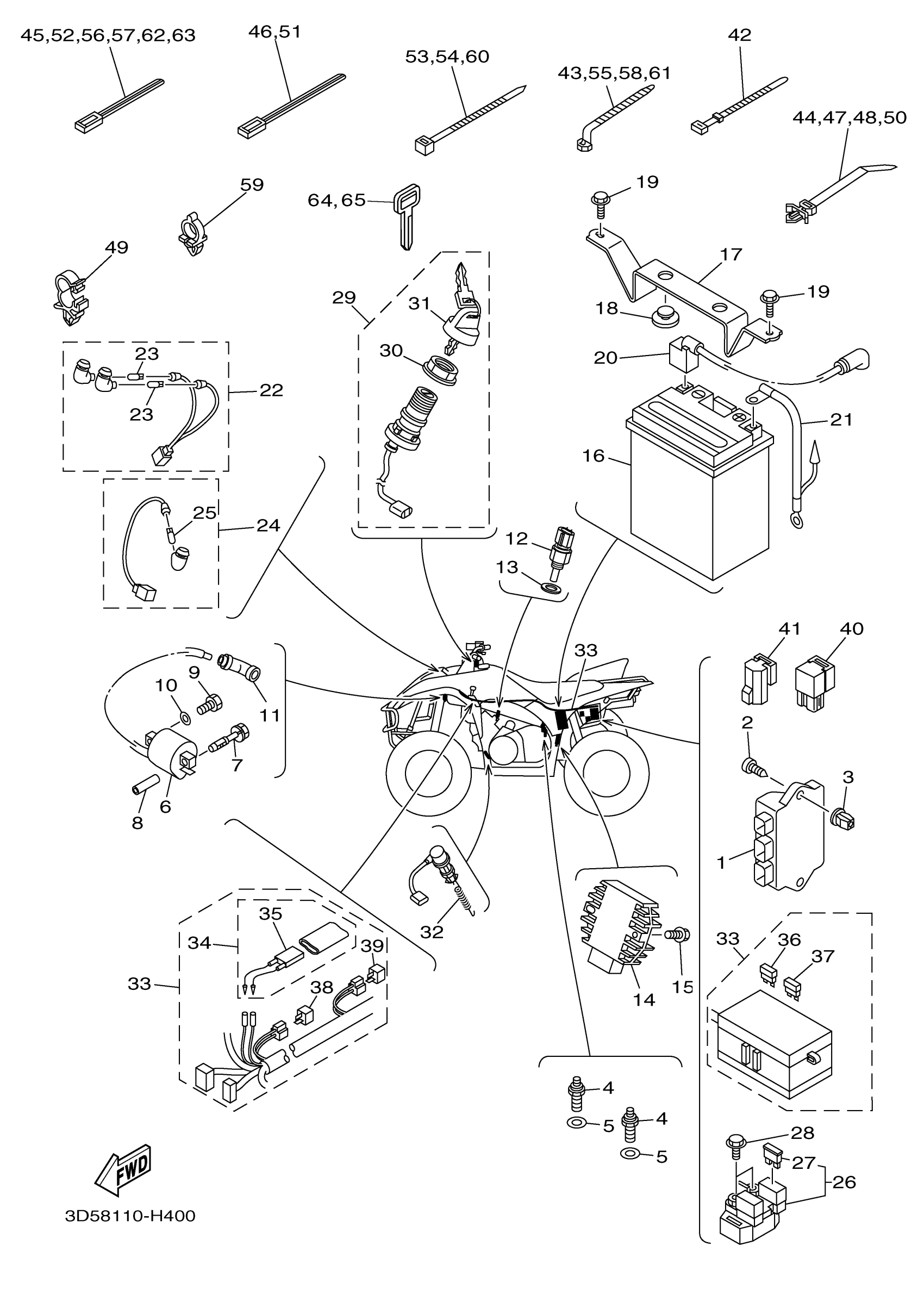

Yamaha YFM35XYL (WOLVERINE 350 2WD) 3D58 2009 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5UH-85540-00-00

$557.99

2

SCREW, TAPPING

97702-60420-00

$0.64

3

PLUG(4BP)

90338-08226-00

$2.17

4

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

5

GASKET (1KH,1.0T)

90430-10148-00

$5.60

6

IGNITION COIL ASSY

5KM-82310-03-00

$46.99

7

BOLT

90109-06865-00

Unavailable

8

SPACER

5UH-H1318-00-00

Unavailable

9

BOLT, HEXAGON

97017-06020-00

$4.06

10

WASHER, PLAIN (646)

92990-06600-00

$2.80

11

PLUG CAP ASSY

3NS-82370-00-00

$37.99

12

THERMO UNIT

4GB-83591-10-00

$180.99

13

WASHER, PLATE 3412175700

90201-12172-00

$3.93

14

RECTIFIER & REGULATOR ASSY

5GT-81960-00-00

$261.99

15

BOLT, FLANGE

95817-06020-00

$3.81

16

YTX14AHBS YUASA BATTERY - SA

YTX-14AHB-S0-00

Unavailable

17

BRACKET, BATTERY

5TE-H2128-01-00

Unavailable

18

PAD, BATTERY

371-82121-00-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

$3.81

20

WIRE, PLUS LEAD

3D5-H2115-00-00

Unavailable

21

WIRE, MINUS LEAD

5UH-H2116-00-00

Unavailable

22

PILOT LIGHT ASSY

5TE-83530-00-00

Unavailable

23

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

24

PILOT LIGHT ASSY

4KB-83530-31-00

Unavailable

25

BULB (12V-1.7W)

3FV-83517-00-00

Unavailable

26

STARTER RELAY ASSY (RC19-026)

4XE-81940-12-00

Unavailable

27

FUSE (20A)

2GV-82151-00-00

Unavailable

28

BOLT, FLANGE

95022-06008-00

Unavailable

29

MAIN SWITCH ASSY

5LP-82510-01-00

Unavailable

30

NUT, MAIN SWITCH

3HN-82569-00-00

Unavailable

31

CAP, KEY

3HN-82579-00-00

Unavailable

32

STOP SWITCH ASSY

4KB-82530-11-00

Unavailable

33

WIRE HARNESS ASSY

3D5-82590-00-00

Unavailable

34

CIRCUIT BREAKER ASSY

5ND-82180-00-00

Unavailable

35

THERMO SWITCH ASSY

5ND-82560-00-00

Unavailable

36

FUSE (15A)

67F-82151-50-00

Unavailable

37

. FUSE (10A)

67F-82151-40-00

Unavailable

38

DIODE ASSY

3WP-81980-00-00

Unavailable

39

DIODE ASSY

4WA-81980-00-00

Unavailable

40

RELAY ASSY

5DM-81950-01-00

Unavailable

41

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

42

CLAMP

90464-51800-00

Unavailable

43

CLAMP

90464-12830-00

Unavailable

44

CLAMP

90464-25800-00

Unavailable

45

CLAMP(JN6)

90464-31827-00

Unavailable

46

CLAMP(JN6)

90464-40825-00

Unavailable

47

CLAMP

90464-25800-00

Unavailable

48

CLAMP

90464-25800-00

Unavailable

49

CLAMP

90464-16006-00

Unavailable

50

CLAMP

90464-25800-00

Unavailable

51

CLAMP(JN6)

90464-40825-00

Unavailable

52

CLAMP(JN6)

90464-31827-00

Unavailable

53

CLAMP

90464-48800-00

Unavailable

54

CLAMP

90464-48800-00

Unavailable

55

CLAMP

90464-12830-00

Unavailable

56

CLAMP(JN6)

90464-31827-00

Unavailable

57

CLAMP(JN6)

90464-31827-00

Unavailable

58

CLAMP

90464-12830-00

Unavailable

59

CLAMP

90464-12830-00

Unavailable

60

CLAMP

90464-48800-00

Unavailable

61

CLAMP

90464-12830-00

Unavailable

62

CLAMP(JN6)

90464-31827-00

Unavailable

63

CLAMP(JN6)

90464-31827-00

Unavailable

64

KEY, BLANK (A-TYPE)

90890-56001-00

Unavailable

65

KEY, BLANK (B-TYPE)

90890-56002-00

Unavailable
