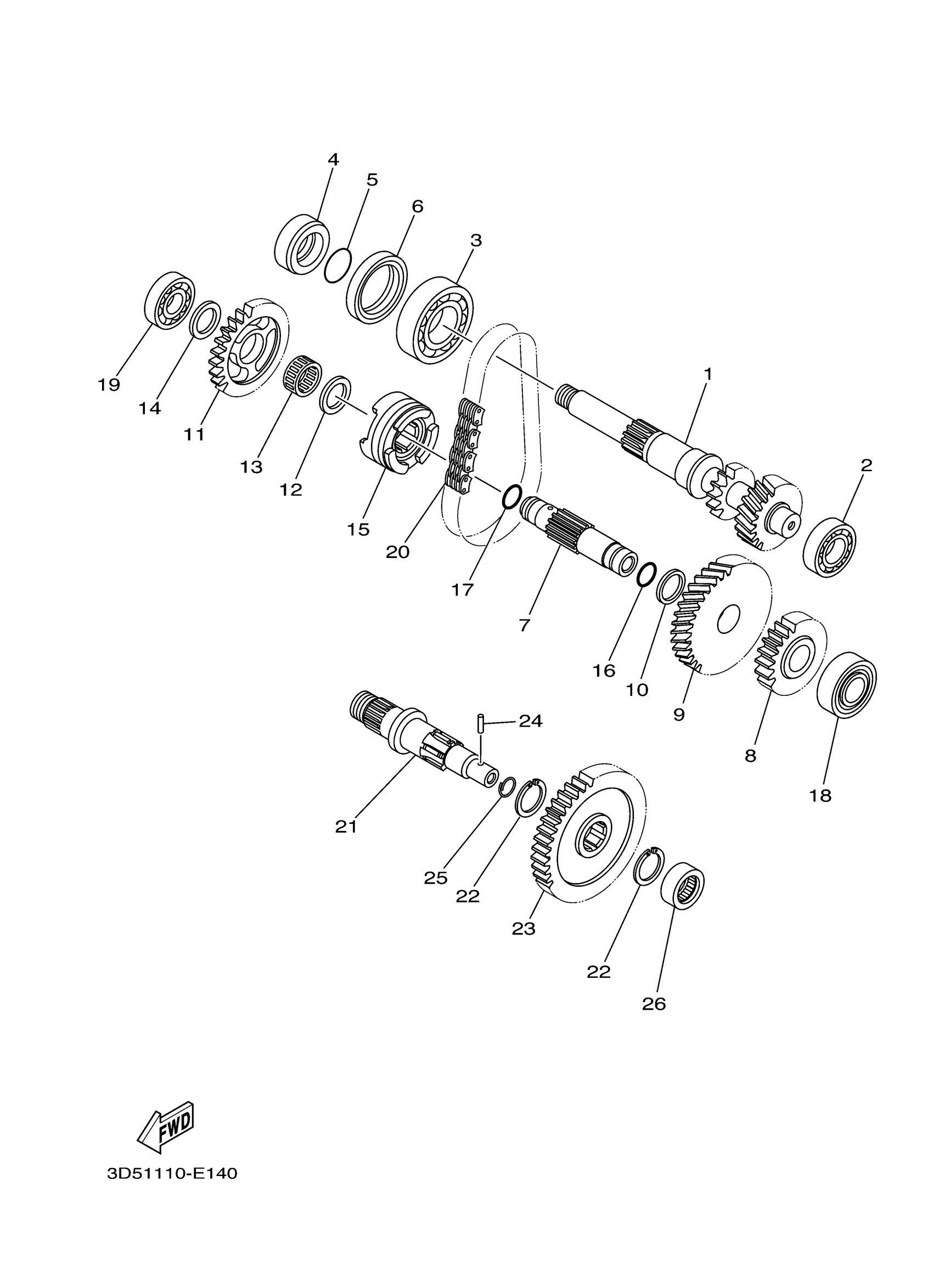

Yamaha YFM35XV (WOLVERINE 350 2WD) 3D51 2006 TRANSMISSION Diagram

#

Description
Price

1

SHAFT, SECONDARY

5UH-17681-20-00

Unavailable

2

BEARING (5Y1)

93306-00426-00

$42.99

3

BEARING (5X5)

93306-20627-00

$75.99

4

COLLAR

90387-26001-00

$40.99

5

O-RING

93210-26001-00

$5.60

6

OIL SEAL

93102-42004-00

$30.99

7

AXLE, DRIVE

5UH-17421-10-00

$90.99

8

GEAR, MIDDLE DRIVE (21T)

5UH-17582-10-00

Unavailable

9

GEAR, HIGH WHEEL

5UH-17223-10-00

$101.99

10

WASHER, PLATE(8CJ)

90201-210U0-00

$10.49

11

SPROCKET, DRIVEN

5UH-17453-00-00

$34.99

12

WASHER PLATE 168171160000

90201-20278-00

$10.49

13

. BEARING

93310-420F2-00

Unavailable

14

WASHER, PLATE

90201-17013-00

$5.60

15

CLUTCH, DOG

5UH-17285-00-00

Unavailable

16

. O-RING

93210-17003-00

Unavailable

17

O-RING (583 VALVE GUIDE)

93210-14299-00

Unavailable

18

BEARING(3LD)

93306-20464-00

Unavailable

19

BRG,R-B 6203 42MM 70G KY

93306-20306-00

Unavailable

20

CHAIN

94591-54034-00

Unavailable

21

SHAFT

5UH-17523-00-00

Unavailable

22

CIRCLIP (4L0)

93440-25084-00

Unavailable

23

GEAR, MIDDLE DRIVEN

5UH-17583-00-00

Unavailable

24

PIN, DOWEL(3HN)

93603-14240-00

Unavailable

25

CIRCLIP(59V)

93440-14155-00

Unavailable

26

BEARING

93311-42077-00

Unavailable
