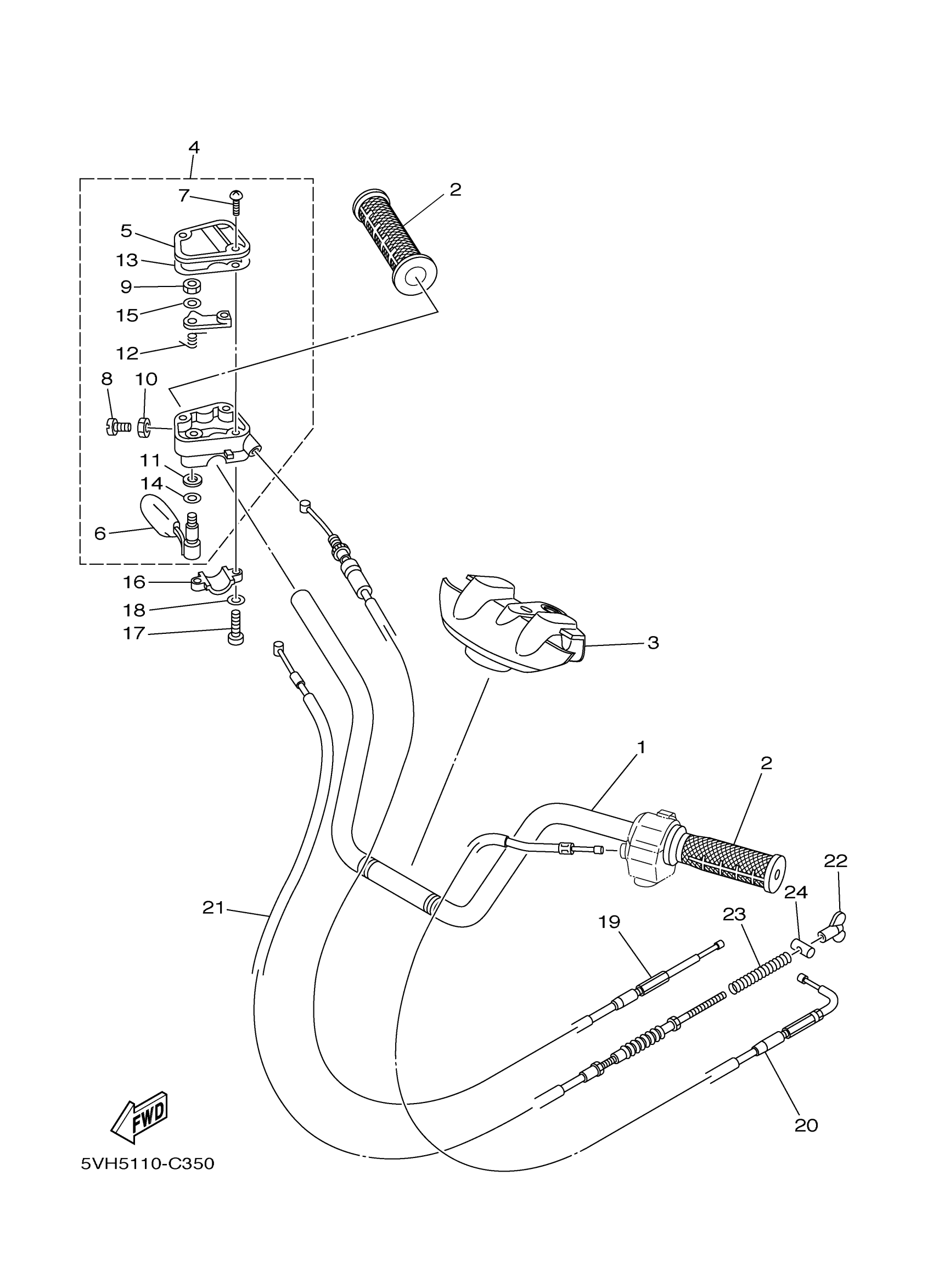

Yamaha YFM35XV (WOLVERINE 350 2WD) 3D51 2006 STEERING HANDLE CABLE Diagram

#

Description
Price

1

HANDLE BAR

3C2-F6111-00-00

Unavailable

2

GRIP

5FU-F6241-10-00

$17.49

3

PROTECTOR,HANDLEBAR

5ND-F6124-01-00

$46.99

4

THROTTLE LEVER ASSY

4KB-26250-12-00

$122.99

5

CAP, GEAR

4KB-2628F-10-00

$30.99

6

LEVER, THROTTLE

1NV-2625G-02-00

Unavailable

7

SCREW(3HE)

90149-04278-00

$2.39

8

SCREW, PAN HEAD

98517-05020-00

$4.25

9

NUT, U

95617-05100-00

$9.49

10

NUT, HEXAGON SMALL

95317-05700-00

$8.49

11

OIL SEAL (9X15X4-256)

93104-09025-00

$7.49

12

SPRING

1NV-26304-00-00

$11.99

13

GASKET

4KB-2628G-00-00

$13.49

14

WASHER

1NV-26129-00-00

$6.99

15

. WASHER, SPECIAL

53L-83909-00-00

Unavailable

16

HOLDER, LEVER LOWER

4V4-82913-00-00

Unavailable

17

SCREW, PAN HEAD

98517-05020-00

$4.25

18

WASHER(1RW)

92907-05600-00

Unavailable

19

CABLE, THROTTLE 1

5GH-26311-11-00

Unavailable

20

CABLE, STARTER 1

3C2-F6331-00-00

Unavailable

21

CABLE, BRAKE

3D5-26341-00-00

Unavailable

22

NUT, AJUSTING

20E-26343-00-00

Unavailable

23

SPRING, COMPRESSION (29U)

90501-10782-00

Unavailable

24

PIN 1562723700

90249-12008-00

Unavailable
