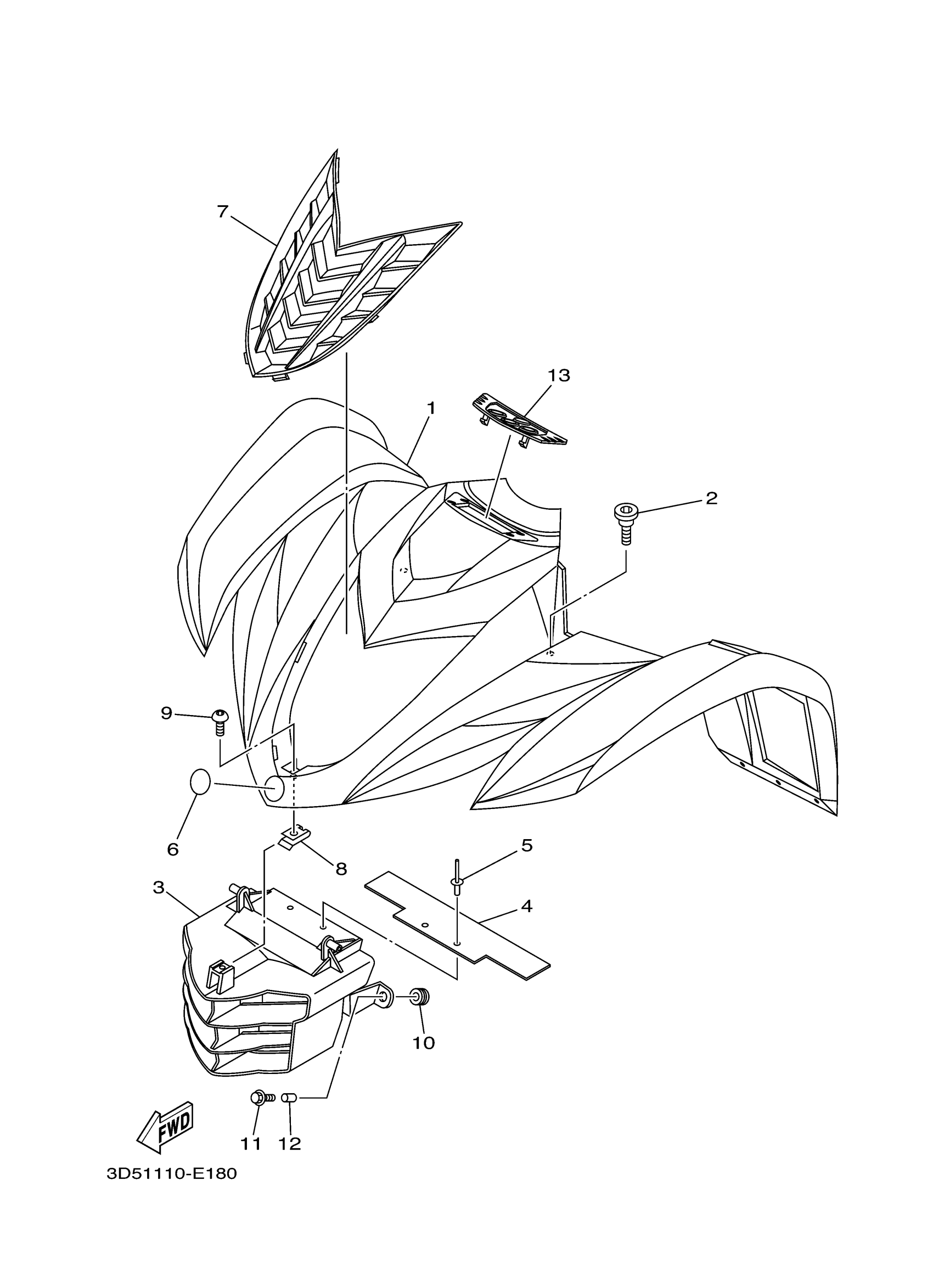

Yamaha YFM35XV (WOLVERINE 350 2WD) 3D51 2006 FRONT FENDER Diagram

FRONT FENDER ASSY

3C2-F1500-90-00

Unavailable

FRONT FENDER ASSY (BLUISH WHITE SOLID 1)

3C2-F1500-10-00

Unavailable

BOLT

90109-08077-00

$8.49

GRILLE, FRONT

3C2-F8309-00-00

Unavailable

DEFLECTOR 1

3D5-F4131-00-00

Unavailable

RIVET

90269-08813-00

Unavailable

TUNING FORK MARK

4KN-2836B-10-00

$18.49

FENDER, FRONT 2 (DEEP PURPLISH BLUE SOLID E)

3C2-F1556-30-00

Unavailable

FENDER, FRONT 2 (BLUISH WHITE SOLID 1)

3C2-F1556-70-00

Unavailable

NUT, SPRING

90183-05008-00

$9.49

BOLT,HEX. SOCKET BUTTON

90111-05059-00

$2.12

GROMMET(2GH)

90480-12475-00

$8.49

BOLT, FLANGE

95817-06025-00

Unavailable

COLLAR (1T2)

90387-07598-00

$5.60

PANEL, CONSOLE 1

3D5-F837L-00-00

Unavailable
