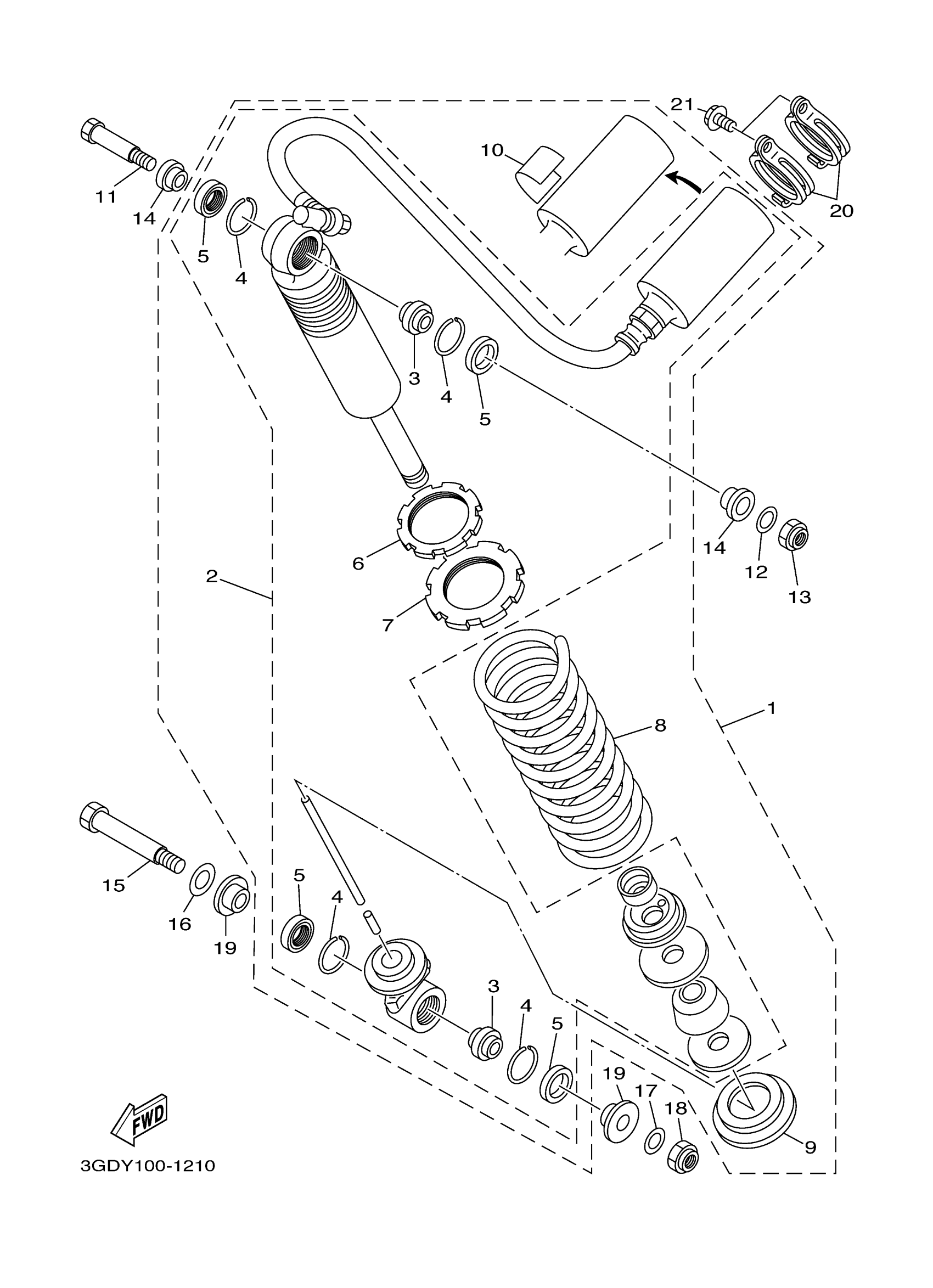

Yamaha YFM35XSC (WARRIOR) 5NFC 2004 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

2XK-22210-12-35

Unavailable

1

SHOCK ABSORBER ASSY, REAR

2XK-22210-12-36

Unavailable

2

DAMPER SUB ASSY

2XK-22201-02-00

Unavailable

3

BEARING(4GG)

93399-999T3-00

$62.99

4

CIRCLIP (23X)

93440-30113-00

$1.70

5

OIL SEAL (23X)

93104-18077-00

$11.49

6

RING, COVER

1RK-22215-00-00

$24.99

7

SEAT, SPRING LOWER

38W-22223-00-00

$58.99

8

. SPRING

38W-22212-10-35

Unavailable

8

SPRING

38W-22212-10-36

Unavailable

9

GUIDE, SPRING 1

3P6-22214-10-00

$17.49

10

LABEL, WARNING

4AA-22259-80-00

$13.49

11

BOLT

90109-10704-00

Unavailable

12

WASHER (7A9)

90201-100F7-00

$9.49

13

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

14

COLLAR (23X)

90387-127G8-00

Unavailable

15

BOLT(38W)

90109-102A6-00

Unavailable

16

WASHER, PLATE

90201-12027-00

Unavailable

17

WASHER, PLATE(6TC)

90201-10M05-00

Unavailable

18

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

19

COLLAR (23X)

90387-126H8-00

Unavailable

20

HOLDER, SUB TANK

1UY-22262-00-00

Unavailable

21

BOLT, FLANGE

95817-06016-00

Unavailable
