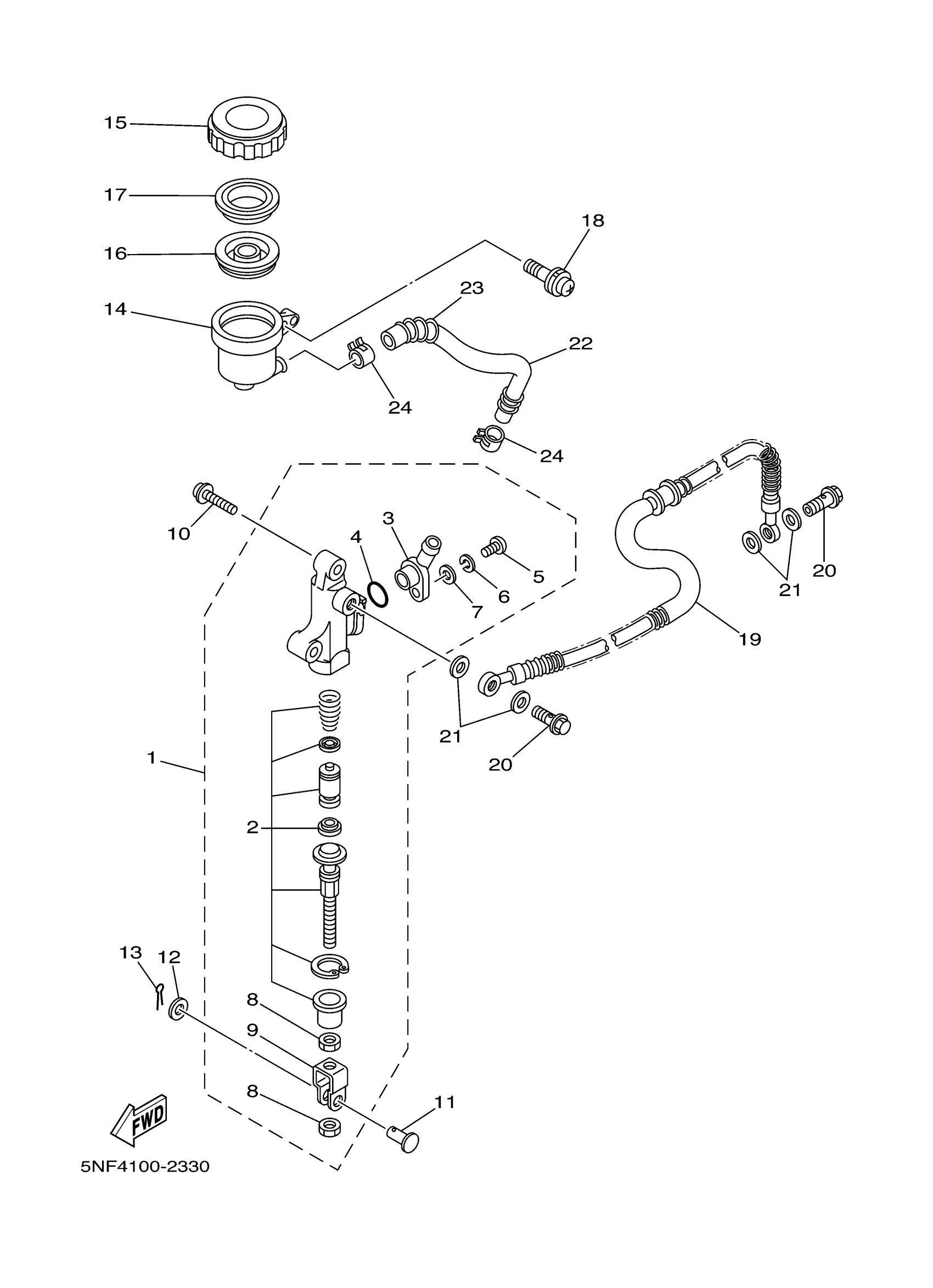

Yamaha YFM35XSC (WARRIOR) 5NFC 2004 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

3GD-2583V-10-00

Unavailable

2

CYLINDER KIT, MASTER

3GD-W0042-50-00

$82.99

3

CONNECTOR

29L-2582A-50-00

Unavailable

4

O-RING (22U)

93210-15566-00

$7.49

5

SCREW, PAN HEAD

98517-04012-00

$3.88

6

WASHER(6TA)

92907-04100-00

$8.49

7

WASHER(JF2)

92907-04600-00

$1.71

8

NUT, HEXAGON SMALL

95317-08700-00

$9.49

9

JOINT

2YK-27222-00-00

$21.99

10

BOLT, BUTTON

92017-08030-00

$9.49

11

PIN W/HOLE 307181180000

90240-08013-00

$8.49

12

WASHER, PLATE 1562722600

90201-08083-00

$9.49

13

PIN, COTTER

91490-16020-00

Unavailable

14

TANK, RESERVOIR

47X-25894-00-00

Unavailable

15

CAP, RESERVOIR

2KF-25852-50-00

$47.99

16

DIAPHRAGM, RESERVER

360-25854-01-00

Unavailable

17

BUSH,DIAPHRAGM

2GU-25855-00-00

Unavailable

18

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

19

. HOSE, BRAKE

3GD-25874-02-00

Unavailable

20

BOLT, UNION(3GM)

90401-10159-00

Unavailable

21

WASHER, PLATE(481)

90201-10118-00

Unavailable

22

HOSE, RESERVOIR

1UY-25895-00-00

Unavailable

23

SPRING, COMPRESSION

90501-102E8-00

Unavailable

24

CLIP (5K4)

90467-14057-00

Unavailable
