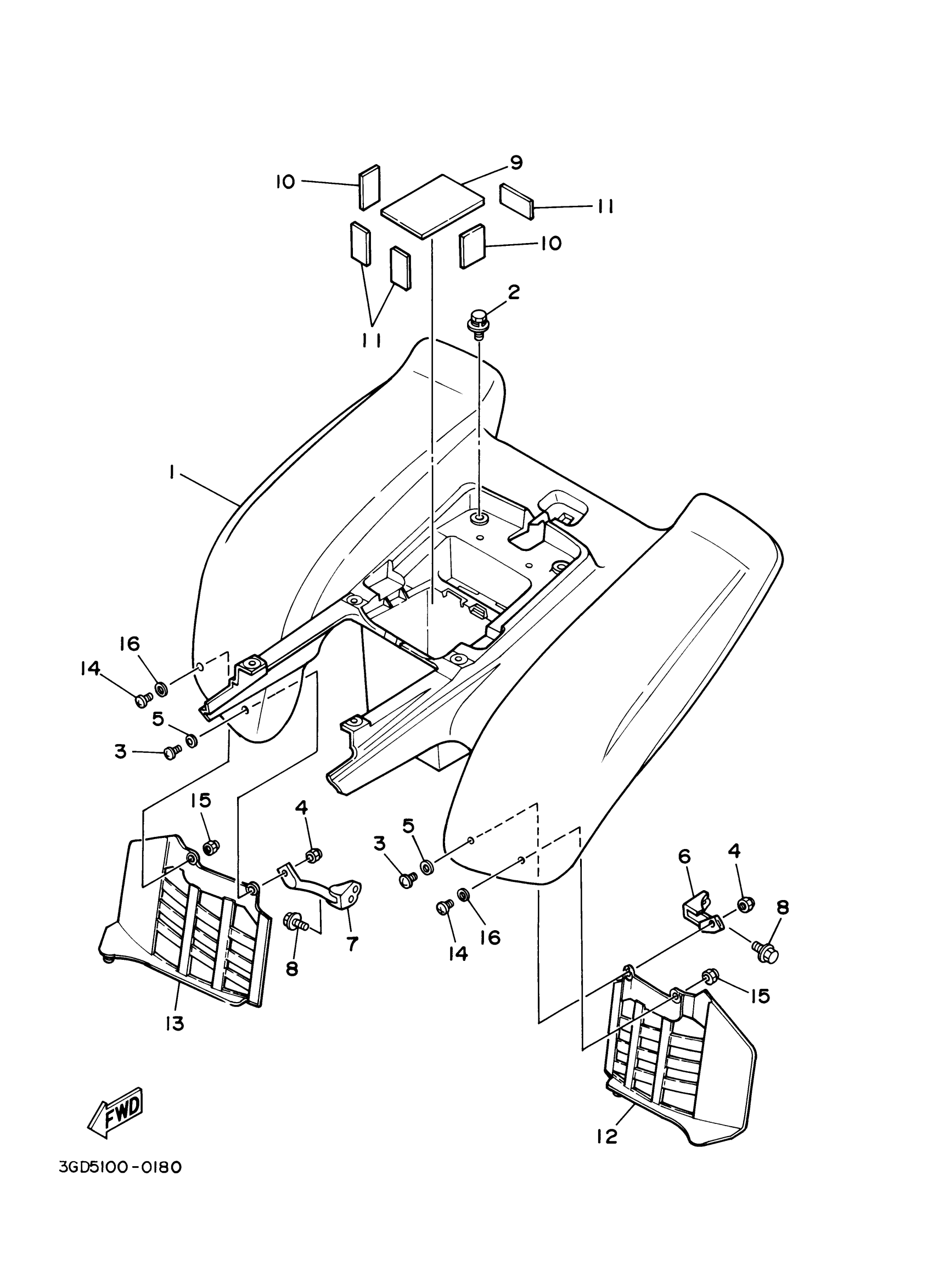

Yamaha YFM35XSC (WARRIOR) 5NFC 2004 REAR FENDER Diagram

REAR FENDER COMP. (DEEP PURPLISH BLUE SOLID E)

3GD-W2161-F1-00

Unavailable

REAR FENDER COMP. (BLUISH WHITE SOLID 1)

3GD-W2161-H0-00

Unavailable

BOLT, WITH WASHER

90119-06152-00

$7.49

SCREW, ROUND HEAD(3JM)

90150-06037-00

$9.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

WASHER(6TA)

92907-06200-00

$8.49

STAY, FENDER 1

1UY-21613-00-00

$55.99

STAY, FENDER 2

1UY-21614-00-00

Unavailable

BOLT, FLANGE

95817-06010-00

$4.73

DAMPER 2

1UY-21639-00-00

$7.99

DAMPER 1

1UY-21638-00-00

$7.99

DAMPER 1

1UY-21638-00-00

$7.99

FLAP

3GD-21691-00-00

Unavailable

FLAP

3GD-21621-00-00

Unavailable

SCREW(3JM)

90149-06306-00

$8.49

NUT, SELF-LOCKING

95617-06100-00

$8.49

WASHER(6TA)

92907-06200-00

$8.49
