Description

Price

1

FUEL TANK COMP.

1UY-24110-01-00

Unavailable

2

CAP ASSY

5KM-24610-00-00

$61.99

3

FUEL COCK ASSY 1

21V-24500-20-00

$51.99

4

SEAL, COCK

3AJ-24534-01-00

$10.99

5

SCREW, PAN HEAD (J10)

98580-03008-00

$3.55

6

O-RING

4X8-24512-00-00

$8.99

7

VALVE PACKING

3AC-24523-00-00

$12.99

8

SCREW 256241430000

90149-06011-00

$5.60

9

GROMMET (4V1)

90480-18290-00

$8.49

10

COLLAR (29U)

90387-066H4-00

$8.49

11

BOLT, HEXAGON

97017-06030-00

$3.61

12

WASHER, SPRING

92907-06100-00

$4.25

13

GROMMET(38W)

90480-01400-00

$13.49

14

WASHER, PLATE

90201-06090-00

$5.60

15

COLLAR (1T2)

90387-07598-00

$5.60

16

BOLT, WITH WASHER (24X)

90119-06073-00

Unavailable

17

HOSE (L400)

90445-116K9-00

Unavailable

18

CLIP

90467-100A1-00

Unavailable

19

HOSE (L600)

90445-083J5-00

Unavailable

20

DAMPER, PLATE 1

1UY-2414H-00-00

Unavailable

21

DAMPER, LOCATING 1

3GD-24181-00-00

Unavailable

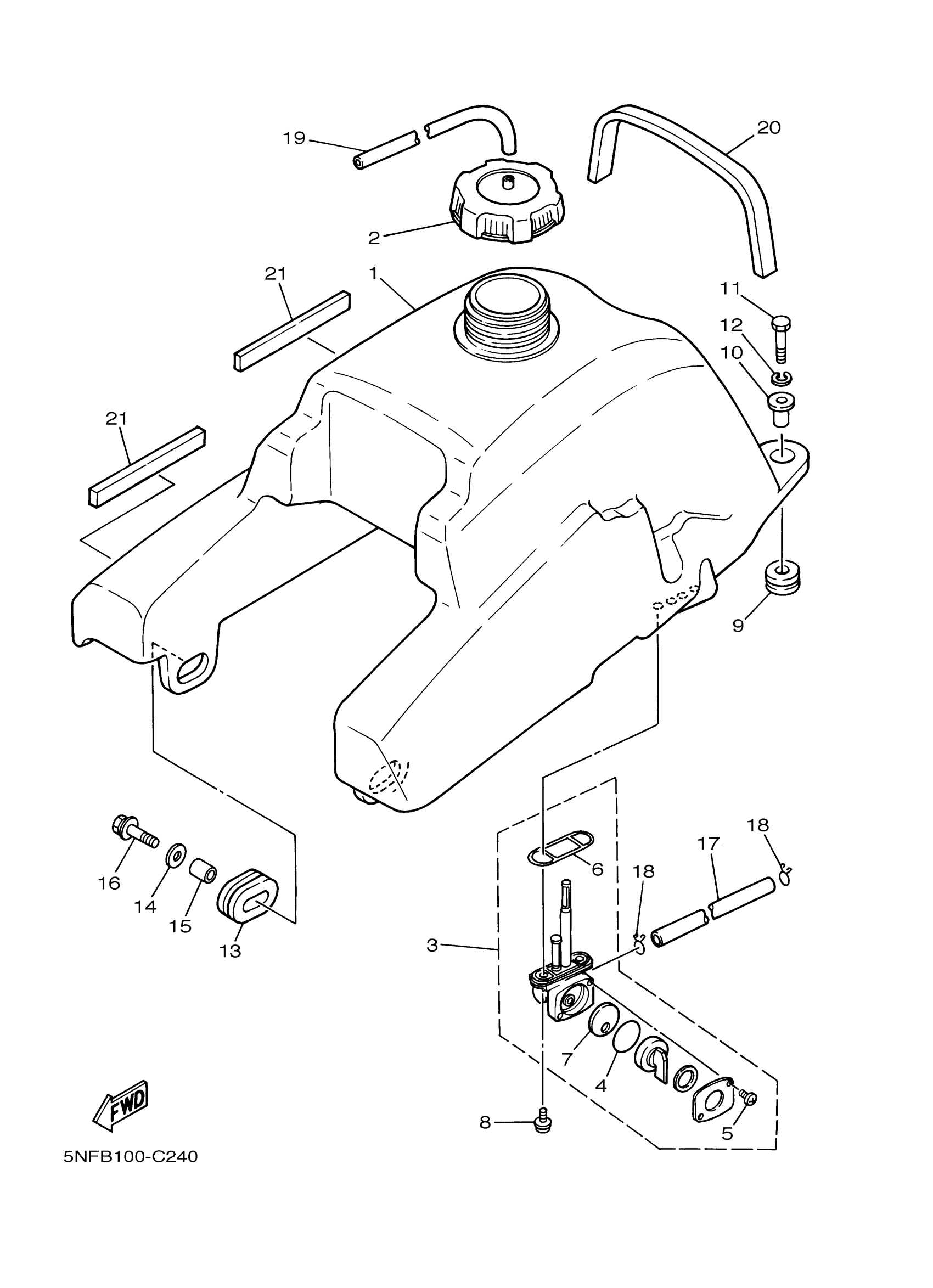

Yamaha YFM35XSC (WARRIOR) 5NFC 2004 FUEL TANK Diagram

FUEL TANK COMP.

CAP ASSY

FUEL COCK ASSY 1

SEAL, COCK

SCREW, PAN HEAD (J10)

O-RING

VALVE PACKING

SCREW 256241430000

GROMMET (4V1)

COLLAR (29U)

BOLT, HEXAGON

WASHER, SPRING

GROMMET(38W)

WASHER, PLATE

COLLAR (1T2)

BOLT, WITH WASHER (24X)

HOSE (L400)

CLIP

HOSE (L600)

DAMPER, PLATE 1

DAMPER, LOCATING 1
