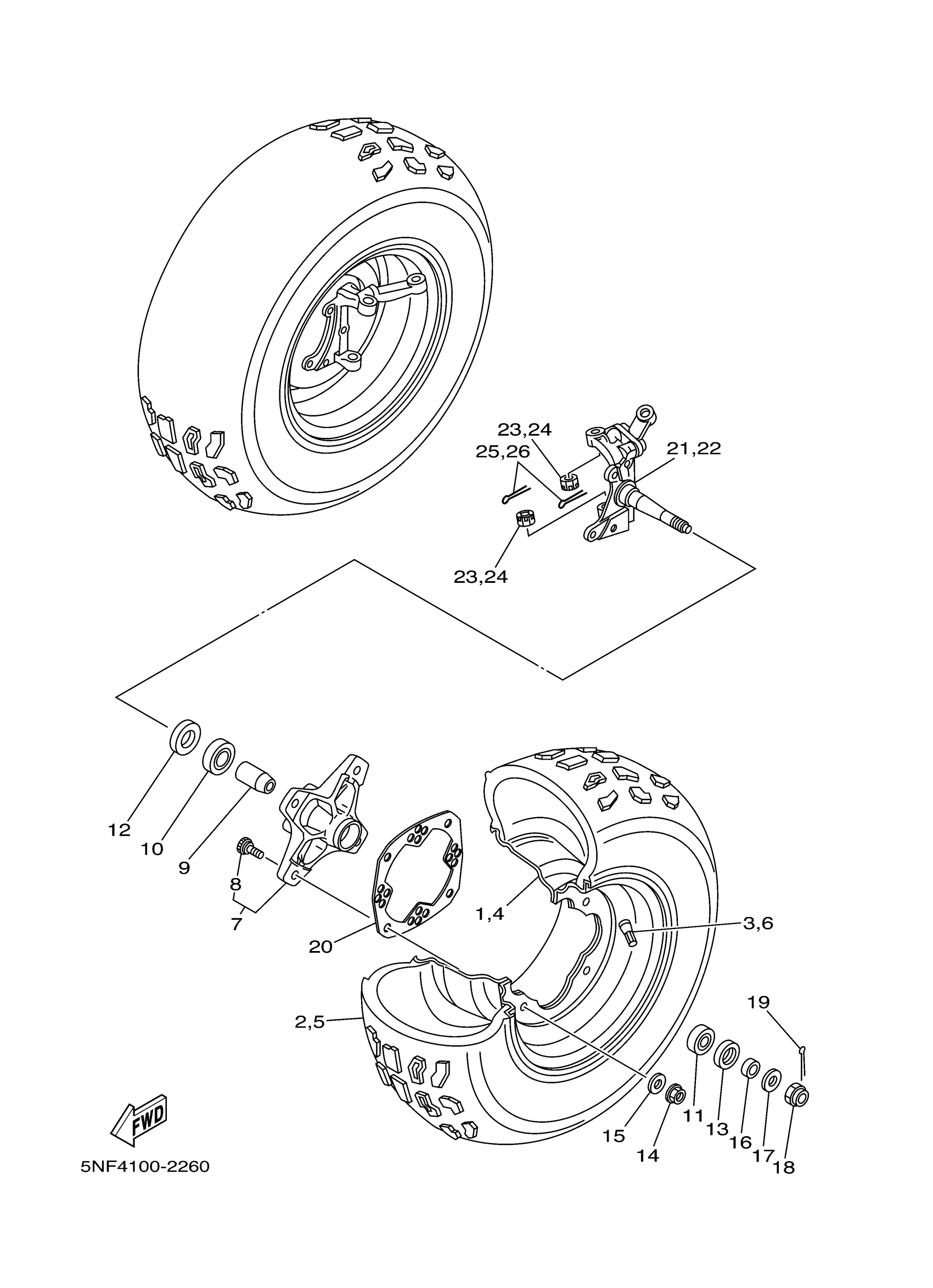

Yamaha YFM35XSC (WARRIOR) 5NFC 2004 FRONT WHEEL Diagram

#

Description
Price

1

WHEEL COMP.

2XK-25180-12-YY

Unavailable

2

TIRE (AT22X7-10 KT701)

94107-102Y4-00

Unavailable

3

VALVE, RIM(2GH)

93900-00030-00

$16.99

4

WHEEL COMP.

2XK-25180-12-YY

Unavailable

5

TIRE (AT22X7-10 KT701)

94107-102Y4-00

Unavailable

6

VALVE, RIM(2GH)

93900-00030-00

$16.99

7

HUB, FRONT

3GD-25111-01-00

Unavailable

8

BOLT (38W)

90114-10007-00

$5.60

9

SPACER, BEARING

1UY-25117-00-00

$28.99

10

BEARING(3BN)

93306-00438-00

$37.99

10

BEARING(3BN)

93306-00438-00

$37.99

11

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

12

OIL SEAL(1UY)

93105-26026-00

$12.49

13

OIL SEAL (7H5)

93102-22216-00

$11.49

14

NUT, FLANGE(8AB)

95707-10500-00

$3.18

15

WASHER, PLAIN(3BM)

92907-10200-00

Unavailable

16

COLLAR(1UY)

90387-150R1-00

Unavailable

17

WASHER PLATE 248181370000

90201-14220-00

Unavailable

18

NUT, CASTLE(2UJ)

90171-14056-00

Unavailable

19

PIN, COTTER

91401-30025-00

Unavailable

20

COVER, PLATE

3GD-25127-10-00

Unavailable

21

STEERING KNUCKLE ASSY (LEFT)

3GD-23501-10-00

Unavailable

22

STEERING KNUCKLE ASSY (RIGHT)

3GD-23502-10-00

Unavailable

23

NUT, CASTLE

90171-10001-00

Unavailable

24

NUT, CASTLE

90171-10001-00

Unavailable

25

PIN, COTTER

91490-20025-00

Unavailable

26

PIN, COTTER

91490-20025-00

Unavailable
